Xerox Phaser 3330 Service Manual

General Information
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
1-28
Fuser
The Fuser consists of a halogen lamp, heat roller, pressure roller, thermistor and thermostat. It sticks
the toner on a paper by heat and pressure to complete the printing job.
•Thermostat
When the heat lamp overheats, the Thermostat cuts off the AC power to the Halogen Lamp to
prevent over- heating.
– Thermostat Type: Non- Contact type THERMOSTAT
–Control Temperature: 190
°C ± 5° C (374°F ±10° F)
•Thermistor
The Thermistor is a temperature detecting sensor.
– Temperature Resistance: 7k ohms 180
°C (356° F)
• Heat roller
The heat roller transfers the heat from the lamp to apply heat on the paper.
The surface of the heat roller is coated with Teflon, so toner does not stick to the surface.
• Pressure roller
A pressure roller mounted under a heat roller that is made of a silicon resin, and the surface also is
coated with Teflon. When a paper passes between a heat roller and a pressure roller, toner
adheres to the surface of a paper permanently.
•Halogen Lamp
– Voltage 120 V: 115 ± 5% Voltage 220 V: 230 ± 5%
– Capacity: 850 Watt ± 42.5 - W

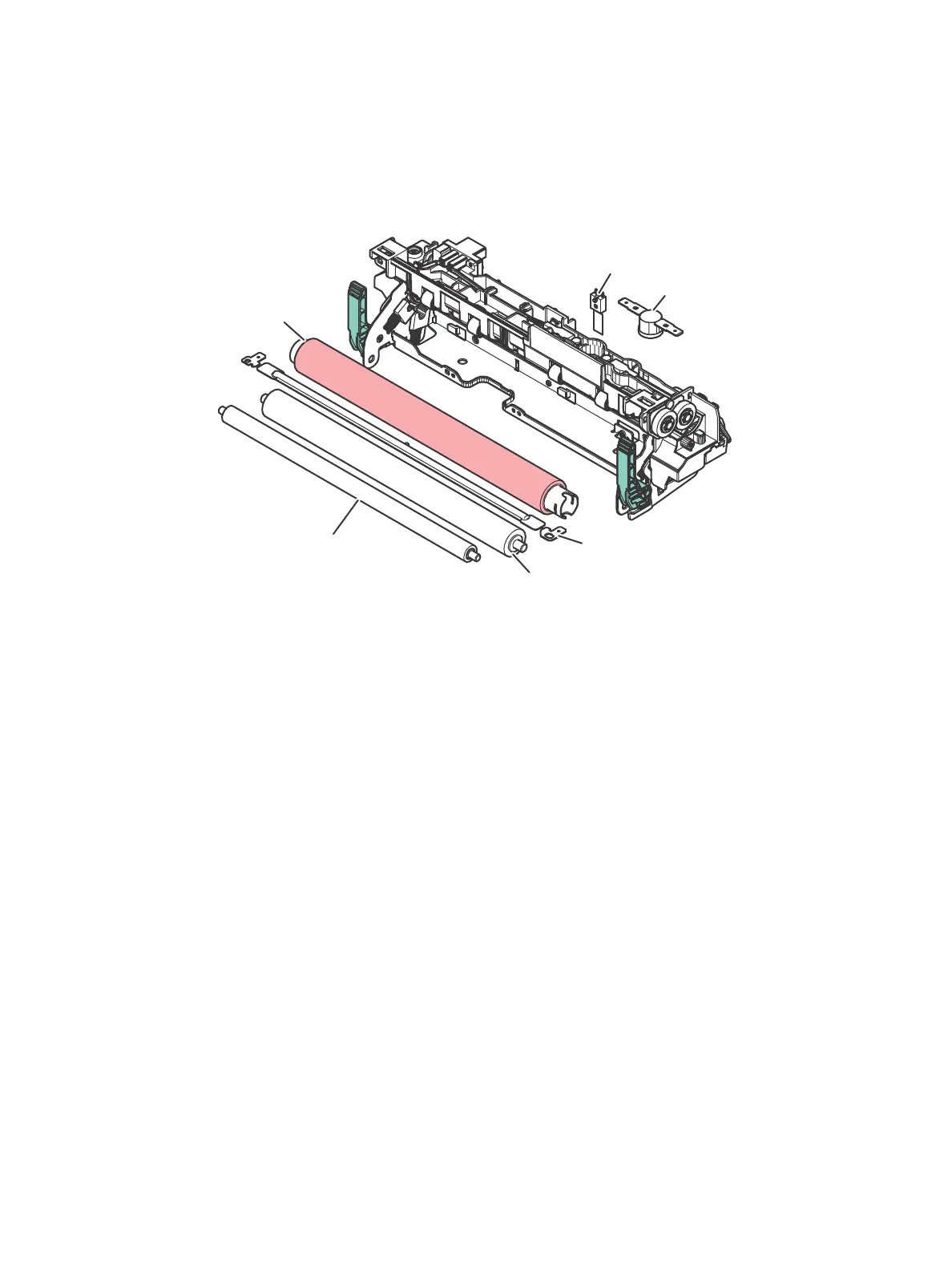

s3320-261
Pressure Roller
Pressure Roller2
Halogen Lamp
Heat Roller
Thermistor
Thermostat

Xerox Phaser 3330 Specifications

General

Print Technology	Laser
Print Speed	Up to 42 ppm
Print Resolution	Up to 1200 x 1200 dpi
First Page Out Time	As fast as 6.5 seconds
Monthly Duty Cycle	Up to 80, 000 pages
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	850 sheets
Processor Speed	600 MHz
Memory	256 MB
Paper Output Capacity	150 sheets
Print Languages	PCL 5e, PCL 6, PostScript 3
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	Letter, Legal, Executive, A4, A5
Maximum Paper Size	8.5 x 14 in (Legal)
Weight	10.6 kg
