Xerox Phaser 3330 Service Manual

Image Quality
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
3-20

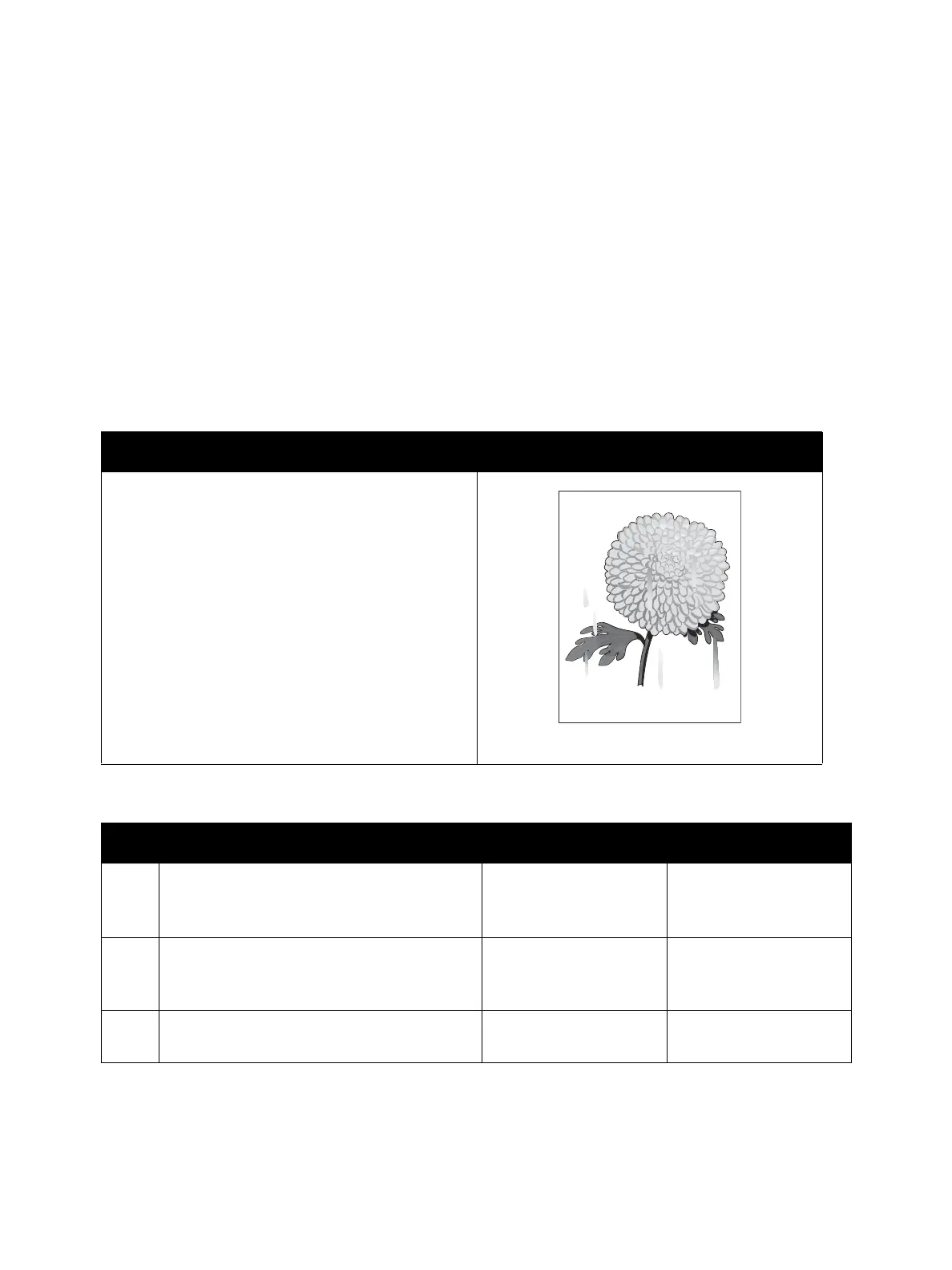

Toner Smears
There are faded or completely non-printed lines along the page in the direction of the paper travel
from the leading edge to the trailing edge.
Initial Actions
• Check that the media settings match the media in use.
• Check that the media is dry and in good condition.
• If the problem is that the background on the face of the printed page is stained refer to Smears on
Printed Page.
Troubleshooting Reference Table
Troubleshooting Procedure Table
Applicable Parts Example Print
• Fuser (PL 3.3.36, Parts List 3.3 Fuser)
• Transfer Roller (PL 3.1A.40, Parts List 3.1A Frame
(2 of 2))
Step Actions and Questions Yes No
1. Reseat P/J15 on the Main PWB, and P/J3 on
the LVPS.
Does the image print correctly?
Complete. Go to step 2.
2. Replace the Fuser (PL 3.3.36, Parts List 3.3
Fuser).
Does the image print correctly?
Complete. Replace the Transfer
Roller (PL 3.1A.40, Parts
List 3.1A Frame (2 of 2)).
3. Replace the Toner Cartridge. Xerox Supplies
and Accessories
Smudges or Smears

Xerox Phaser 3330 Specifications

General

Print Technology	Laser
Print Speed	Up to 42 ppm
Print Resolution	Up to 1200 x 1200 dpi
First Page Out Time	As fast as 6.5 seconds
Monthly Duty Cycle	Up to 80, 000 pages
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	850 sheets
Processor Speed	600 MHz
Memory	256 MB
Paper Output Capacity	150 sheets
Print Languages	PCL 5e, PCL 6, PostScript 3
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	Letter, Legal, Executive, A4, A5
Maximum Paper Size	8.5 x 14 in (Legal)
Weight	10.6 kg
