Xerox Phaser 3330 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-89
Exhaust Fan
Parts List 3.1A Frame (2 of 2)
WARNING: Do not perform repair activities with the power on or electrical power supplied to the
machine. The machine could activate and cause serious personal injury when the power is on or
electrical power is supplied.
1. Do steps 1-4 in the Preparation section (page 4-3).
2. Undock the printer from the optional Tray 2 Base. (page 4-8).
3. Remove the Right Cover (page 4-17).

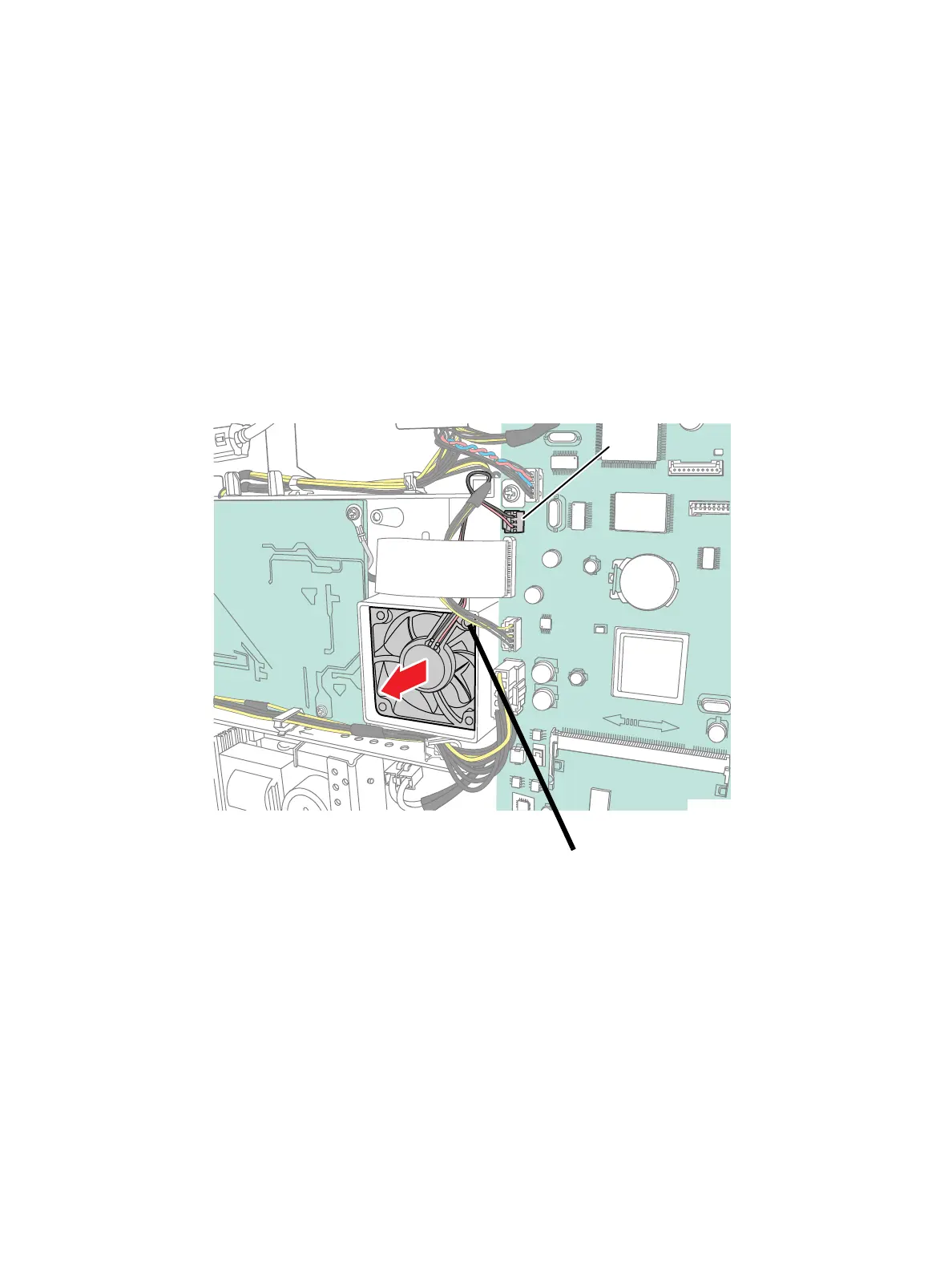

4. Unplug P/J22 on the Main PWB and unthread the cable.
5. Remove the screw and pull the Exhaust Fan (Parts List 3.1A Frame (2 of 2), PL 3.1A.27) out of the
printer.
s3320-094
P/J22
Remove the Screw
