Servi
ce P
arts
Disassembl
y
Phaser 3330 and W
orkCen
tre 3335/3345
Xer
ox Int
ernal Use Only
Service M
anual
4-88
7.

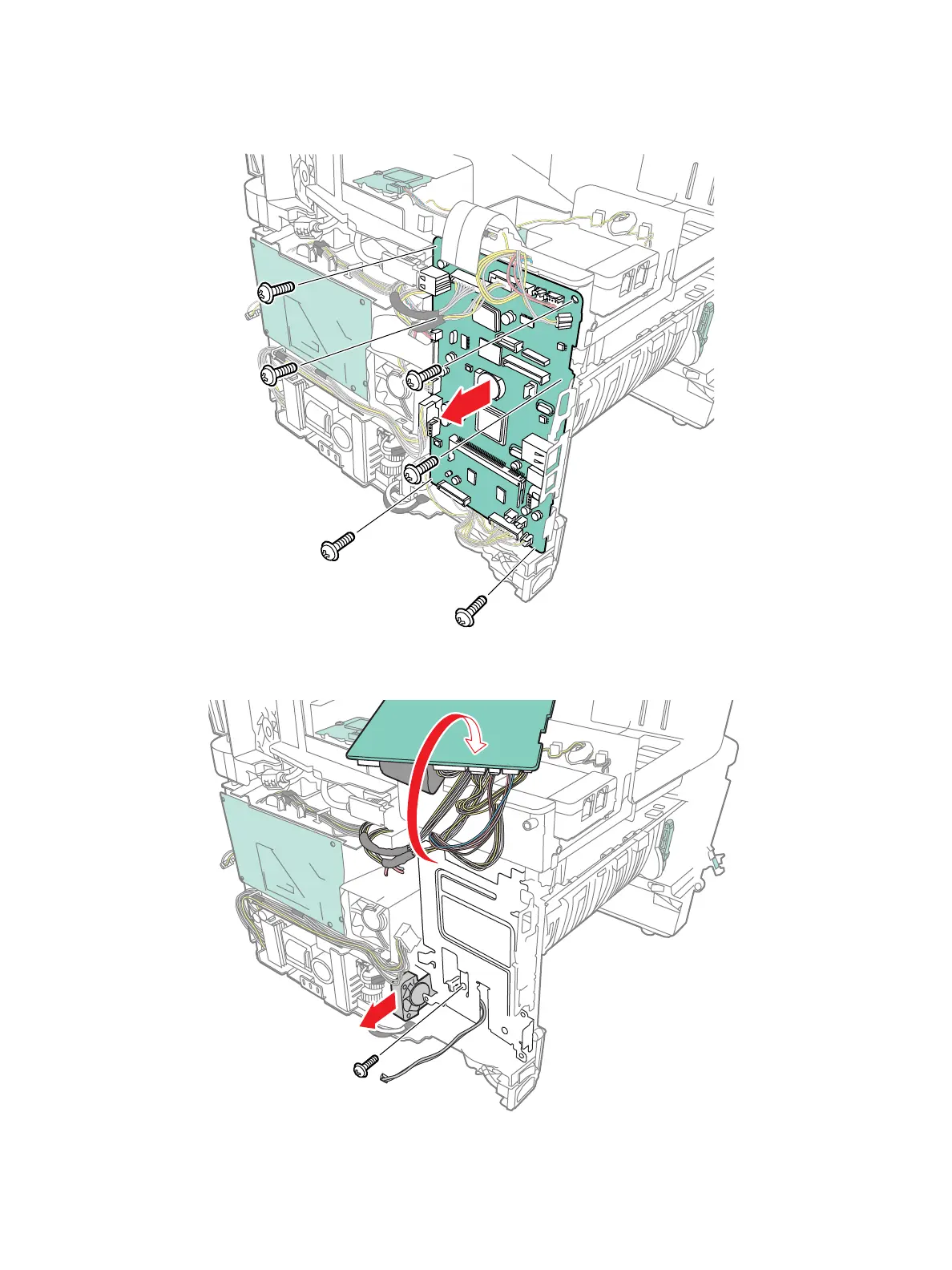

R
emove 6 screws (silver, flanged, tap, 10 mm).
8.
R
emove 1 screw (silver, flange
d, tap, 10 mm) and p
ull the Mai
n PWB plate ou
t enough to remove
the f
an (
Parts List 3
.1A F
rame
(2 of 2)
, PL 3.
1A.57)
and f
an wir
e.
s3320-085
s3320-093
272
274
