Xerox Phaser 3330 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-125
DADF White Bar Plate
Parts List 8.2 WorkCentre 3345 Lower DADF
Note: The White Bar Plate has two springs beneath it. When removing the White Bar Plate (Parts
List 8.2 WorkCentre 3345 Lower DADF, PL 8.2.2), be careful not to lose these springs.

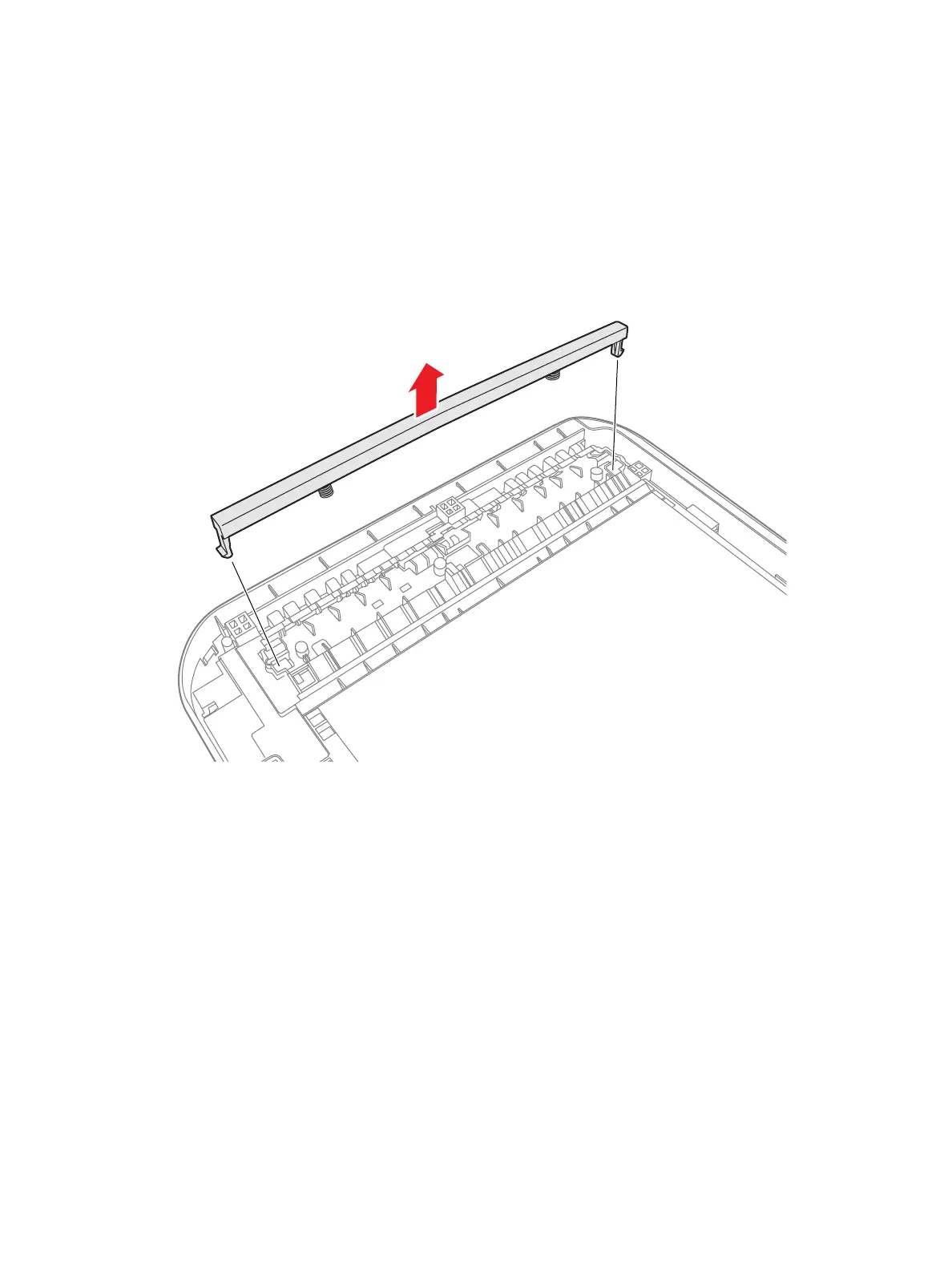

1. Lift up the DADF and disconnect the White Bar Plate bosses and remove the White Bar Plate
(Parts List 8.2 WorkCentre 3345 Lower DADF, PL 8.2.2).
s3200-190
