Xerox Phaser 3330 Service Manual

Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-18
Top Cover (3330)
Parts List 1.0 Phaser 3330 Main
WARNING: Do not perform repair activities with the power on or electrical power supplied to the
machine. The machine could activate and cause serious personal injury when the power is on or
electrical power is supplied.
1. Undock the printer from the Optional Tray 2 Base (page 4-8)
2. Remove Tray 1(page 4-6).
3. Remove the Front Door (page 4-13).
4. Remove the Duplex tray (page 4-7)
5. Remove the Rear Door (page 4-13)

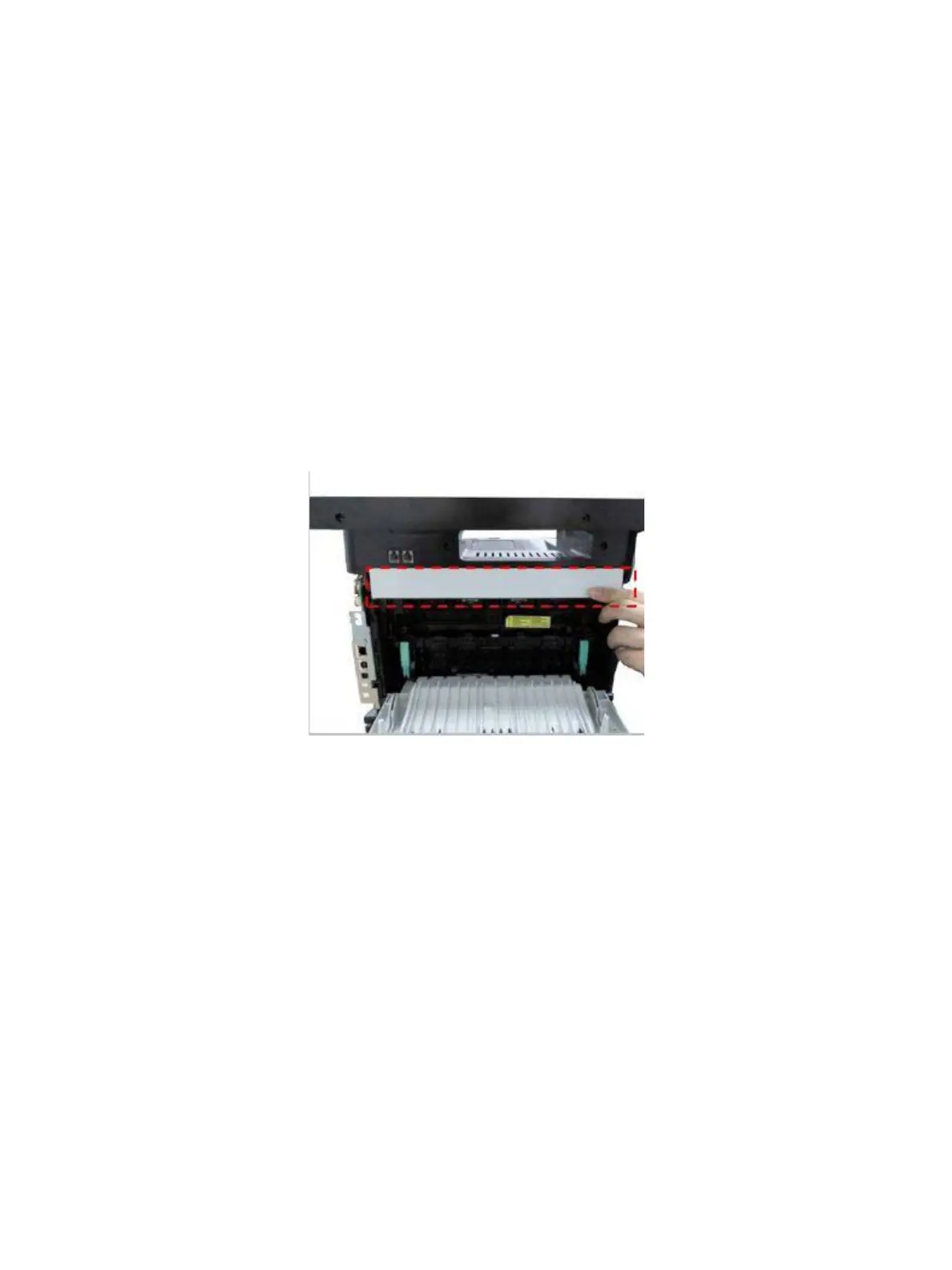

6. Remove the rear top Bezel. First pry out each end, and then pry out the top. This Bezel fits very
tightly.
7. Remove the Left Side Cover (page 4-15).
