Xerox Phaser 3330 Service Manual

Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-70

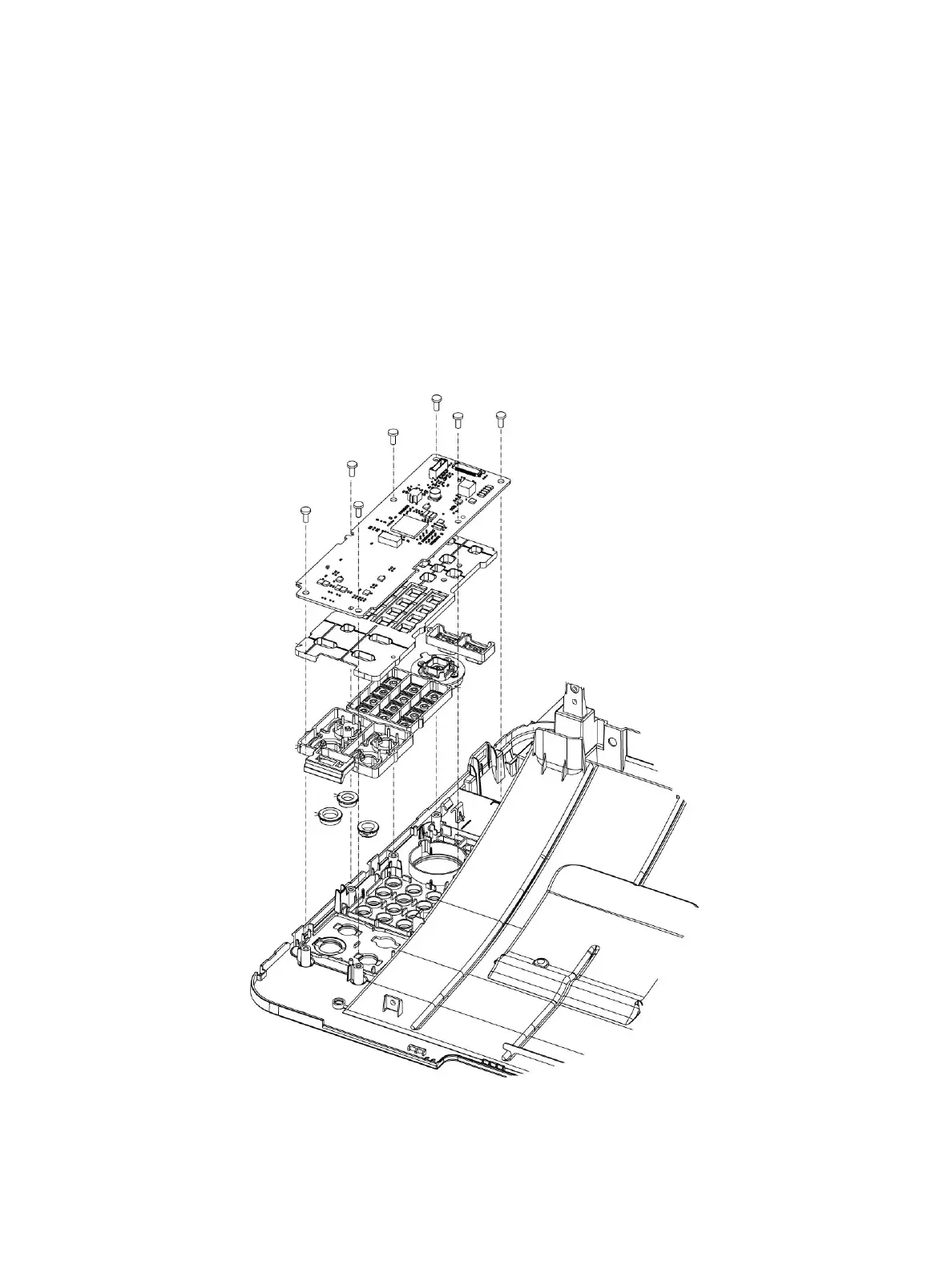

Control Panel Board (Phaser 3330)
Parts List 1.1 Phaser 3330 Top Cover
WARNING: Do not perform repair activities with the power on or electrical power supplied to the
machine. The machine could activate and cause serious personal injury when the power is on or
electrical power is supplied.
1. Do steps 1-4 in the Preparation section (page 4-3).
2. Undock the printer from the optional Tray 2 Base. (page 4-8).
3. Remove the Top Cover page 4-18 and turn it over.,
4. Disconnect any cables as required and then remove the screws and release the Control Panel
Board.
