Xerox Phaser 3330 Service Manual

Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-2
Overview
This section contains the removal procedures for field-replaceable parts listed in the Parts List. In most
cases, the replacement procedure is simply the reverse of the removal procedure. In some instances,
additional steps are necessary and are provided for replacement of the parts. For specific assemblies
and parts, refer to Chapter 5.
Standard Orientation of the Printer
When needed, printer orientation is called out in the procedure as an aid for locating the printer parts.

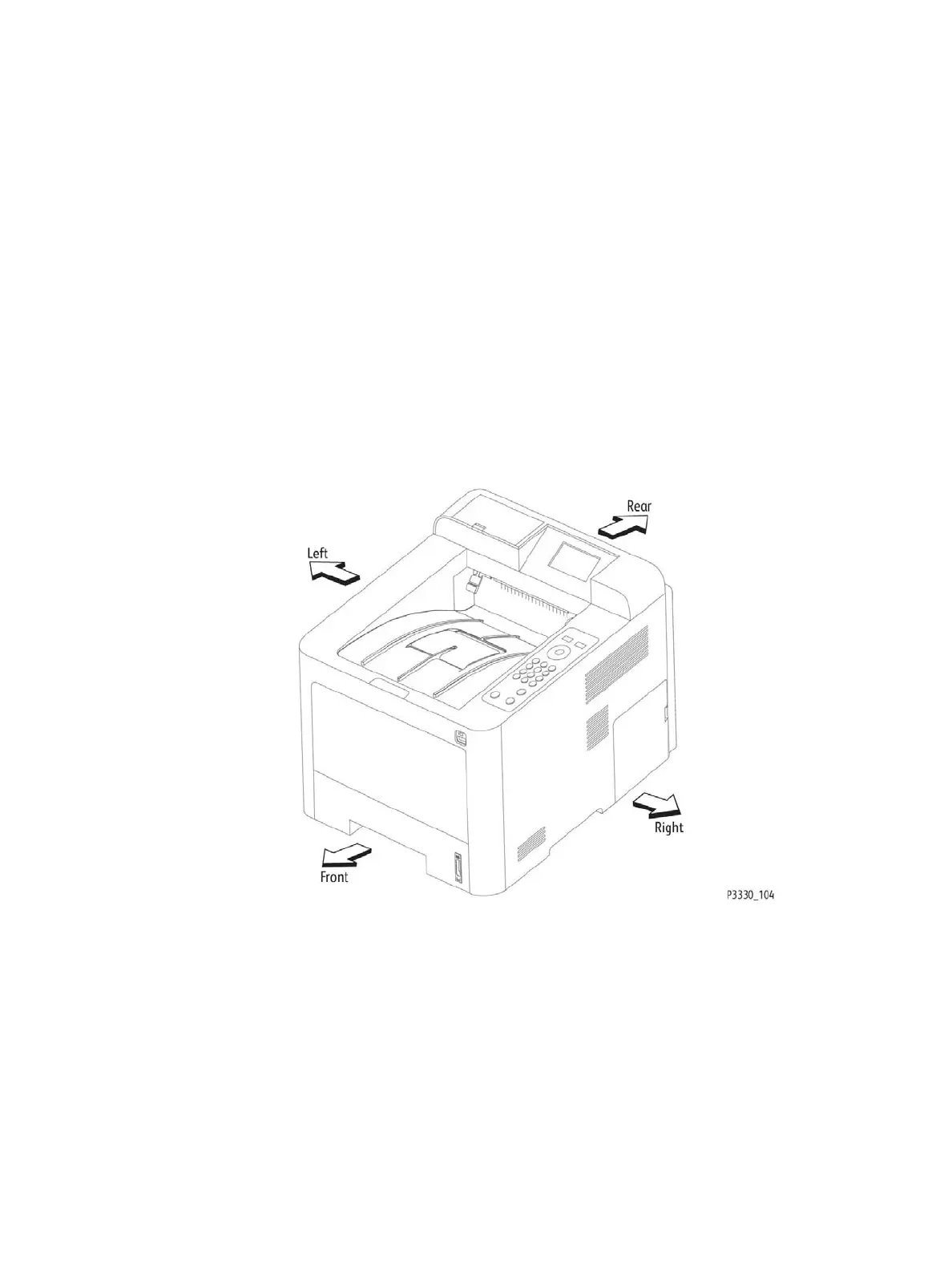

The following figure identifies the Front, Rear, Left, and Right sides of the printer.

Xerox Phaser 3330 Specifications

General

Print Technology	Laser
Print Speed	Up to 42 ppm
Print Resolution	Up to 1200 x 1200 dpi
First Page Out Time	As fast as 6.5 seconds
Monthly Duty Cycle	Up to 80, 000 pages
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	850 sheets
Processor Speed	600 MHz
Memory	256 MB
Paper Output Capacity	150 sheets
Print Languages	PCL 5e, PCL 6, PostScript 3
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	Letter, Legal, Executive, A4, A5
Maximum Paper Size	8.5 x 14 in (Legal)
Weight	10.6 kg
