Xerox Phaser 3330 Service Manual

Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-140
ADF Pick Up Assembly (WorkCentre 3335)
Parts List 7.1A WorkCentre 3335 ADF
WARNING: Do not perform repair activities with the power on or electrical power supplied to the
machine. The machine could activate and cause serious personal injury when the power is on or
electrical power is supplied.
1. Do steps 1-4 in the Preparation section (page 4-3).
2. Lift the ADF Open Cover.
3. Remove 3 e-rings (colored black).

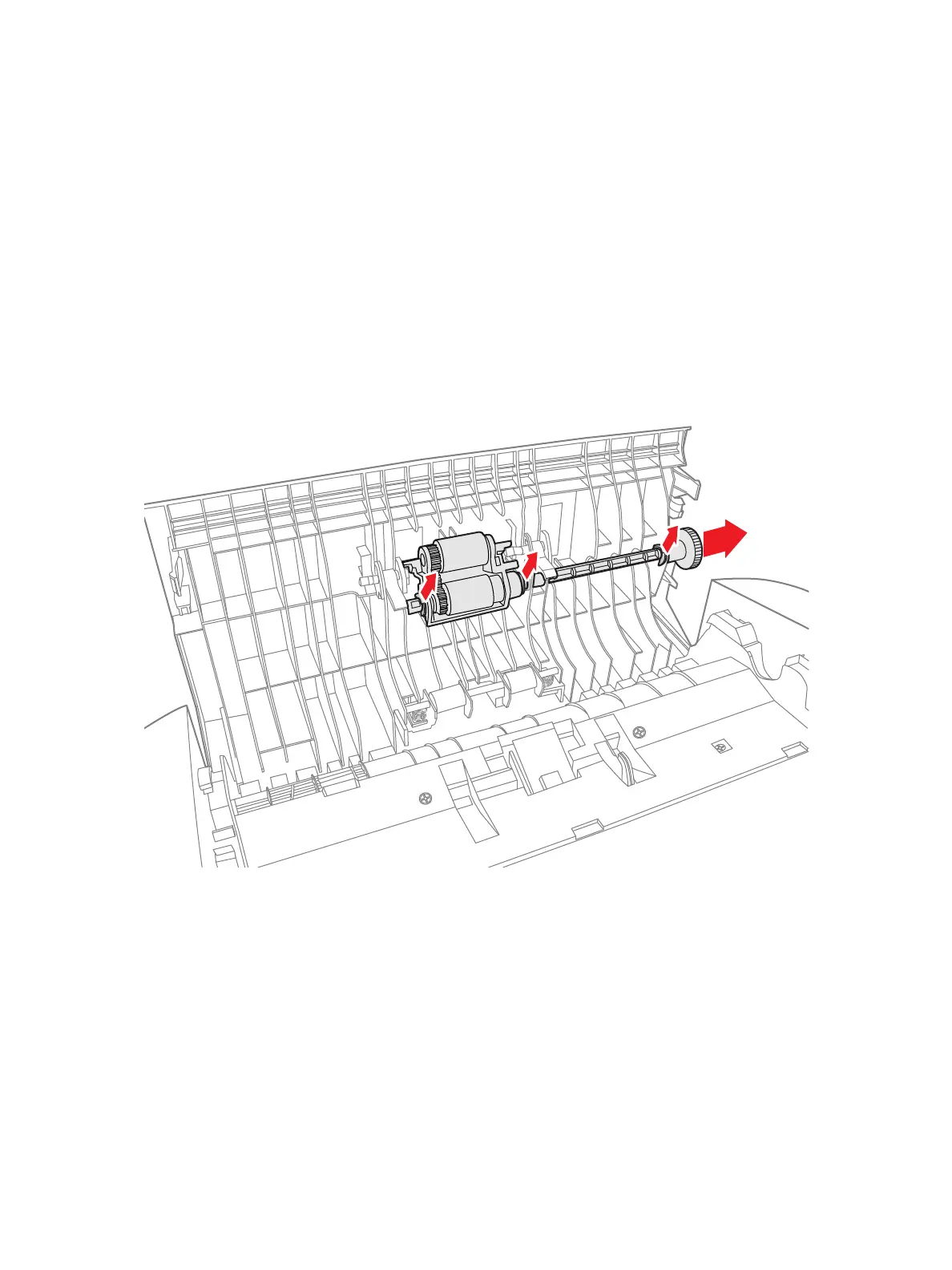

4. While rotating the drive gear, pull the shaft in the direction of the arrow and remove the ADF Pick
Up Assembly.
s3320-188
