Xerox Phaser 3330 Service Manual

Image Quality
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
3-15
Ghosting or Residual Image
There are faint, ghostly images appearing on the page. The images may be either from a previous
page or from the page currently being printed.
Initial Actions
• Ensure there is no debris on the path.
Troubleshooting Reference Table
Troubleshooting Procedure Table

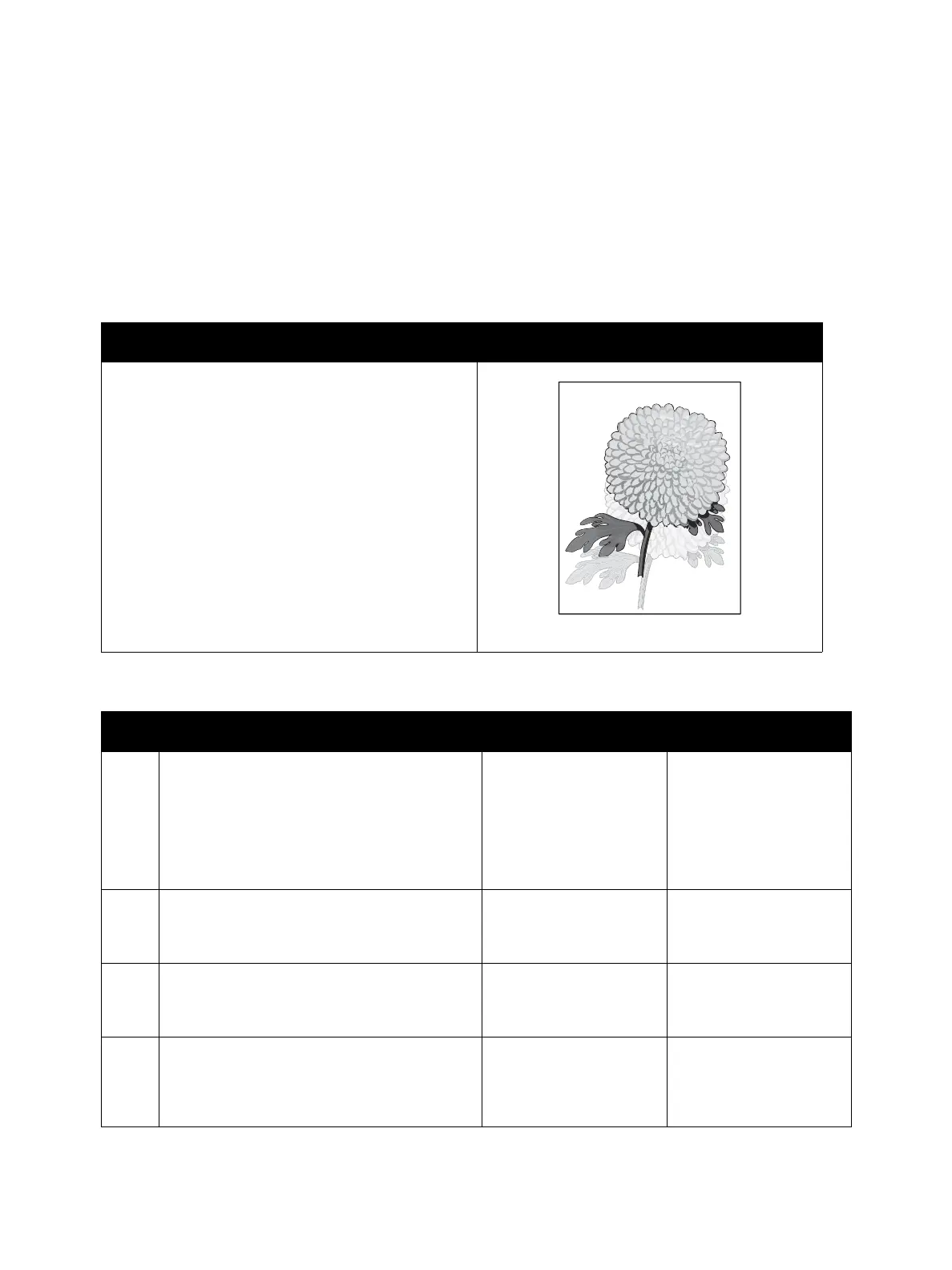

Applicable Parts Example Print
• Toner Cartridge, Refer to Xerox Supplies and
Accessories
• Main PWB (PL 1.0.7, Parts List 1.0 Phaser 3330
Main) or Main PWB (PL 6.1.7, Parts List 6.1
WorkCentre 3335/3345 Main)
• Transfer Roller (PL 3.1A.40, Parts List 3.1A Frame
(2 of 2))
Step Actions and Questions Yes No
1.
Remove the Toner Cartridge and clean the
high voltage supply terminals.
Remove and reseat connections on the HVPS
board.
Does the error persist?
Go to step 2. Complete.
2.
Replace the Toner Cartridge. Refer to Xerox
Supplies and Accessories.
Does the error persist?
Go to step 3. Complete.
3.
Use supplies page to determine installed
date/Life remaining of Roller.
Is the Roller at end of life?
Replace the Transfer
Roller (PL 3.1A.40, Parts
List 3.1A Frame (2 of 2)).
Go to step 4.
4.
• Replace the Main PWB (PL 1.0.7, Parts List
1.0 Phaser 3330 Main) or Main PWB (PL
6.1.7, Parts List 6.1 WorkCentre
3335/3345 Main).
Residual Image/Ghosting
