Xerox Phaser 3330 Service Manual

Image Quality
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
3-16

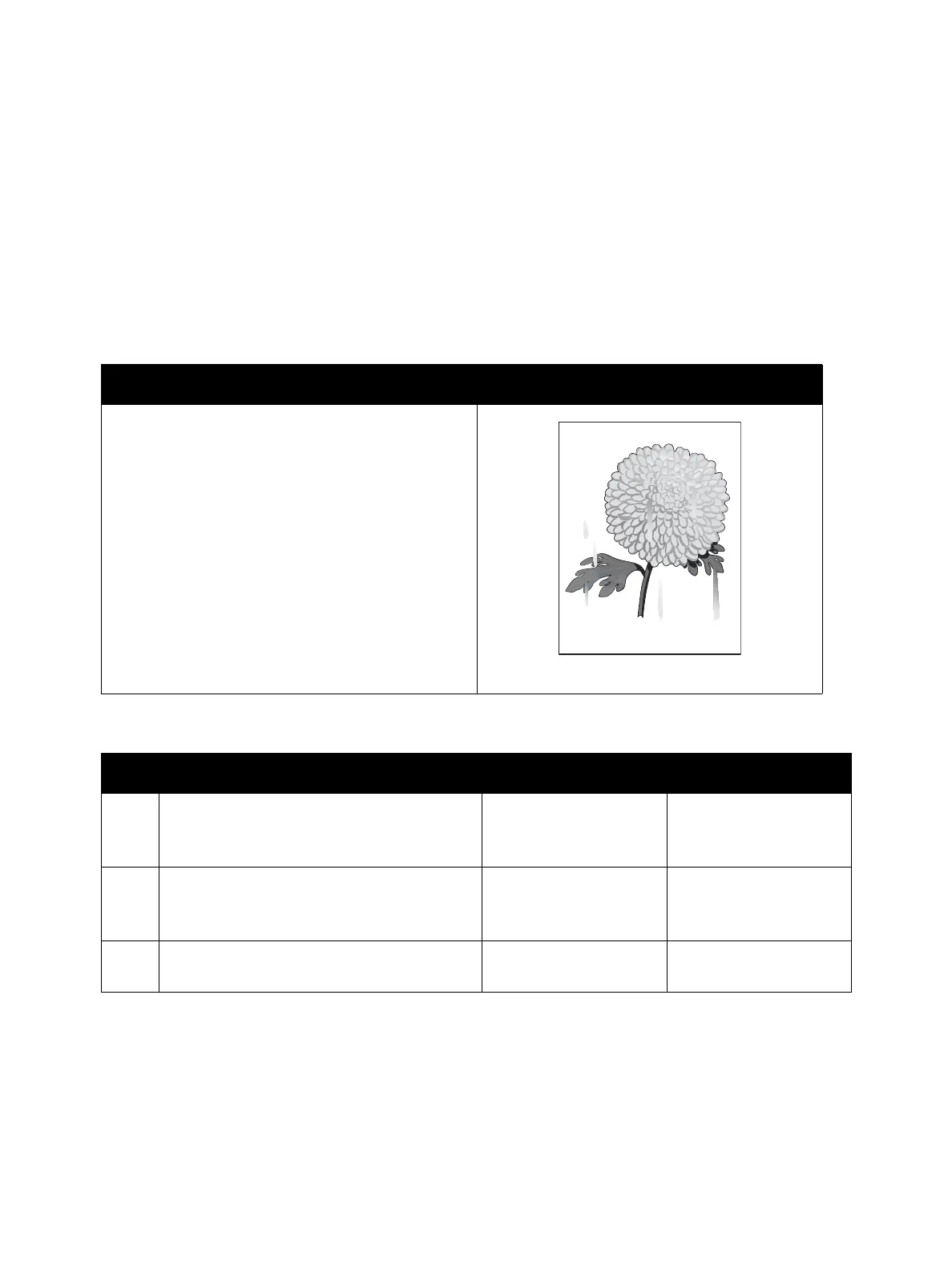

Smears on Printed Page
The background on the face of the printed page is stained.
Initial Actions
• Ensure there is no debris on the path.
• If the problem is toner smears on the page, refer to To n er Smears.
Troubleshooting Reference Table
Troubleshooting Procedure Table
Applicable Parts Example Print
• Toner Cartridge, Refer to Xerox Supplies and
Accessories
• Transfer Roller (PL 3.1A.40, Parts List 3.1A Frame
(2 of 2))
Step Actions and Questions Yes No
1.
Check the Transfer Roller for contamination.
If contaminated, print 3 to 5 blank pages.
Does the error persist?
Go to step 2. Complete.
2.
Replace the Transfer Roller (PL 3.1A.40, Parts
List 3.1A Frame (2 of 2)).
Does the error persist?
Go to step 3. Complete.
3.
Replace the Toner Cartridge. Refer to Xerox
Supplies and Accessories.
Complete.
Smudges or Smears

Xerox Phaser 3330 Specifications

General

Print Technology	Laser
Print Speed	Up to 42 ppm
Print Resolution	Up to 1200 x 1200 dpi
First Page Out Time	As fast as 6.5 seconds
Monthly Duty Cycle	Up to 80, 000 pages
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	850 sheets
Processor Speed	600 MHz
Memory	256 MB
Paper Output Capacity	150 sheets
Print Languages	PCL 5e, PCL 6, PostScript 3
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	Letter, Legal, Executive, A4, A5
Maximum Paper Size	8.5 x 14 in (Legal)
Weight	10.6 kg
