Xerox Phaser 3330 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-15
Left Cover
Parts List 1.0 Phaser 3330 Main
WARNING: Do not perform repair activities with the power on or electrical power supplied to the
machine. The machine could activate and cause serious personal injury when the power is on or
electrical power is supplied.
1. Do steps 1-4 in the Preparation section (page 4-3).
2. If necessary, remove the Printer from the optional Tray 2 Base and set the printer on a flat work
surface (page 4-8).
3. Remove Tray 1 (page 4-6).
4. Remove the Toner Cartridge (page 4-5).
5. Remove the Photoreceptor Drum Cartridge (page 4-5).
6. Remove the Duplex Unit (page 4-7).
7. Remove the Rear Door (page 4-13).
Note: It may be easiest to lay the printer on the side so the Left Cover is exposed.

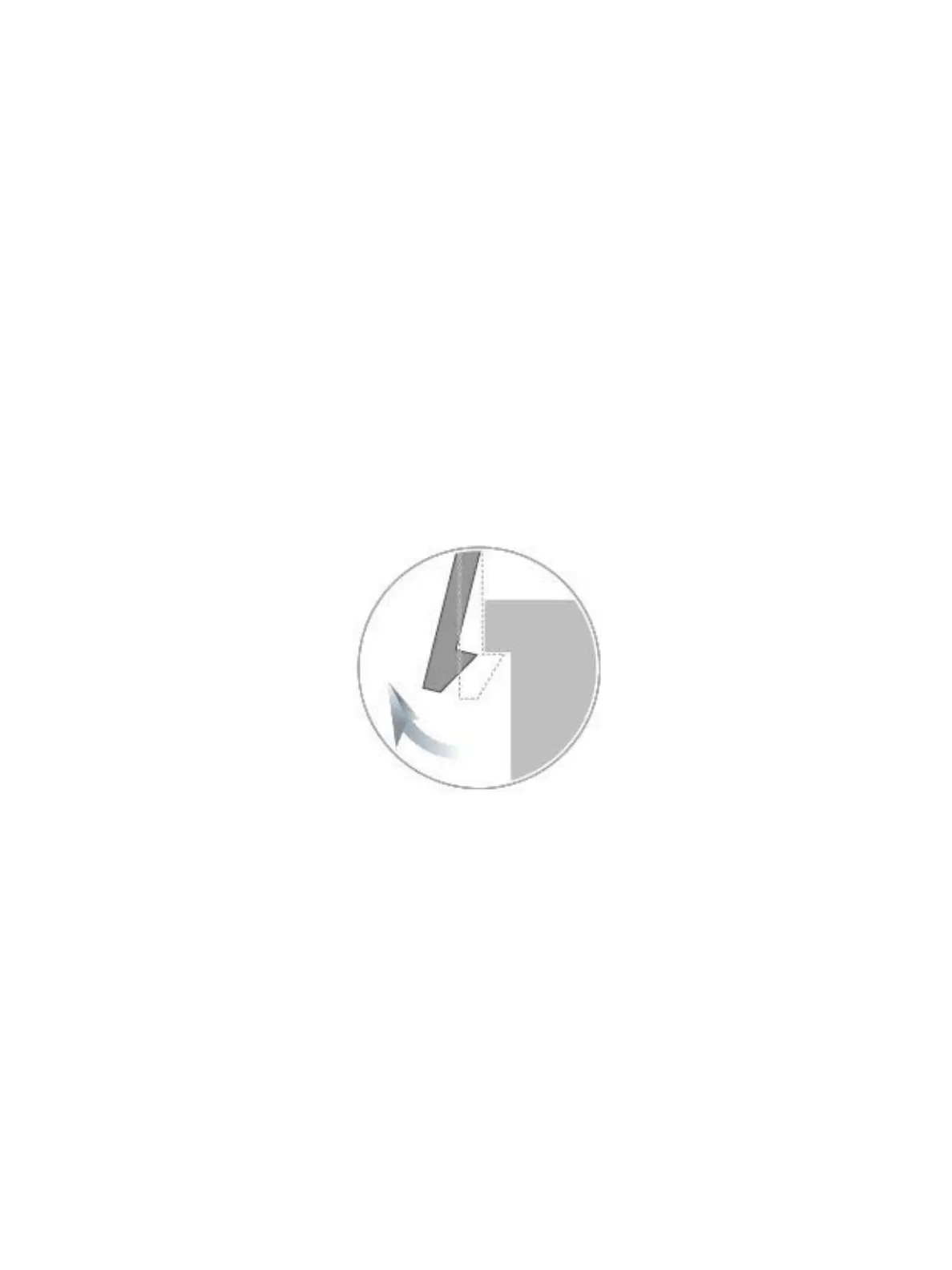

8. Release the Latch from the upper front Left Side Cover (Parts List 1.0 Phaser 3330 Main, PL 1.0.5).
