Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-16

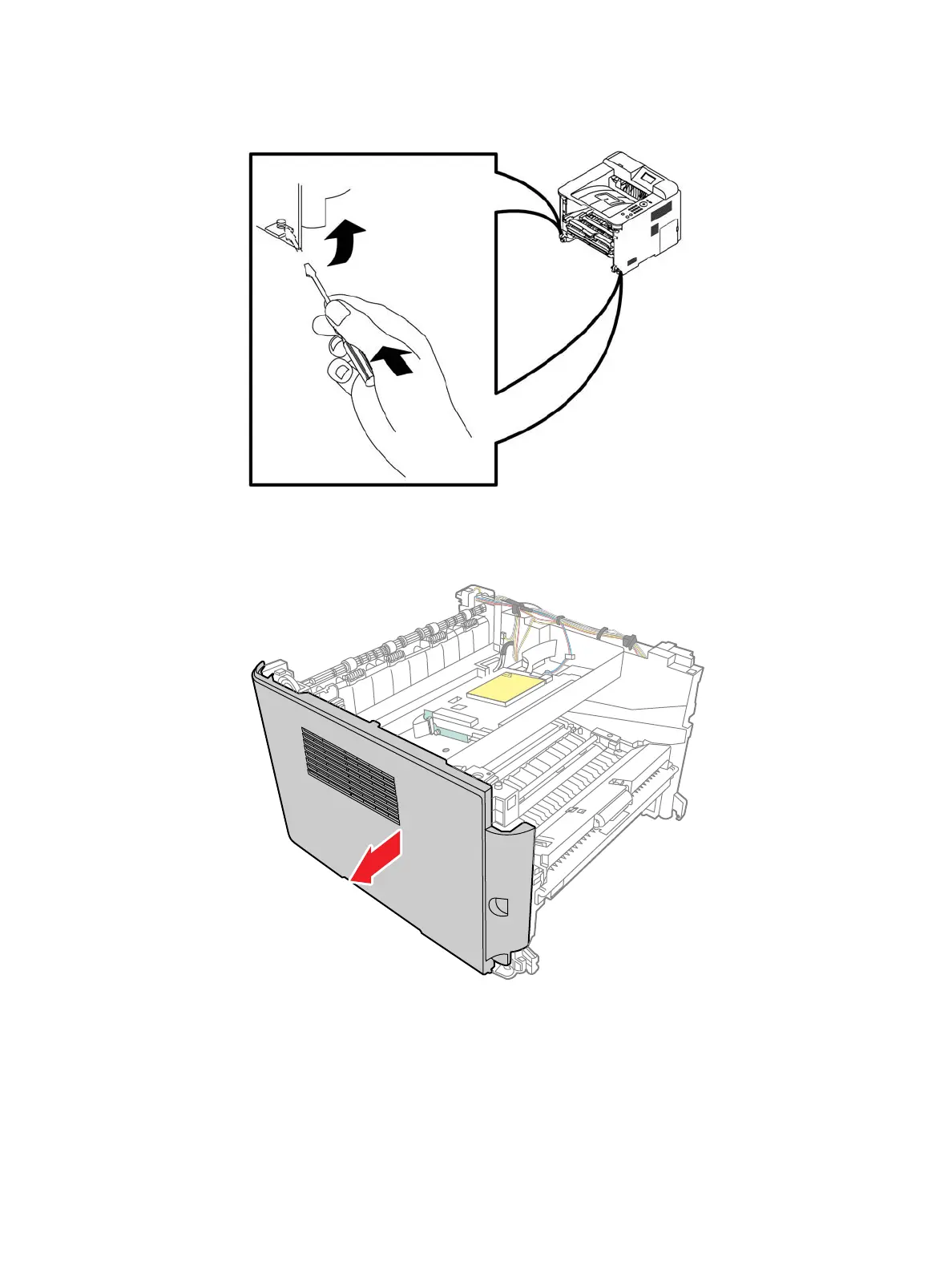

9. Using a small flat blade screwdriver, release the cover from the 3 Bosses on the bottom.
10. Tip the Left Cover away from the printer at about a 30° angle.
11. Work the Left Cover down to remove the clips from the Top Cover
