Speaker and Fax Board
Parts List 6.2 WorkCentre 3335/3345 Middle Cover
WARNING: Do not perform repair activities with the power on or electrical power supplied to the
machine. The machine could activate and cause serious personal injury when the power is on or
electrical power is supplied.
1. Do steps 1-4 in the Preparation section (page 4-3).
2. Remove the Front Door (page 4-13).
3. Remove the Rear Door (page 4-13).
4. Remove the Left Cover (page 4-15).
5. Remove the Right Cover (page 4-17).
6. Remove the Scanner (page 4-103).
7. Remove the Upper Middle Cover (page 4-23).
Removing Speaker (Parts List 6.2 WorkCentre 3335/3345 Middle Cover, PL 6.2.5)
1. Disconnect P/J 2 and remove 2 SCREWS.
Removing the FAX Board (Parts List 6.2 WorkCentre 3335/3345 Middle Cover, PL
6.2.1)
1. Do steps 1-4 in the Preparation section (page 4-3).
2. Remove the Front Door (page 4-13).
3. Remove the Rear Door (page 4-13).
4. Remove the Left Cover (page 4-15).
5. Remove the Right Cover (page 4-17).
6. Remove the Scanner (page 4-103).
7. Remove screws (2) and lift the Fax board cover off of the Fax Board (page 4-76).

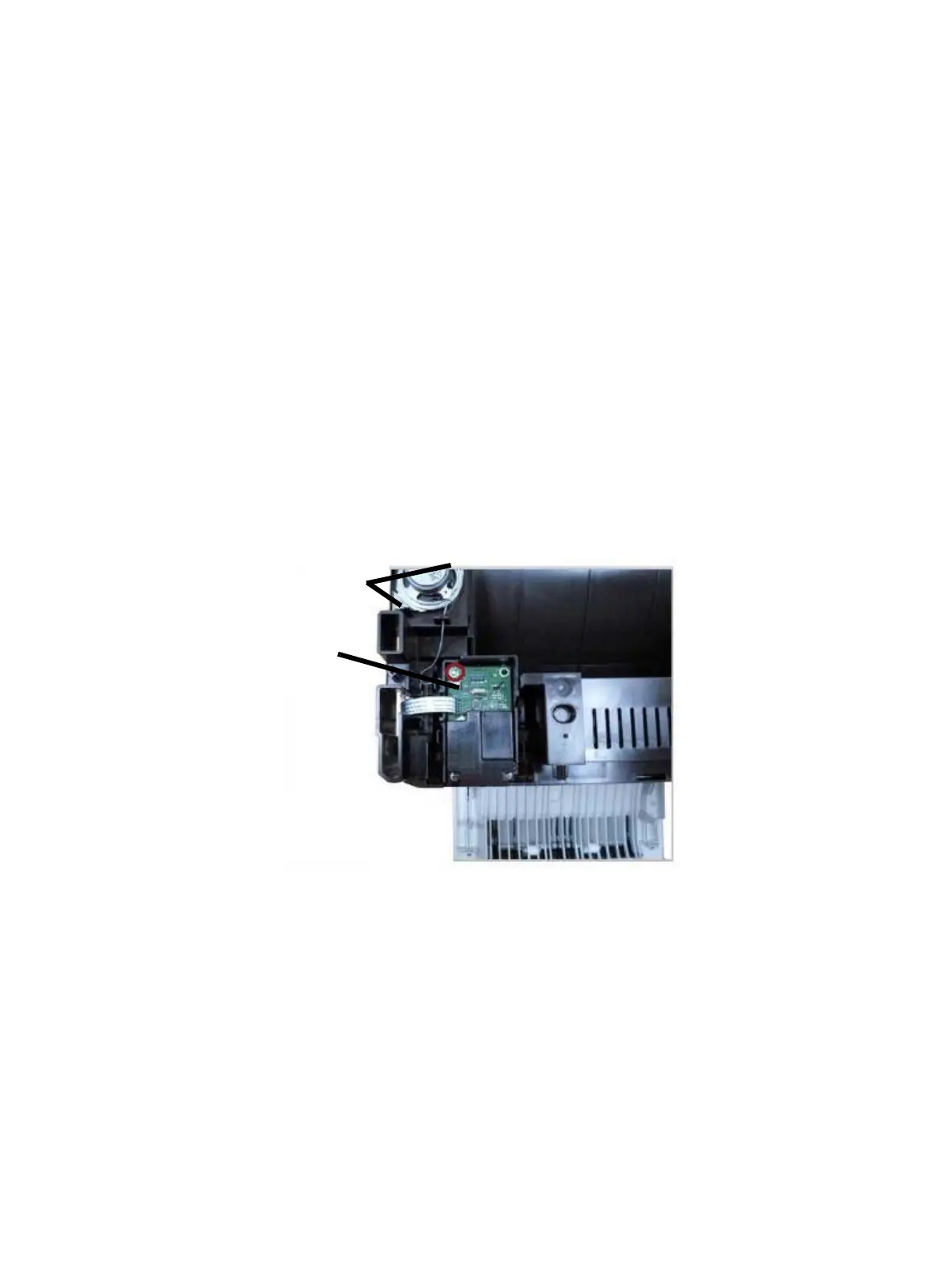

P/J 2
SCREWS (2)
securing speaker
