Xerox Phaser 3330 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-45
44-29 Feed Gear/19 Idle Gear
Parts List 3.6 Feed Drive
WARNING: Do not perform repair activities with the power on or electrical power supplied to the
machine. The machine could activate and cause serious personal injury when the power is on or
electrical power is supplied.
1. Do steps 1-4 in the Preparation section (page 4-3).
2. Undock the printer from the optional Tray 2 Base. (page 4-8).
3. Remove the Main Drive Assembly (page 4-58).
4. Remove the Feed Drive Assembly (page 4-41).

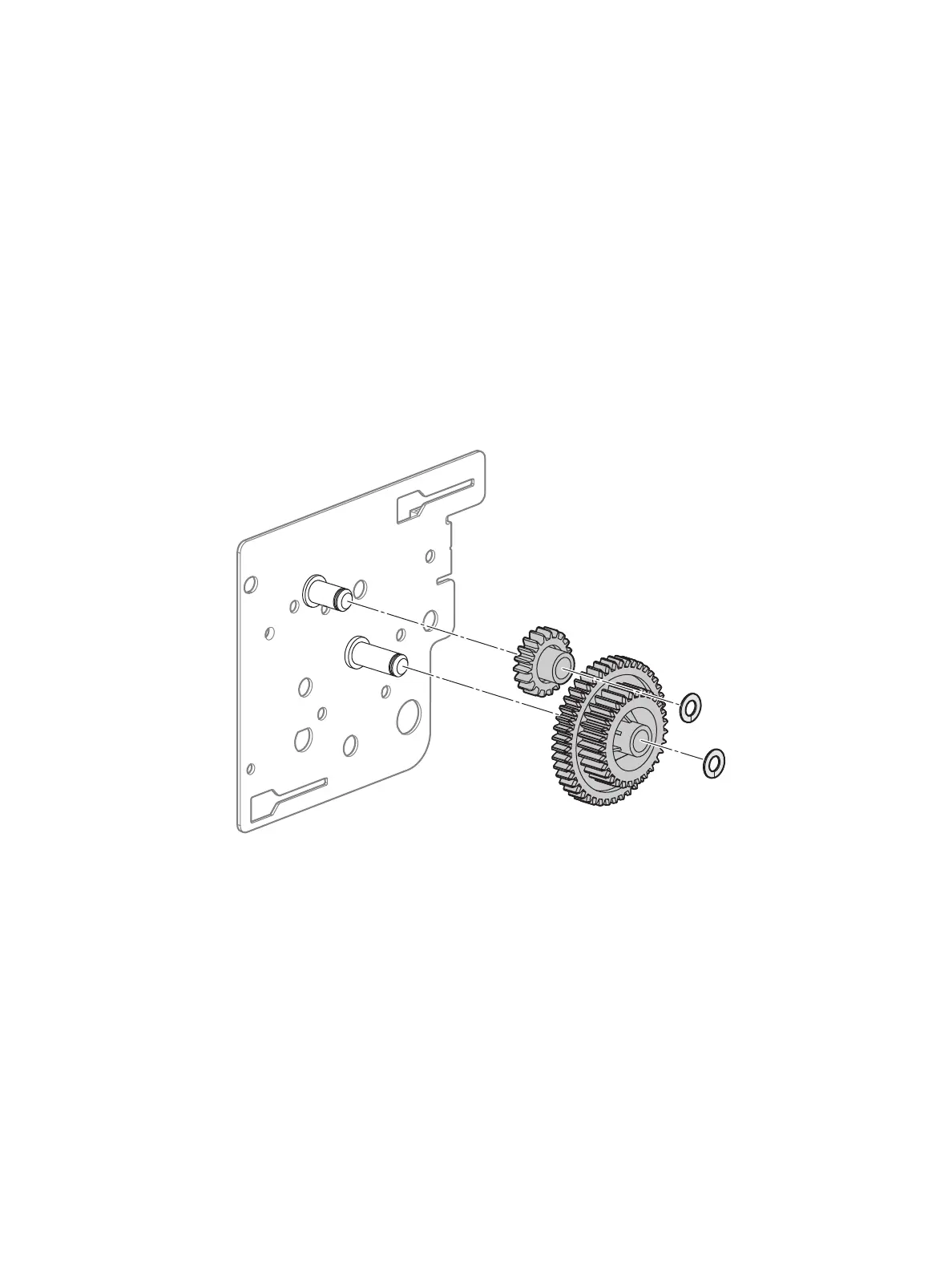

5. Remove the Feed Gear (Parts List 3.6 Feed Drive, PL 3.6.2) or the Bypass Idle Gear (Parts List 3.6
Feed Drive, PL 3.6.3).
s3320-266
