Xerox Phaser 3330 Service Manual

Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-68
Wireless (Wi-Fi) Board
Parts List 1.0 Phaser 3330 Main or Parts List 6.1 WorkCentre 3335/3345 Main
WARNING: Do not perform repair activities with the power on or electrical power supplied to the
machine. The machine could activate and cause serious personal injury when the power is on or
electrical power is supplied.
1. Do steps 1-4 in the Preparation section (page 4-3).
2. Undock the printer from the optional Tray 2 Base. (page 4-8).
3. Remove the Front Door (page 4-13)
4. Remove the Rear Door (page 4-13).
5. Remove the Right Cover (page 4-17).
6. Remove the Scanner (page 4-103).
7. Remove the Top Cover (Phaser 3330 page 4-18) or (WorkCentre 3335/3345 page 4-21)

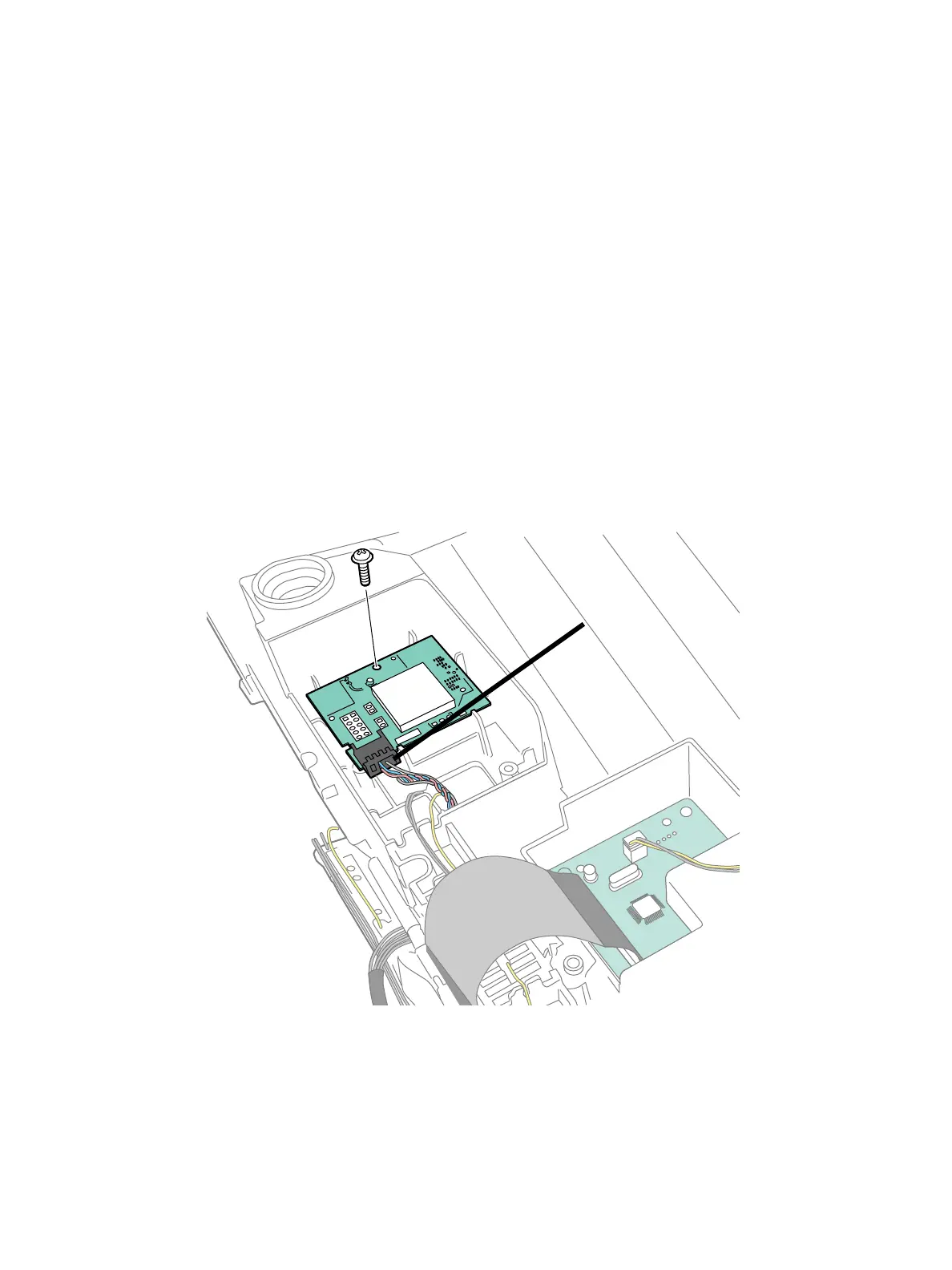

8. Disconnect P/J1220 (WorkCentre 3335/3345) or P/J1221(Phaser 3330).
a) For WorkCentre 3335/3345: Remove 1 screw (silver, flanged, tapping, 10 mm) and remove the
Wireless Board (Parts List 6.1 WorkCentre 3335/3345 Main, PL 6.1.17).
s3320-128
P/J 1221 or P/J 1220
