Xerox Phaser 3330 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-113
Home Position Sensor (WorkCentre 3335/3345)
Parts List 9.2 WorkCentre 3335/3345 Platen
WARNING: Do not perform repair activities with the power on or electrical power supplied to the
machine. The machine could activate and cause serious personal injury when the power is on or
electrical power is supplied.
1. Do steps 1-4 in the Preparation section (page 4-3).
2. Remove the DADF/ADF, WorkCentre 3345 (page 4-116); WorkCentre 3335 (page 4-138).
3. Remove the Control Panel (page 4-73).
4. Remove the A4 Middle Platen (page 4-107).

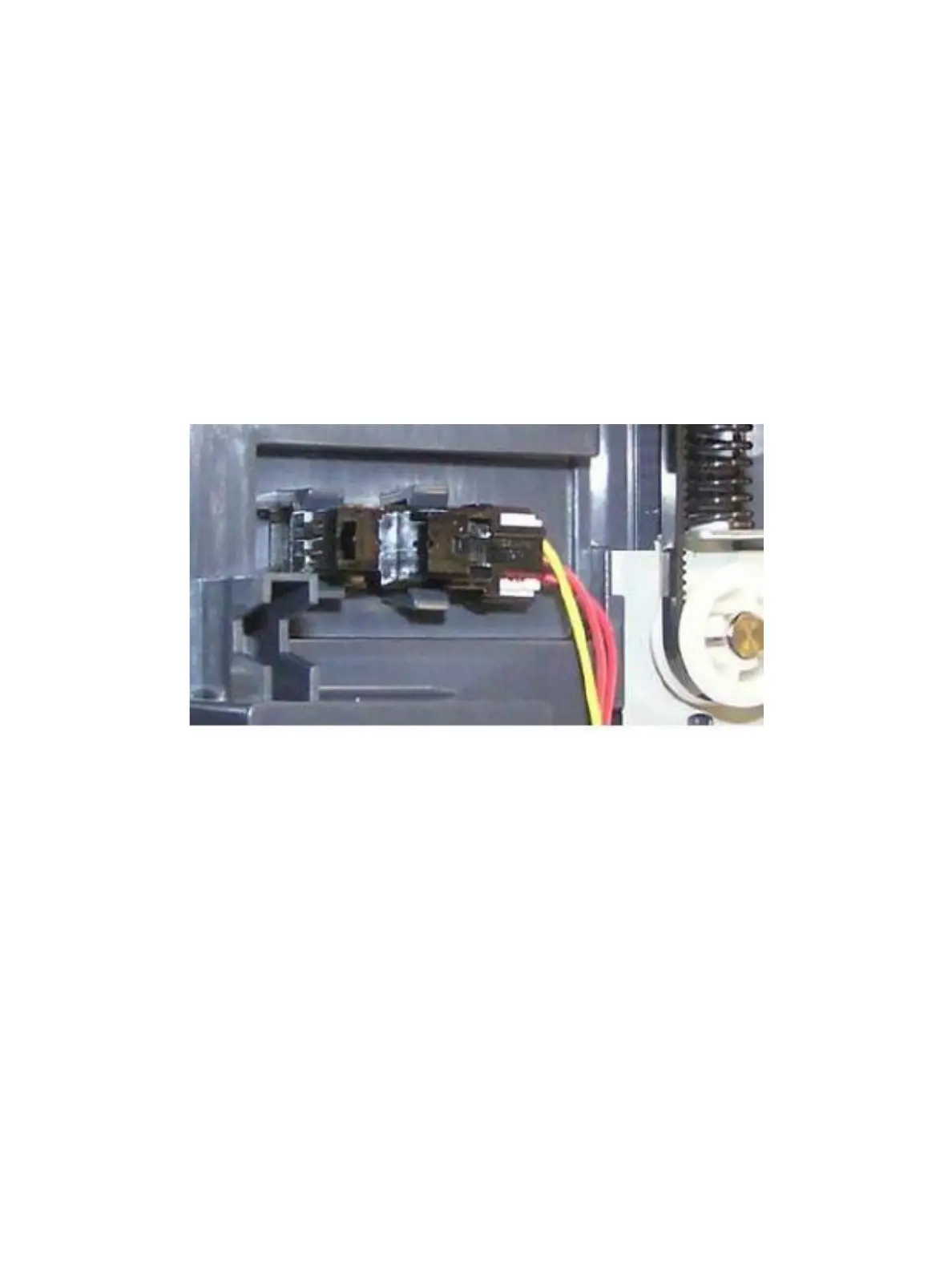

5. Unplug P/J42 and remove the Home Position Sensor.
