Xerox Phaser 3330

Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-112

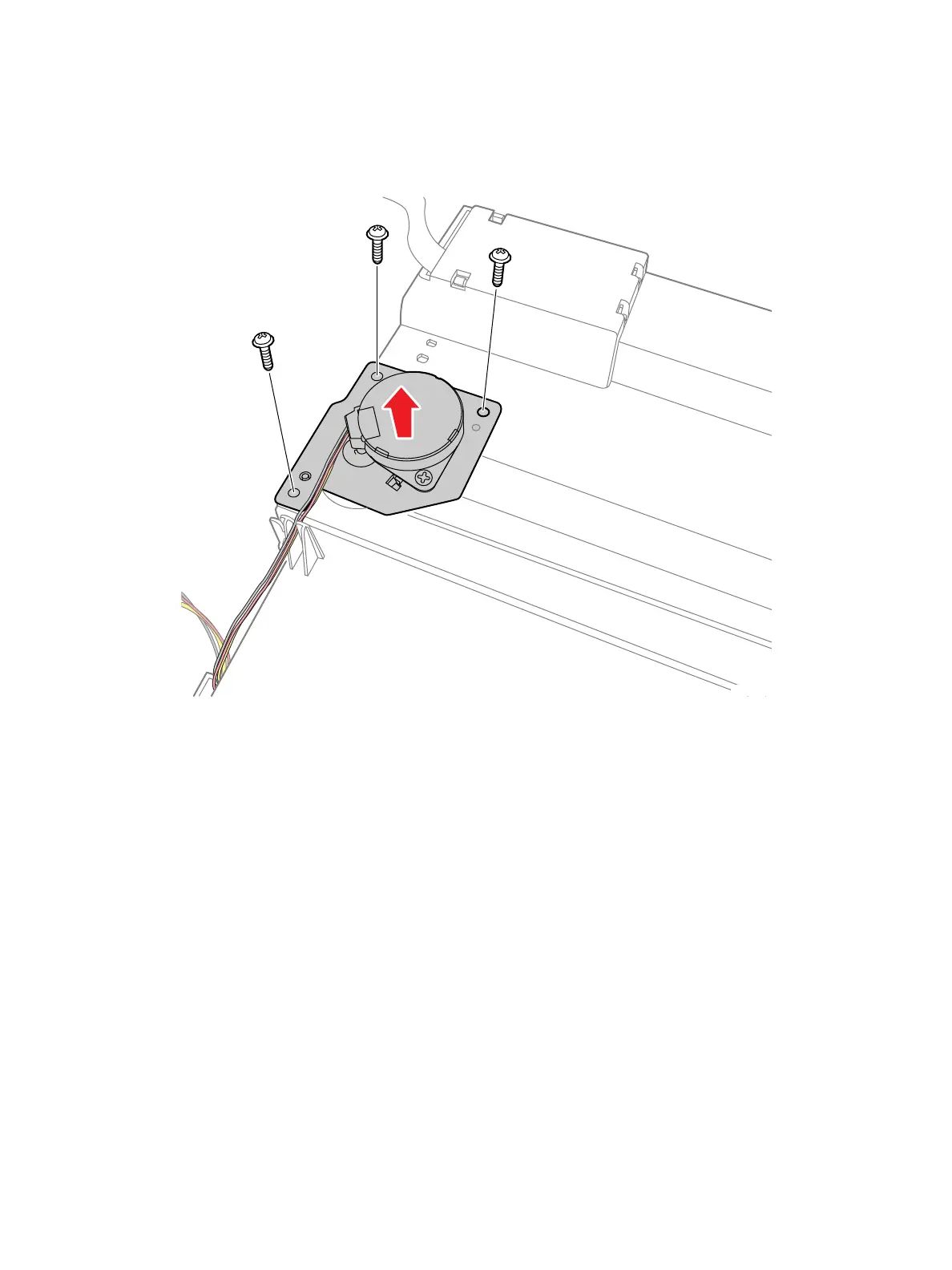

5. Disconnect P/J1 on the Scan Motor (Parts List 9.2 WorkCentre 3335/3345 Platen, PL 9.2.14).
6. Remove 3 screws (silver, flanged, tap, 10 mm) and remove the Scan Motor (Parts List 9.2
WorkCentre 3335/3345 Platen, PL 9.2.14).
s3320-184
