Xerox Phaser 3330 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-57
Exit Rollers
Parts List 3.4 Rear Frame
WARNING: Do not perform repair activities with the power on or electrical power supplied to the
machine. The machine could activate and cause serious personal injury when the power is on or
electrical power is supplied.
1. Do steps 1-4 in the Preparation section (page 4-3).
2. Undock the printer from the optional Tray 2 Base. (page 4-8).
3. Remove the Exit Roller Frame (page 4-55).

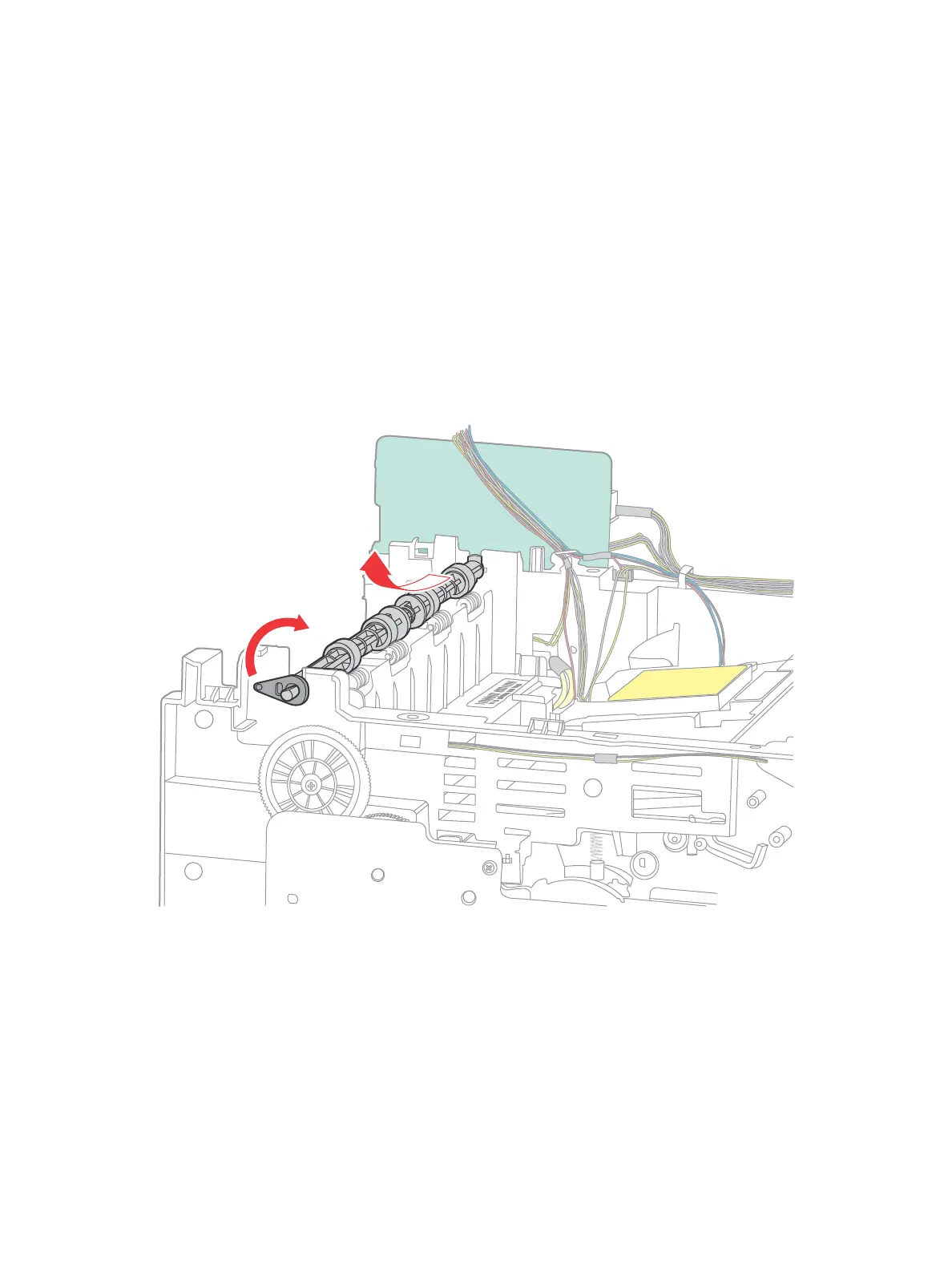

4. Slide the Exit Roller(s) (Parts List 3.4 Rear Frame, PL 3.4.7) off of the Exit Roller Frame (Parts List
3.1A Frame (2 of 2), PL 3.1A.34).
s3320-263

Xerox Phaser 3330 Specifications

General

Print Technology	Laser
Print Speed	Up to 42 ppm
Print Resolution	Up to 1200 x 1200 dpi
First Page Out Time	As fast as 6.5 seconds
Monthly Duty Cycle	Up to 80, 000 pages
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	850 sheets
Processor Speed	600 MHz
Memory	256 MB
Paper Output Capacity	150 sheets
Print Languages	PCL 5e, PCL 6, PostScript 3
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	Letter, Legal, Executive, A4, A5
Maximum Paper Size	8.5 x 14 in (Legal)
Weight	10.6 kg
