Xerox Phaser 3330 Service Manual

Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-108
7. Release all of the catches from the back of the assembly.

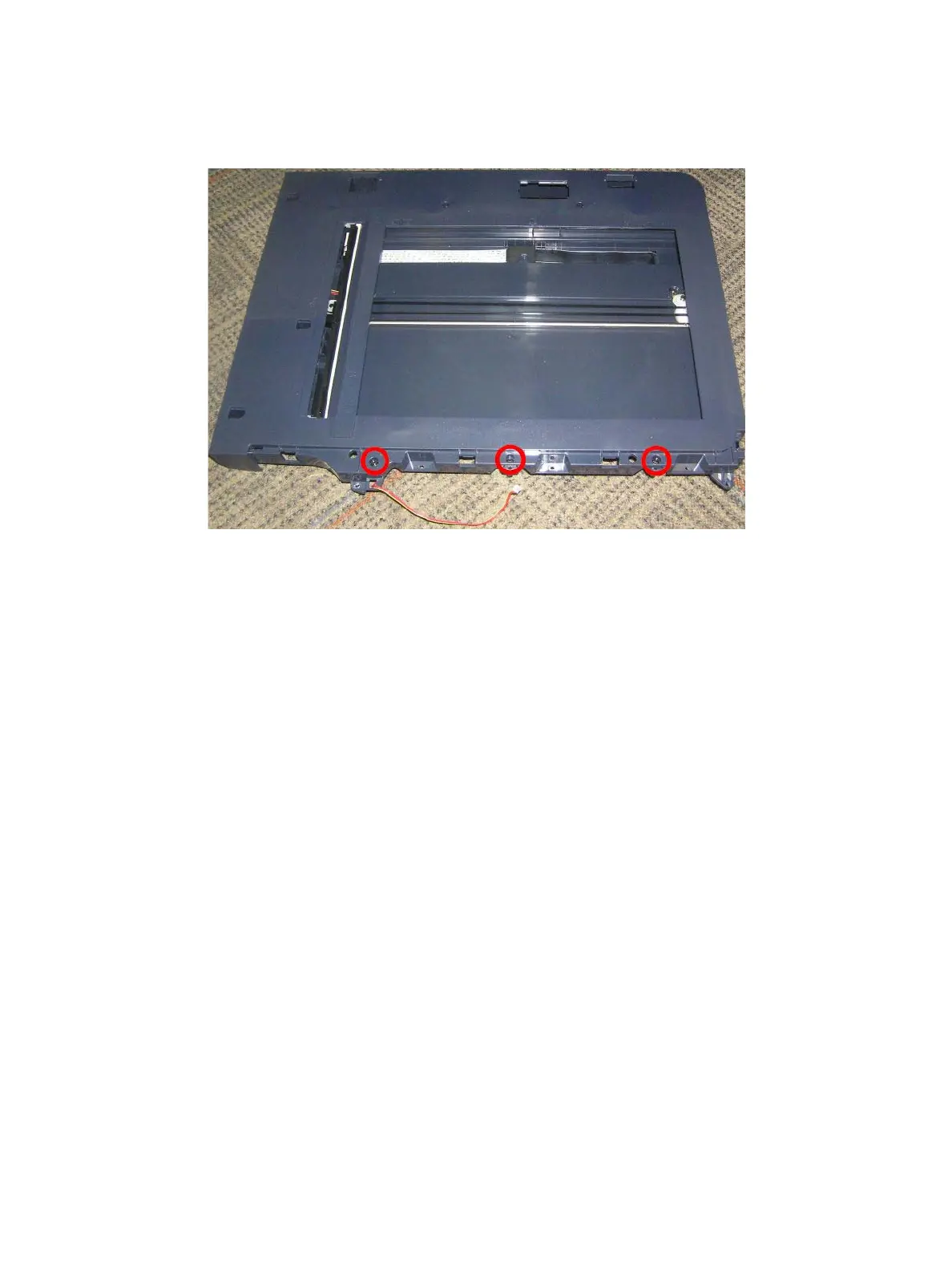

8. Remove 3 screws (black, flanged, tap, 10 mm).
9. Release the catch under the assembly at the back.
CAUTION: Keep the platen assembly platen-side up to prevent the scanning mechanism from
falling out.
10. Unthread the wire harness and the ribbon cable that pass through the lower scan frame and
remove the A4 Middle Platen (Parts List 9.2 WorkCentre 3335/3345 Platen, PL 9.2.7).
11. Remove the platen glass (Parts List 9.2 WorkCentre 3335/3345 Platen, PL 9.2.5).

Xerox Phaser 3330 Specifications

General

Print Technology	Laser
Print Speed	Up to 42 ppm
Print Resolution	Up to 1200 x 1200 dpi
First Page Out Time	As fast as 6.5 seconds
Monthly Duty Cycle	Up to 80, 000 pages
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	850 sheets
Processor Speed	600 MHz
Memory	256 MB
Paper Output Capacity	150 sheets
Print Languages	PCL 5e, PCL 6, PostScript 3
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	Letter, Legal, Executive, A4, A5
Maximum Paper Size	8.5 x 14 in (Legal)
Weight	10.6 kg
