Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-11

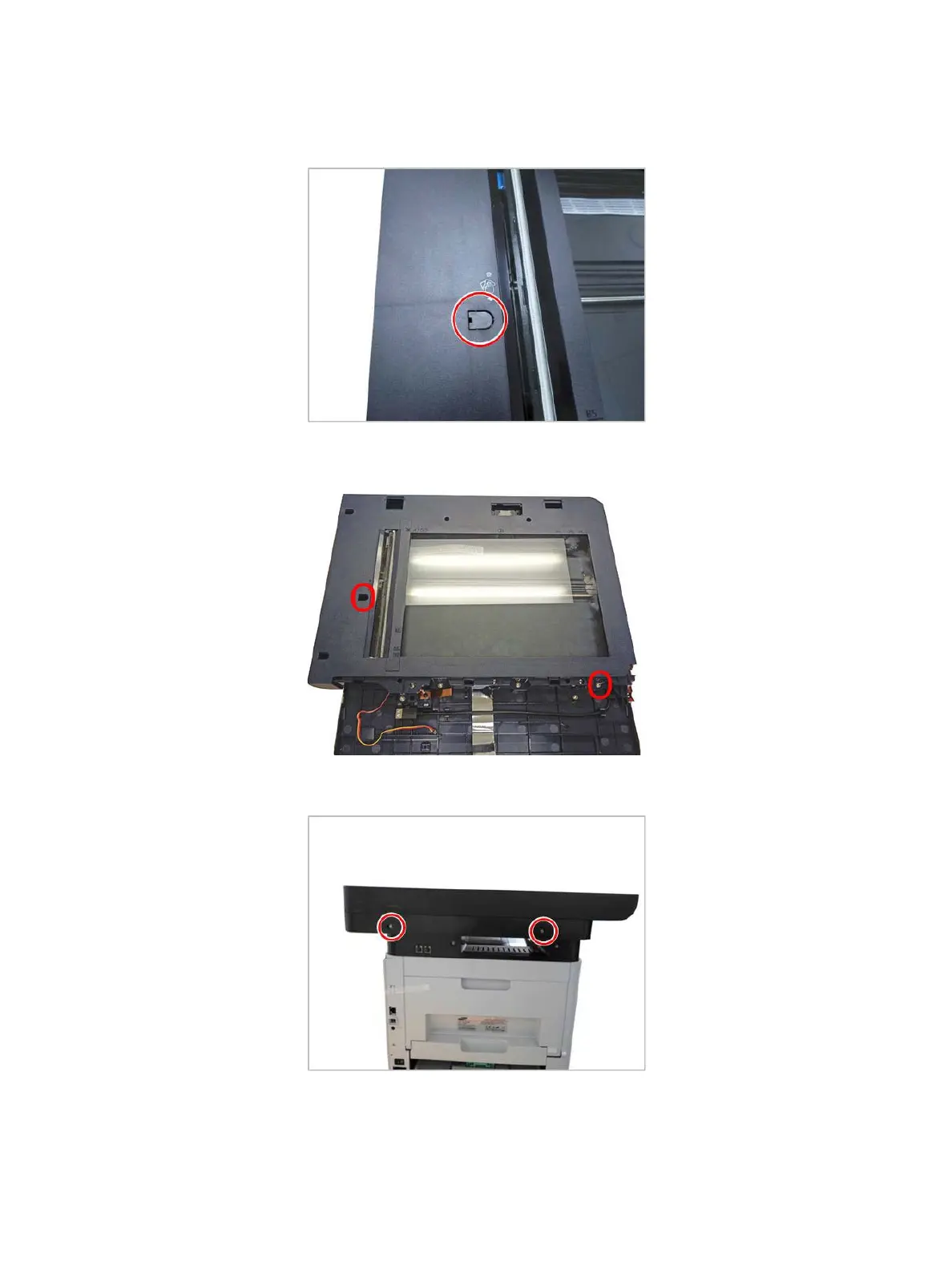

5. Remove the screw cap.
6. Remove the 2 screws.
7. Remove 2 screws from the rear.
