Xerox Phaser 3330

Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-24

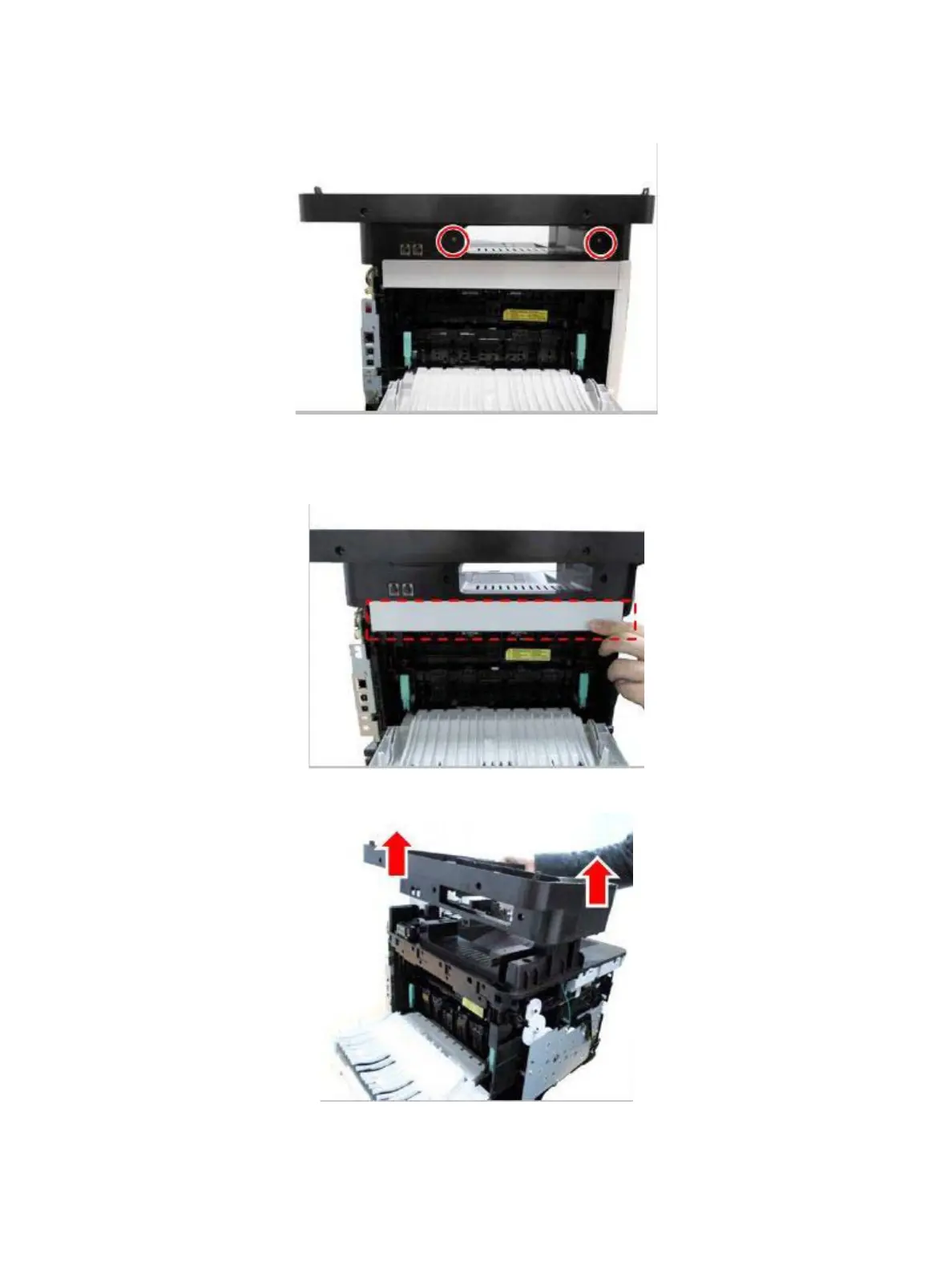

10. Remove screws (2).
11. If attached, remove the rear top Bezel. First pry out each end, and then pry out the top. This Bezel
fits very tightly
.
12. Lift up and release the Upper Middle Cover.
