Xerox Phaser 3330

Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-63

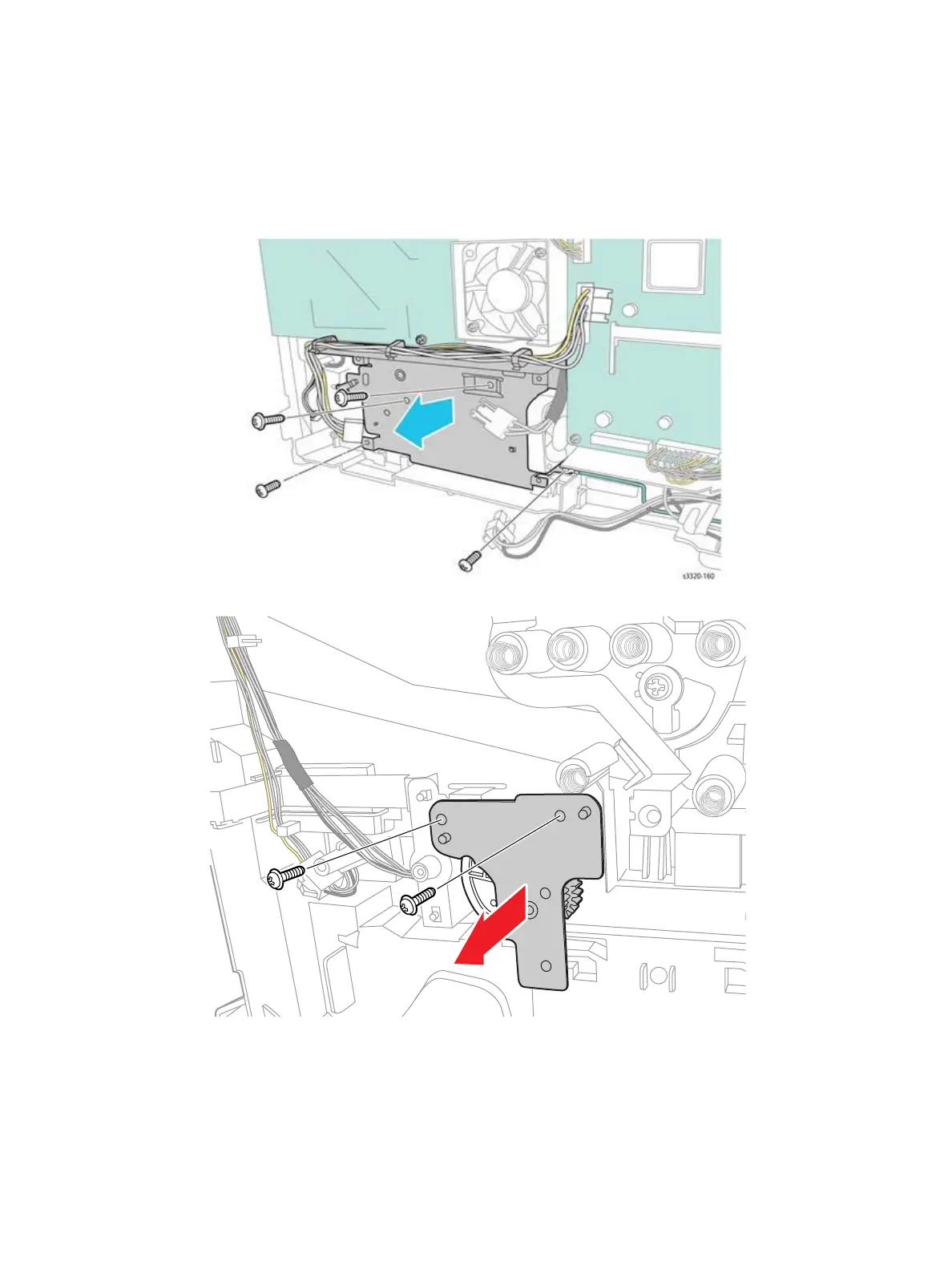

9. Phaser 3330: Remove 2 screw (silver, pan head, sheet metal, 6mm), and 2 screws (silver, flanged,
tap, 10 mm) and remove the SMPS L shield.
WorkCentre 3335/3345: Remove 2 screws (silver, sheet metal, 6mm) and 2 screw (silver, flanged,
tap, 10 mm) and remove the SMPS L shield.
10. Remove 2 screws (silver, flanged, tap, 10 mm) and remove the swing bracket.
