Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-104

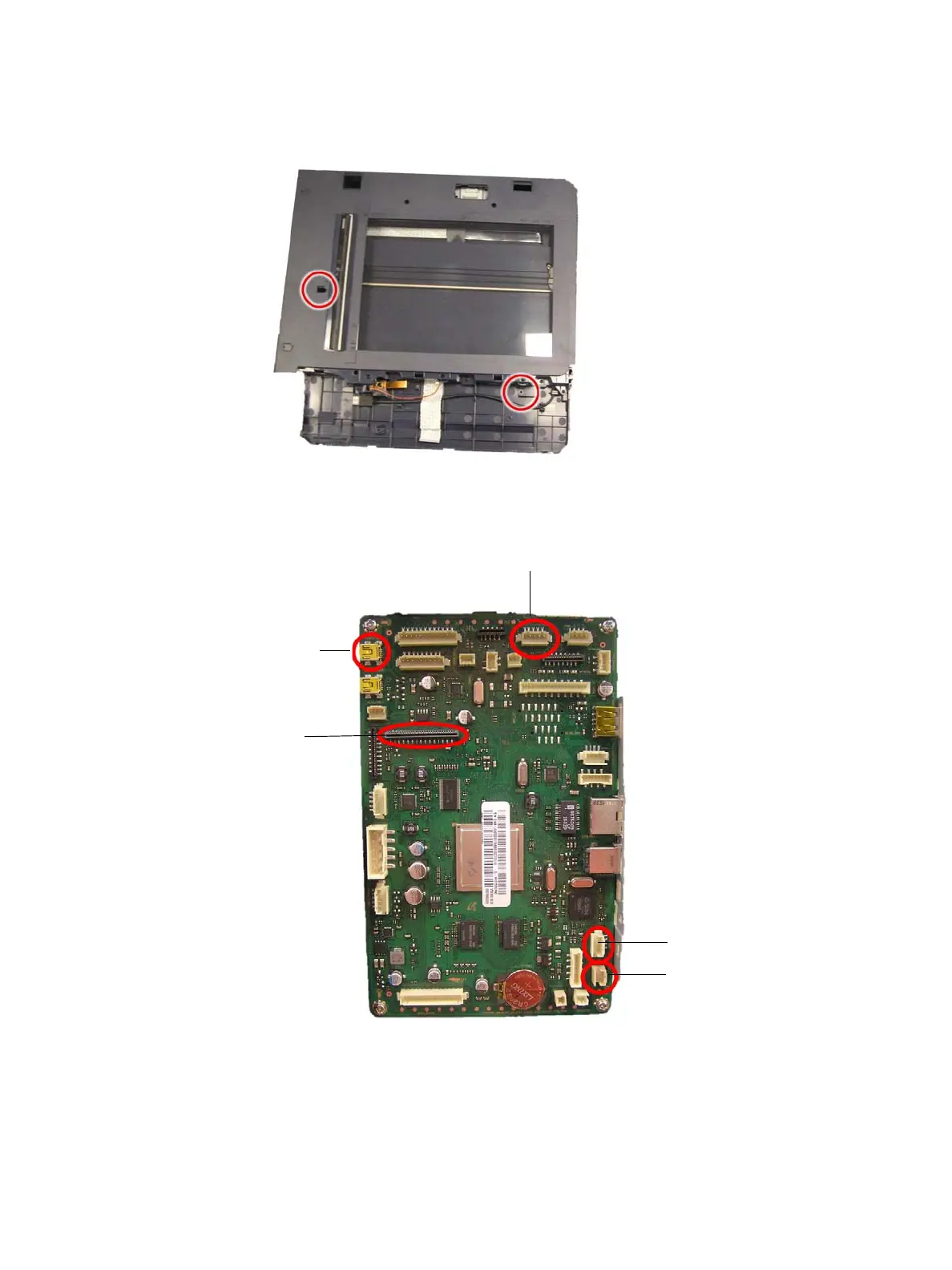

9. Remove the Control Panel (page 4-73).
10. Remove 2 screws.
11. Disconnect CN16, 25, 27, 33 and 37 on the Main PWB.
12. Lift the Scanner Assembly off of the printer.
To Next Page
