Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-123

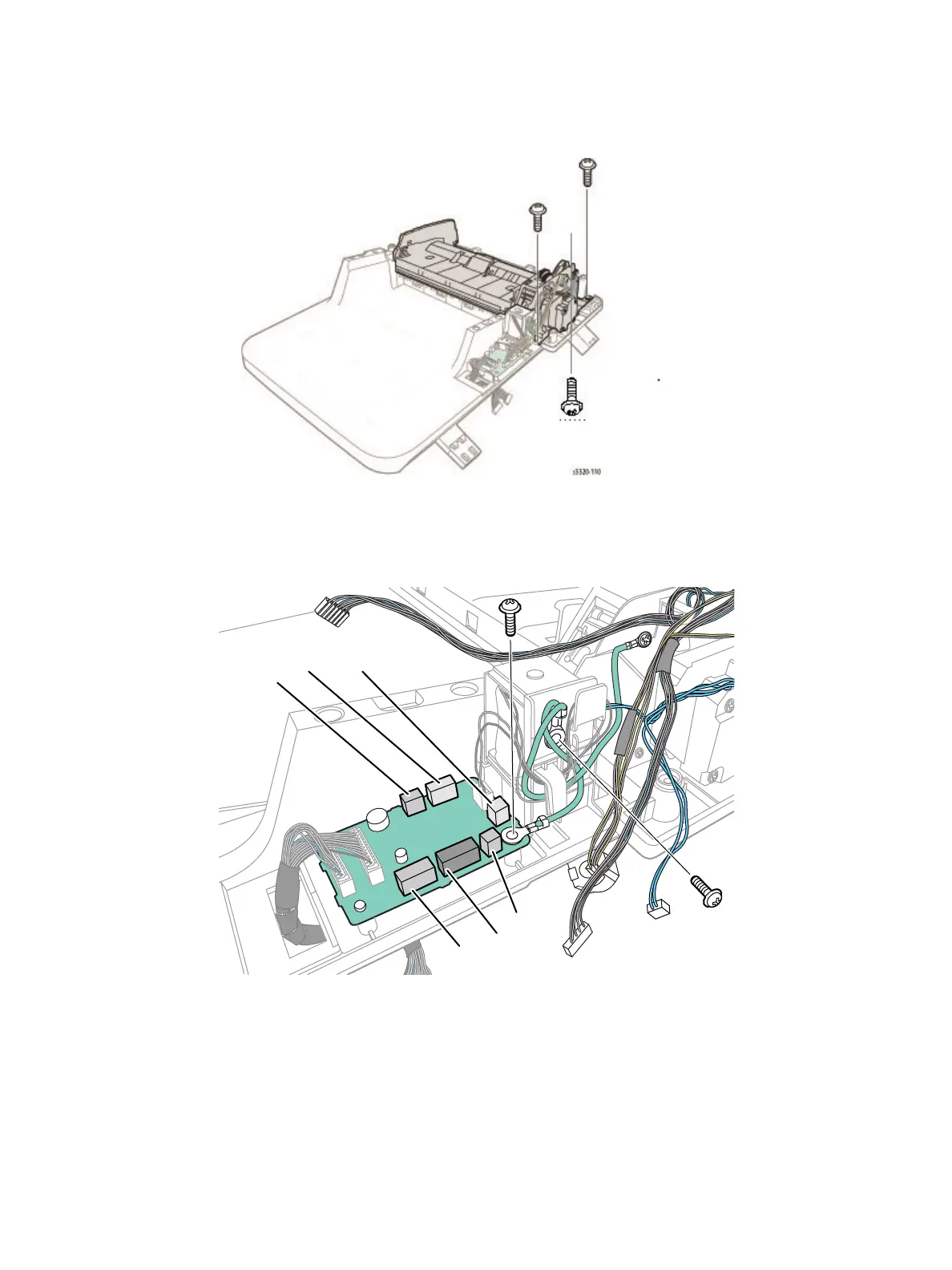

6. Remove 3 screws (silver, flanged, tap, 10 mm), 2 from the top of the DADF and 1 from the bottom.
7. Disconnect all connections on the DADF Board (Parts List 8.1A WorkCentre 3345 DADF, PL
8.1A.13) and unlace the wiring.
s3320-113
CN9
CN10
CN5
CN1
CN7
CN8
