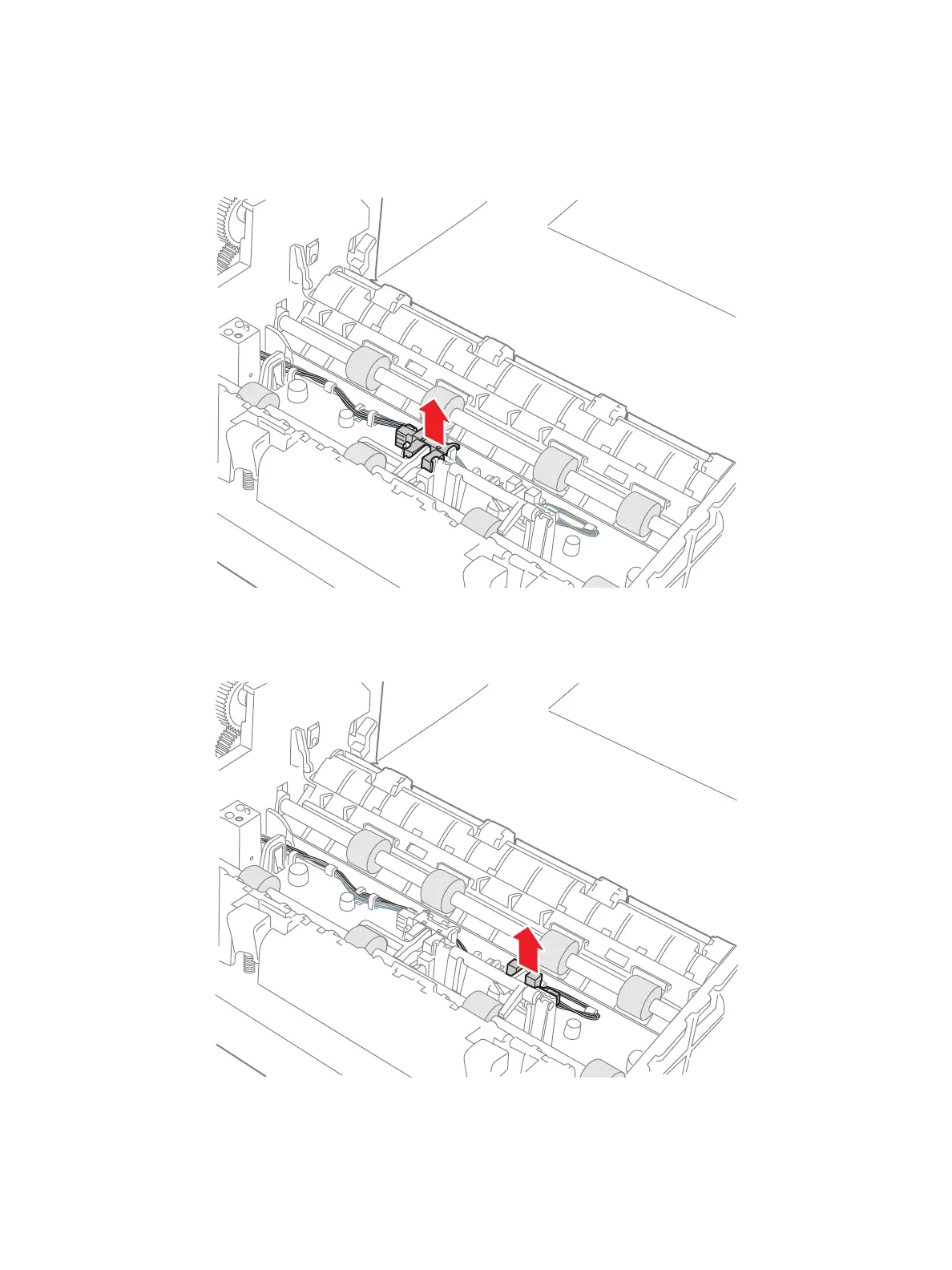

10. Unplug the wire connector of the sensor that is being replaced and remove the sensor. Feed
Sensor (P/J51):
Registration Sensor (P/J52):
s3320-134
s3320-135
