Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-136

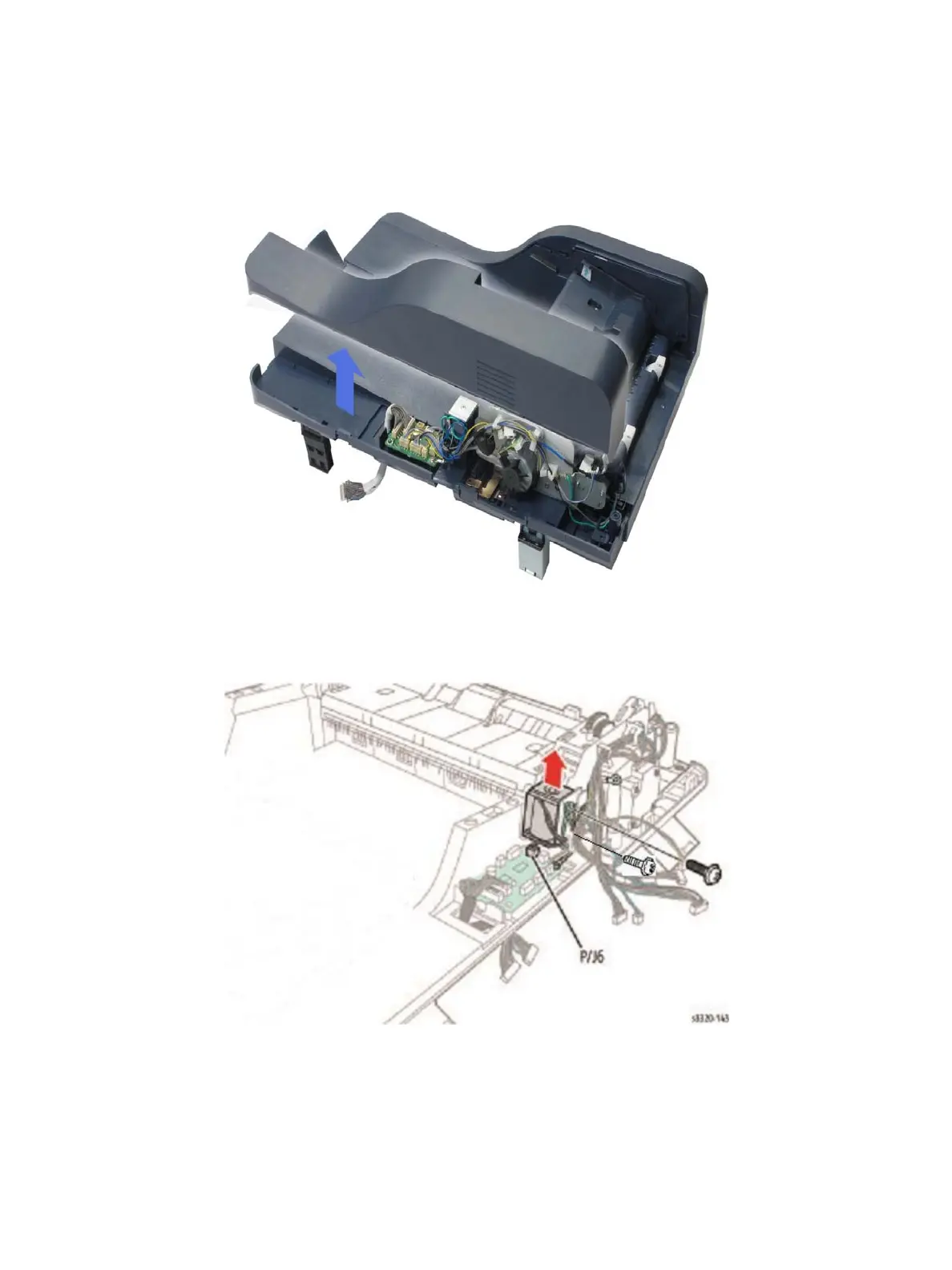

5. Remove the DADF Rear Cover.
6. Disconnect P/J6, remove 2 screws (silver, sheet metal, 6 mm) and remove the Lifting Solenoid
(Parts List 8.1A WorkCentre 3345 DADF, PL 8.1A.19).
To Next Page
