Phaser 4600/4620 Printer Service Manual
GP 15, GP 16
General Procedures/Information
Revision - Xerox Internal Use Only
GP 15 How to Safely Lift or Move Heavy Modules
Use this procedure when lifting or moving heavy modules.
Description
Most service procedures for optional feeder modules require separation of the printer and feed-
ers. Removal of the printer from the feeder requires 2 people. The Mailbox and Finisher mod-
ules only require 1 person for removal.
WARNING
Mandatory safety warning. This procedure must be performed by 2 people. The module
is heavy.
CAUTION
Always move the printer separately from the Finisher, Mailbox, and optional trays.
CAUTION
Failure to properly repackage the printer for shipment can result in damage to the printer.
Printer damage caused by improper packaging is not covered by the Xerox warranty, service
agreement, or Total Satisfaction Guarantee.
When removing heavy modules from the machine, observe the following:
1. Ensure that a suitable stable surface to support the module after removal is located in
close proximity to the machine.
2. Ensure the support surface height is between 750mm and 1000mm (30 inches and 39
inches).
3. Ensure there are no hazards or obstacles between the machine and the support surface.
4. Two people are required if the module is to be lifted on to the floor or lifted from the floor.

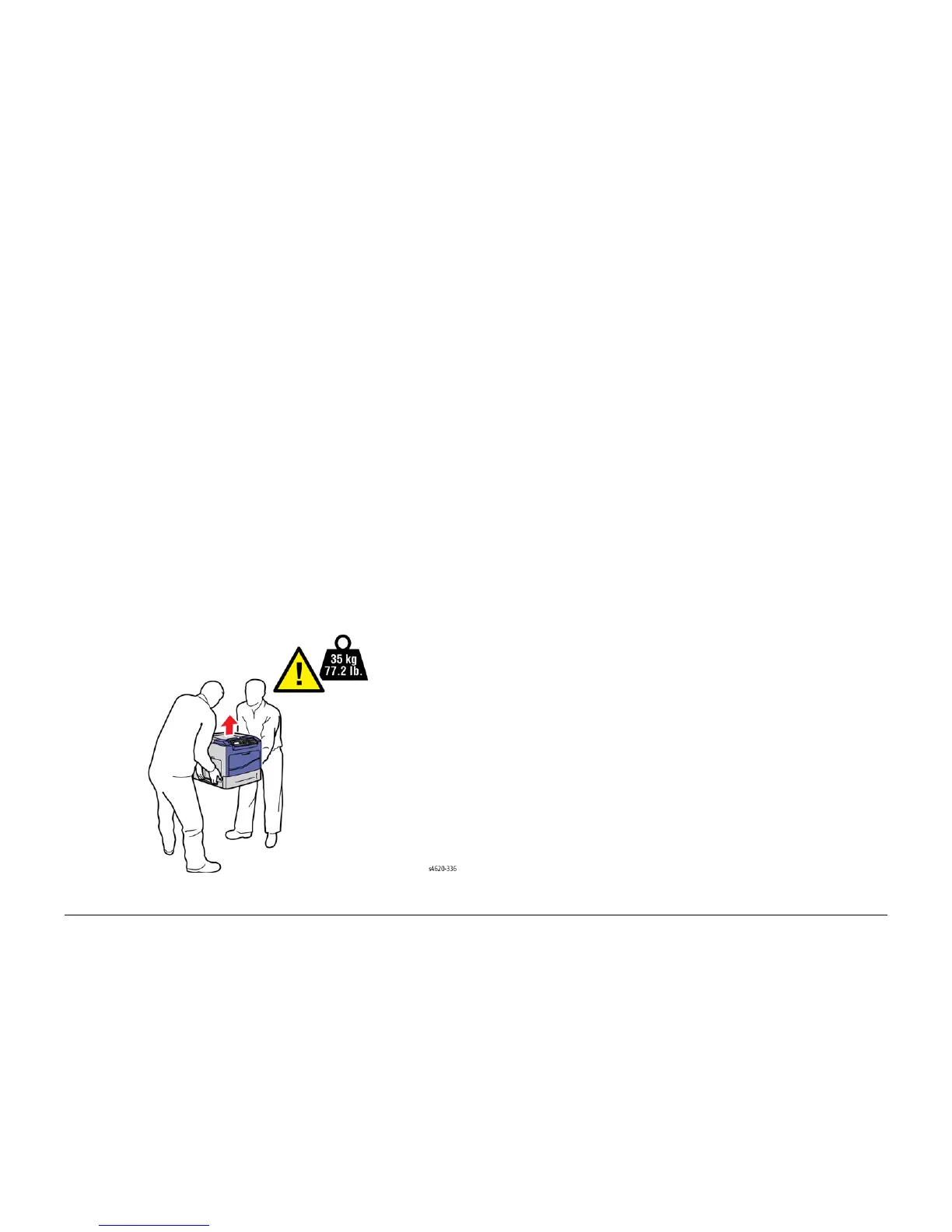

Figure 1 Printer lifting technique
GP 16 Machine Lubrication
Purpose
To give information on the use of lubricants.
Procedure
CAUTION
Only use lubricants as directed. Incorrect use of lubricants could seriously affect the perfor-
mance of the machine.
Take the following precautions when performing machine lubrication:
• Wear disposable gloves.
• Only use lubricants that are specified in the Parts List.
• Only lubricate parts of the machine as directed in the relevant RAPs, Repairs and Adjust-
ments etc.
• Apply only the smallest amount of lubricant, sufficient to lubricate the parts. To prevent
contamination, remove any surplus lubricant before the machine is run.
• Take great care not to contaminate other parts of the machine with the lubricant.

Xerox Phaser 4620 Specifications

General

Operating temperature (T-T)	50 - 90 °F
Operating relative humidity (H-H)	20 - 80 %
Color	No
I/O ports	10/100/1000 BaseT Ethernet, USB 2.0
Depth (min)	541 mm
Height (min)	420 mm
Minimum width	476 mm
Minimum weight	34.6 kg
Package length	698.49 mm
Print technology	Laser printing
Mac compatibility	Yes
Security features	Audit log, HTTPS, Image overwrite security, IP filtering, IPSec, Network authentication, SNMPv3, 802.1x
Storage drive type	Optional
Print memory (standard)	256 MB
Power consumption (active)	900 W
Minimum storage drive space	160 GB
Power consumption (standby)	93 W
Power consumption (PowerSave)	10 W
Storage media	HDD
Maximum internal memory	768 MB
Sound power level (standby)	39 dB
PCL fonts	93
Certification	Class 1 Laser Product, CE Marked, EMC Directive 89/336/EEC, EN 55022 Class B, EN 55024, FCC Part 15, Class B, Low Voltage Directive 73/23/EEC, RoHS Directive 2002/95/EC
Country of origin	China
Maximum duty cycle	275000 pages per month
Number of PostScript fonts	136
Number of print cartridges	1
Total input capacity	550 sheets
Total output capacity	500 sheets
Maximum input capacity	2000 sheets
Multi-Purpose tray input capacity	100 sheets
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	7.8 s
Print speed (black, normal quality, A4/US Letter)	65 ppm
Display	LCD
Package weight	40200 g
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Card stock, Labels, Pre-Printed, Recycled paper, Transparencies
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Export Control Classification Number (ECCN)	EAR99

Weight and Dimensions

Width	627.37 mm
Height	685.79 mm
Dimensions (WxDxH)	476 x 420 x 541 mm
