Xerox Phaser 4620 - PL 8.40 Optional Feeder Feed Assembly

5/2011
5-19
Phaser 4600/4620 Printer Service Manual
PL 8.40
Parts Lists
Revision - Xerox Internal Use Only

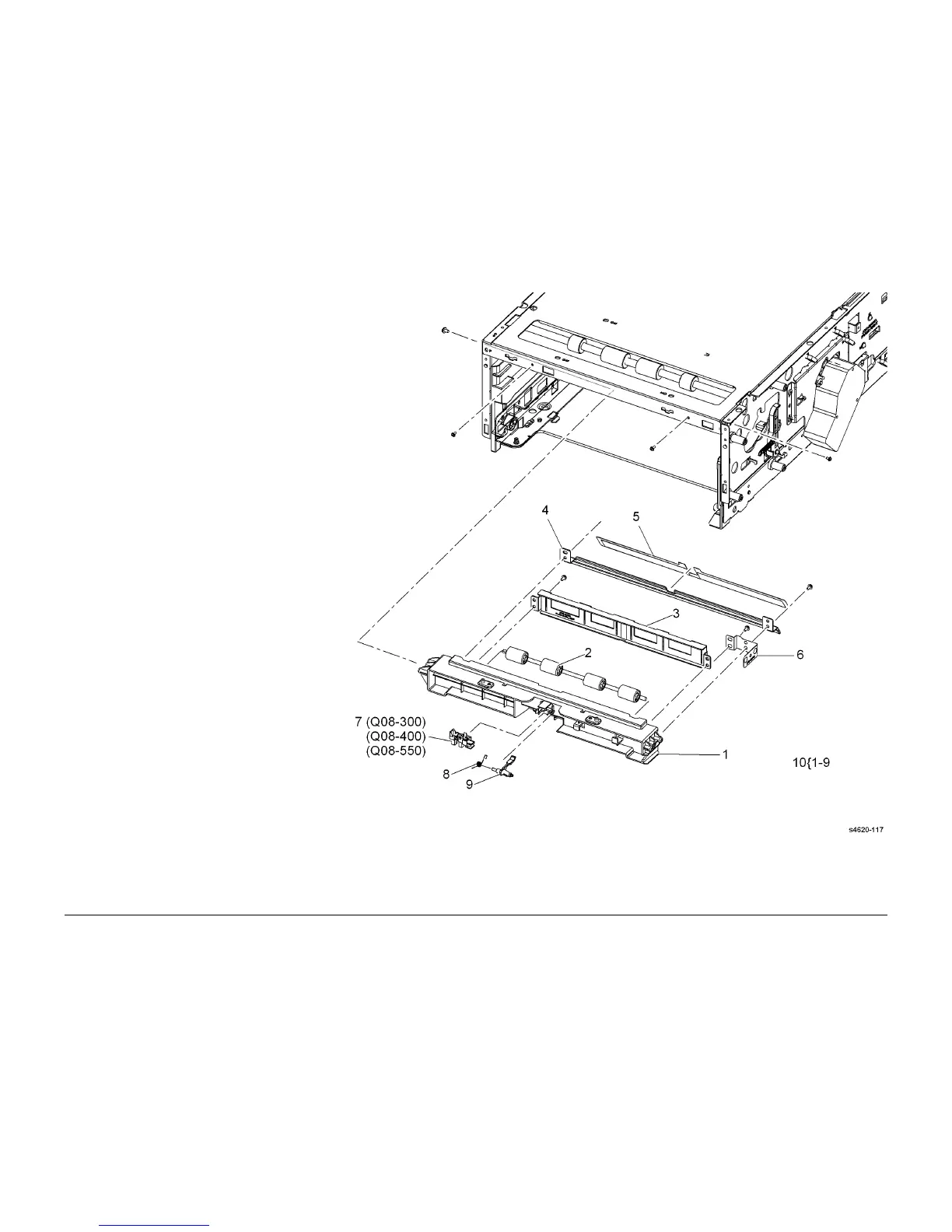

PL 8.40 Optional Feeder Feed
Assembly
Item Part Description
1 – Feed guide frame (P/O PL 8.40
Item 10)
2 – Idle roller assembly (P/O PL 8.40
Item 10)
3 – Feed guide plate (P/O PL 8.40 Item
10)
4 – Paper guide plate (P/O PL 8.40
Item 10)
5 – Mylar guide (P/O PL 8.40 Item 10)
6 – Ground strip (P/O PL 8.40 Item 10)
7 130N01628 Tray 3 take away sensor (Q08-
300), Tray 4 take away sensor
(Q08-400), Tray 5 take away
sensor (Q08-550), Tray 6 take
away sensor (REP 8.44) (see
NOTE)
8 – Spring (P/O PL 8.40 Item 10)
9 – Take away sensor actuator (P/O PL
8.40 Item 10) (REP 8.43)
10 – Feed assembly (Not Spared) (REP
8.46)
NOTE: The component control codes are dependent on the
machine configuration. The code for tray 6 was not known at
time of publication.
