Xerox Phaser 4620 - REP 28.6 Rear Door; REP 28.7 Rear Door Fan

5/2011
4-151
Phaser 4600/4620 Printer Service Manual
REP 28.6, REP 28.7
Repairs
Revision - Xerox Internal Use Only
REP 28.6 Rear Door
Parts List on PL 28.10 Item 3
Removal
1. Open the Rear Door.
2. Raise the right side to release the boss from the slot and rotate the door away from the
printer, Figure 1.

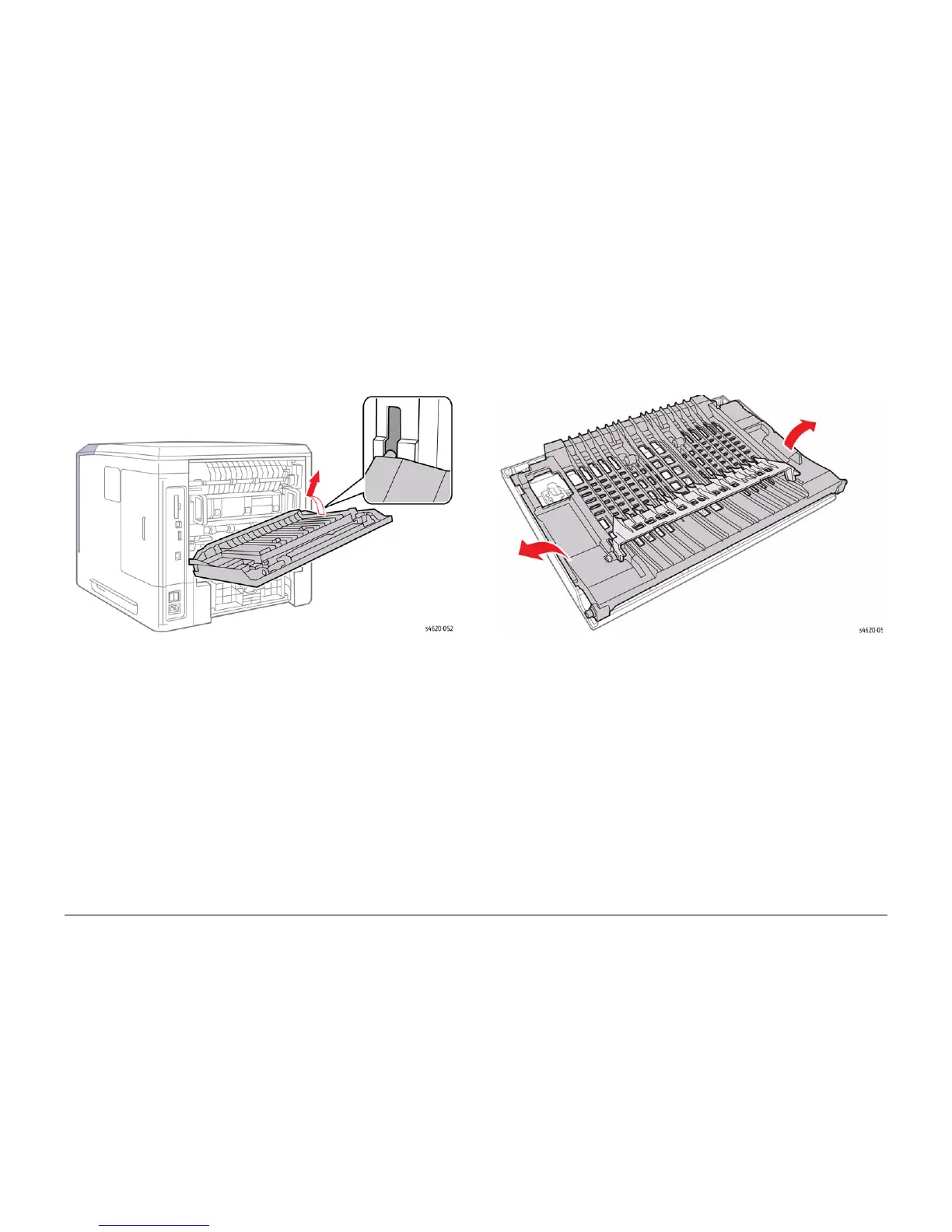

Figure 1 Remove the Rear Door
REP 28.7 Rear Door Fan
Parts List on PL 28.25 Item 13
Removal
1. Remove the Rear Door, REP 28.6.
2. Flex the diverter gate at the center and remove.
3. Flex the duplex chute to release the bosses from the door, Figure 1.
Figure 1 Remove the duplex chute
4. Disconnect P/J28 and release 4 hooks that secure the Fan to the door, Figure 2.
