Xerox Phaser 4620 - REP 2.1 Control Panel Assembly

5/2011
4-11
Phaser 4600/4620 Printer Service Manual
REP 2.1
Repairs
Revision - Xerox Internal Use Only
REP 2.1 Control Panel Assembly
Parts List on PL 2.10 Item 1
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the Duplex Unit, REP 10.1.
2. Remove the Waste Toner Cartridge.
3. Remove the Left Cover, REP 28.3.
4. Remove the Right Cover, REP 28.2.
5. Remove the Top Cover, REP 28.5.

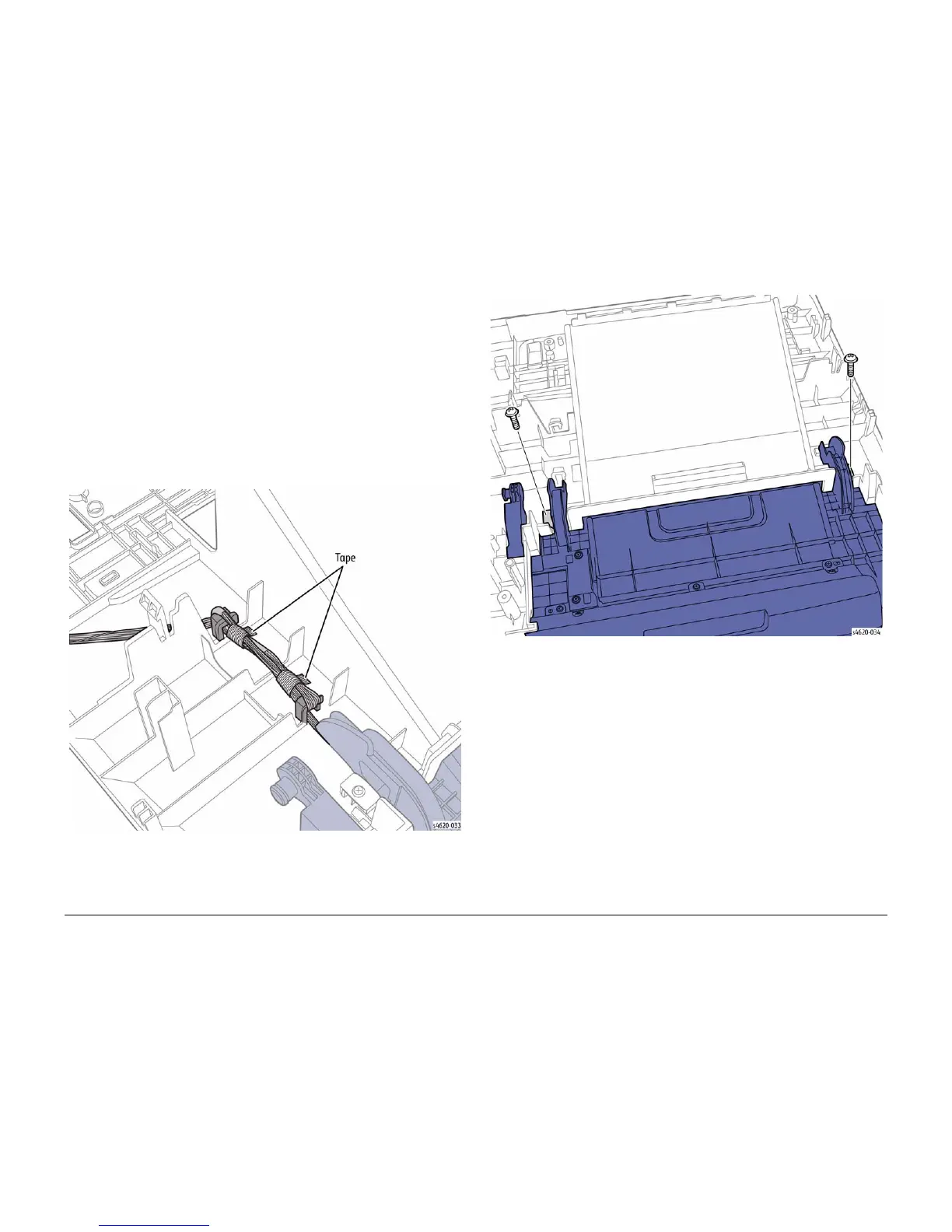

6. Release the Control Panel harness from the hooks, Figure 1.
Figure 1 Release the Control Panel harness
7. Remove 2 screws (plastic) that secure the Top Door hinges to the Top Cover, Figure 2.
Figure 2 Remove the Top Door hinges
8. Release 2 bosses that secure the Top Door to the Top Cover, Figure 3.
