Xerox Phaser 4620 - PL 12.45 Finisher Stapler Assembly

5/2011
5-45
Phaser 4600/4620 Printer Service Manual
PL 12.45
Parts Lists
Revision - Xerox Internal Use Only

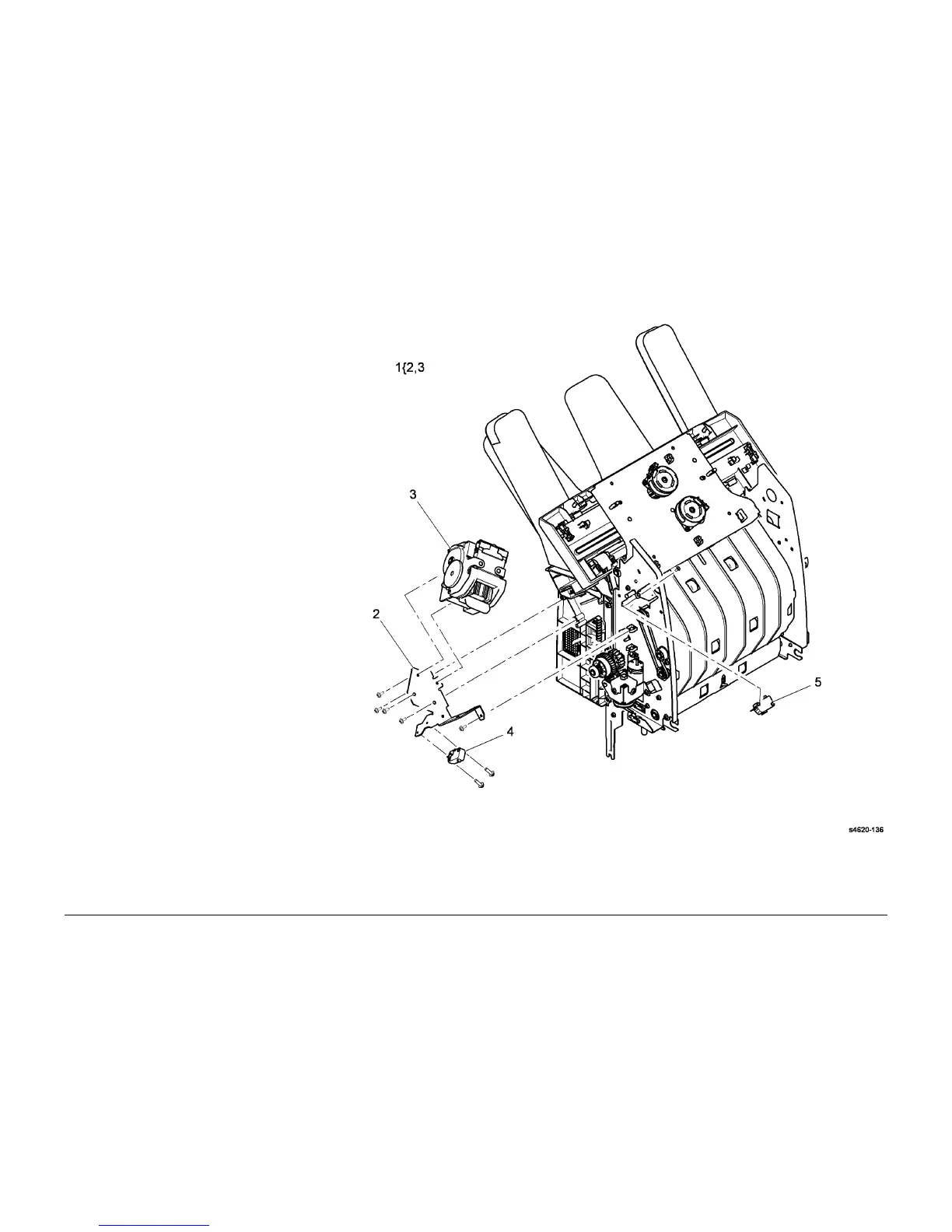

PL 12.45 Finisher Stapler Assembly
Item Part Description
1 029N00417 Stapler assembly (REP 12.14)
2 – Stapler bracket (P/O PL 12.45 Item
1)
3 – Stapler (P/O PL 12.45 Item 1)
4 – Staple cartridge door interlock
switch (S12-870) (Not Spared)
(REP 12.13)
5 – Staple interlock switch (S12-890)
(Not Spared) (REP 12.16)
