Xerox Phaser 4620 - Feeder and Finisher Components

5/2011
7-9
Phaser 4600/4620 Printer Service Manual
WD 12, WD 13
Wiring
Revision - Xerox Internal Use Only
WD 12 SMPS

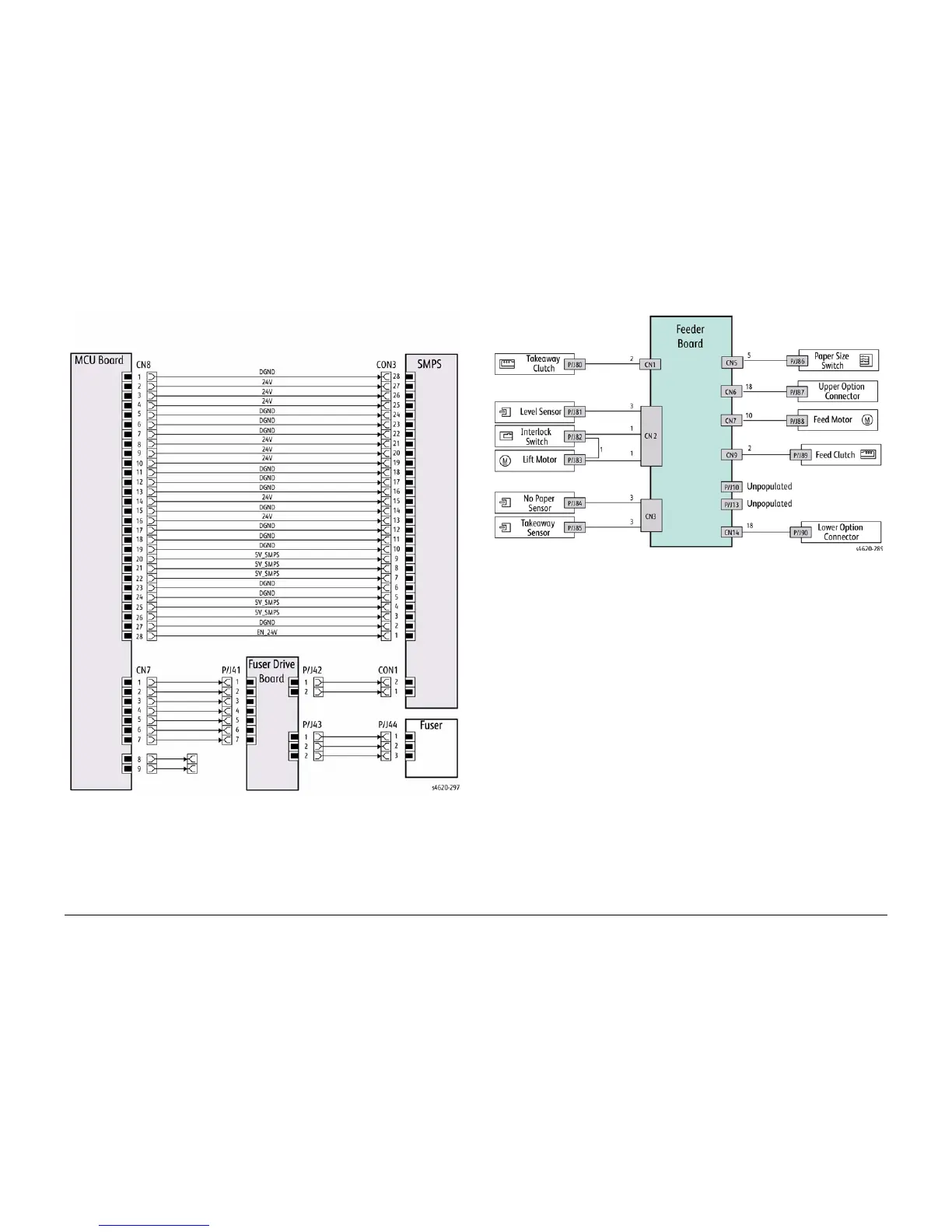

Figure 1 SMPS connections
WD 13 500-Sheet Feeder
Figure 1 500-sheet Feeder system diagram
