Phaser 4600/4620 Printer Service Manual
REP 12.3
Repairs
Revision - Xerox Internal Use Only
REP 12.3 Finisher Stacker Full Sensor
Parts List on PL 12.15 Item 3
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Separate the Finisher from the printer, GP 14.
2. Remove the left cover, REP 12.1.
3. Remove 4 screws (2 metal, 2 plastic) that secure the Control Board bracket to the Fin-
isher, Figure 1.

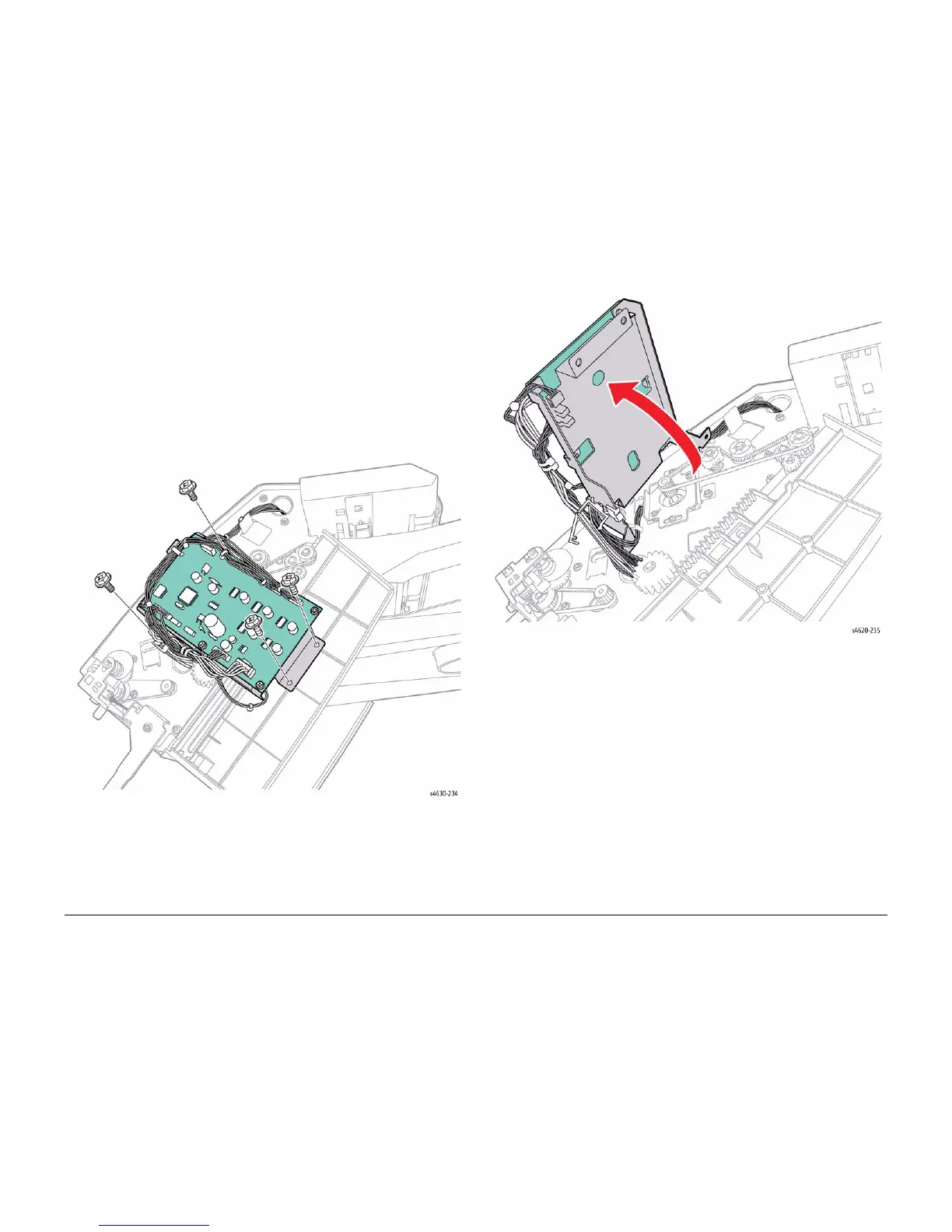

Figure 1 Remove the Control Board bracket screw,
4. Release the harness clamp and lift the front of the bracket, Figure 2.
Figure 2 Position the Control Board bracket
5. Disconnect P/J113 from the Stacker Full Sensor and release the 3 hooks to remove the
sensor, Figure 3.
To Next Page
