Phaser 4600/4620 Printer Service Manual
REP 10.12, REP 10.13
Revision - Xerox Internal Use Only
Repairs
4. Remove 3 screws (Black, plastic) that secure the Thermostat to the Fuser.

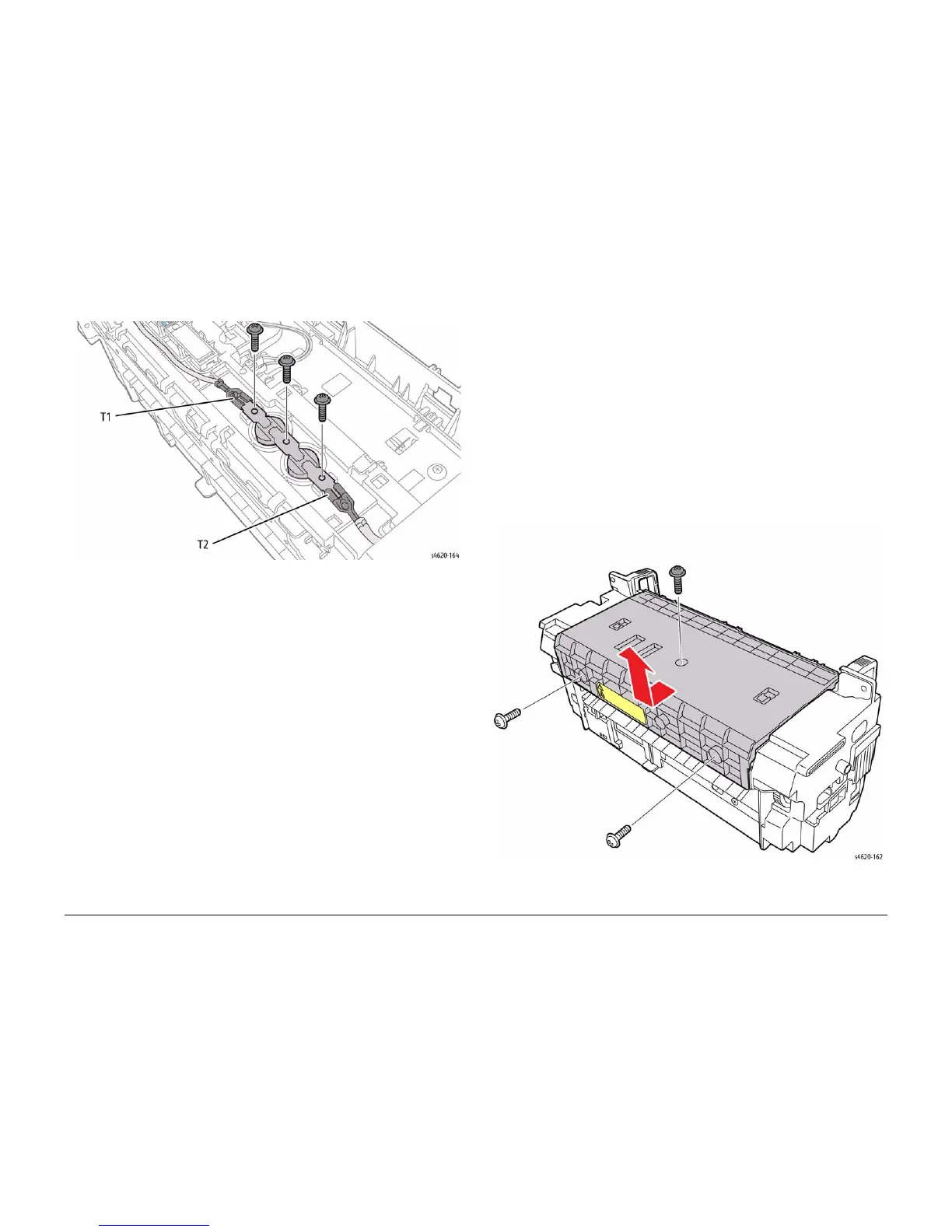

5. Disconnect 2 terminals (T1, T2) to remove the Thermistor from the Fuser, Figure 2.
Figure 2 Remove the Thermostat
REP 10.13 Fuser Heat Lamp
Parts List on PL 10.11 Item 17
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Do not touch the Fuser while it is hot.
CAUTION
Fuser plastic is easily over stressed or broken. Use care when releasing hooks that secure
Fuser covers and guides.
1. Remove the Rear Door, REP 28.6.
2. Remove the Fuser, REP 10.10.
3. Remove 3 screws (2 metal) and (1 plastic) that secure the Fuser top cover, Figure 1.
Figure 1 Remove the Fuser top cover
4. Remove 3 screws (Black, plastic) that secure the duplex cover to the Fuser, Figure 2.
