Xerox Phaser 4620 - PL 28.25 Rear Door Assembly

5/2011
5-49
Phaser 4600/4620 Printer Service Manual
PL 28.25
Parts Lists
Revision - Xerox Internal Use Only

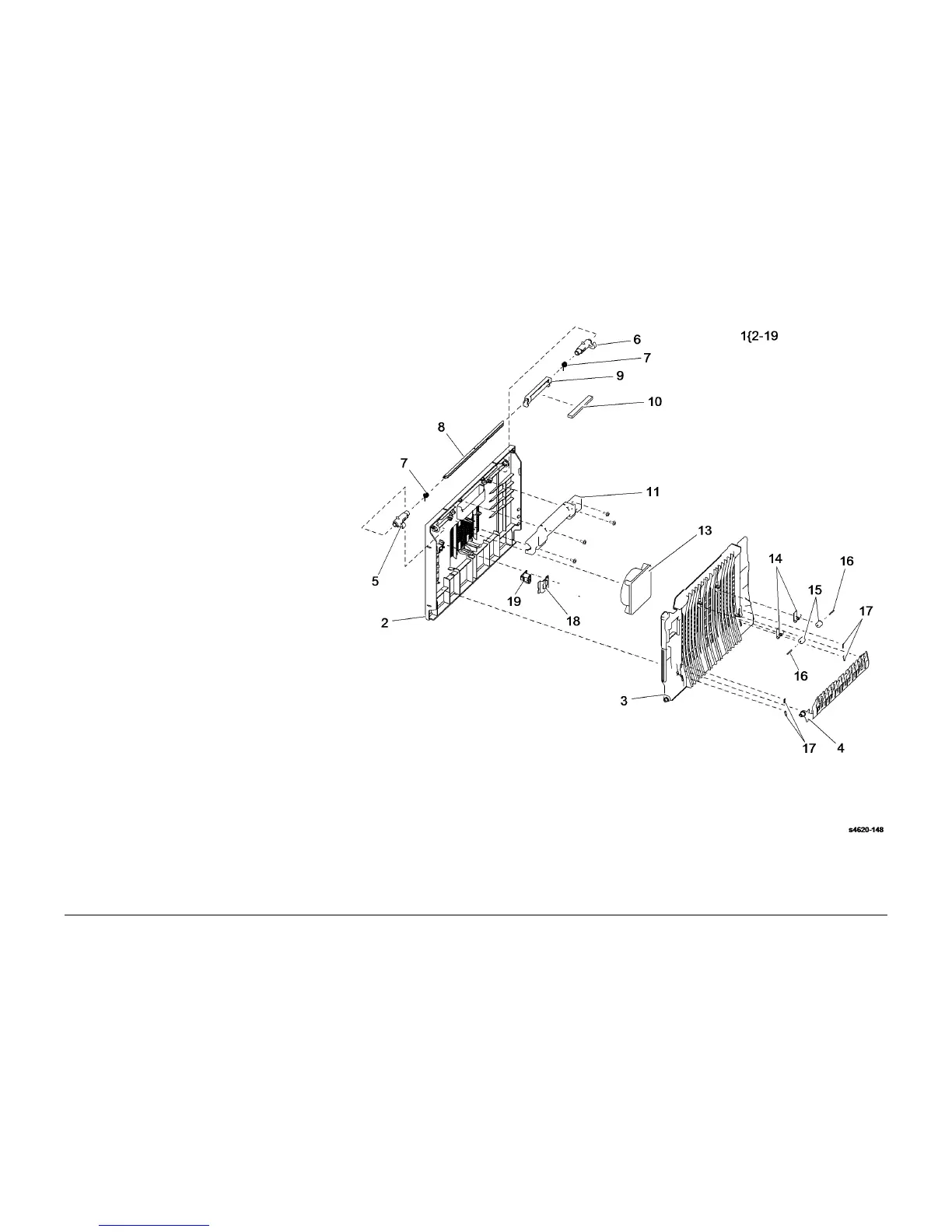

PL 28.25 Rear Door Assembly
Item Part Description
1 002N02996 Rear door assembly (REP 28.5)
2 – Rear cover (P/O )
3 – Rear guide (P/O PL 28.15 Item 1)
4 – Exit guide (P/O PL 28.15 Item 1)
5 – Rear left locker (P/O PL 28.15 Item
1)
6 – Rear right locker (P/O PL 28.15
Item 1)
7 – Spring (P/O PL 28.15 Item 1)
8 – Handle bracket (P/O PL 28.15 Item
1)
9 – Rear cover handle (P/O PL 28.15
Item 1)
10 – Handle sponge (P/O PL 28.15 Item
1)
11 – Locker handle (P/O PL 28.15 Item
1)
12 – Not used
13 127N07668 Rear door fan (MOT10-500) (REP
28.7)
14 – Tension spring (P/O PL 28.15 Item
1)
15 – Roller (P/O PL 28.15 Item 1)
16 – Idle shaft (P/O PL 28.15 Item 1)
17 – Damper pad (P/O PL 28.15 Item 1)
18 – Female bracket (P/O PL 28.15 Item
1)
19 – Rear door switch (Q01-300) (P/O
PL 28.15 Item 1)
