Xerox Phaser 4620 - REP 12.2 Finisher Control Board

5/2011
4-128
Phaser 4600/4620 Printer Service Manual
REP 12.1, REP 12.2
Revision - Xerox Internal Use Only
Repairs

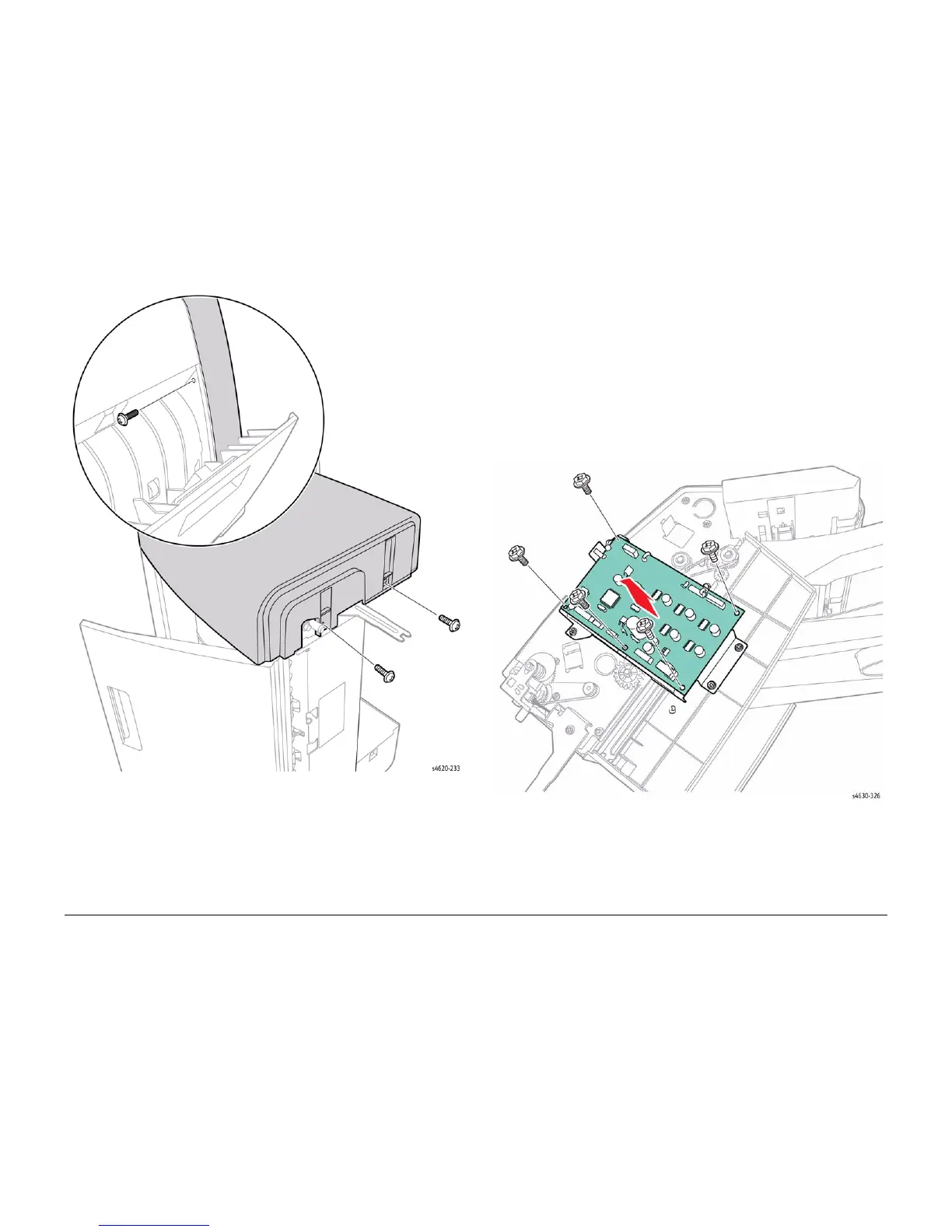

Figure 1 Remove the left cover
REP 12.2 Finisher Control Board
Parts List on PL 12.15 Item 2
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Separate the Finisher from the printer, GP 14.
2. Remove the left cover, REP 12.1.
3. Disconnect all connections to the Control Board.
4. Remove 5 screws (metal) that secure the board to the bracket, Figure 1.
Figure 1 Remove the Finisher Control Board
