Xerox Phaser 4620 - PL 10.11 Fuser Assembly (2 of 2)

5/2011
5-26
Phaser 4600/4620 Printer Service Manual
PL 10.11
Revision - Xerox Internal Use Only
Parts Lists

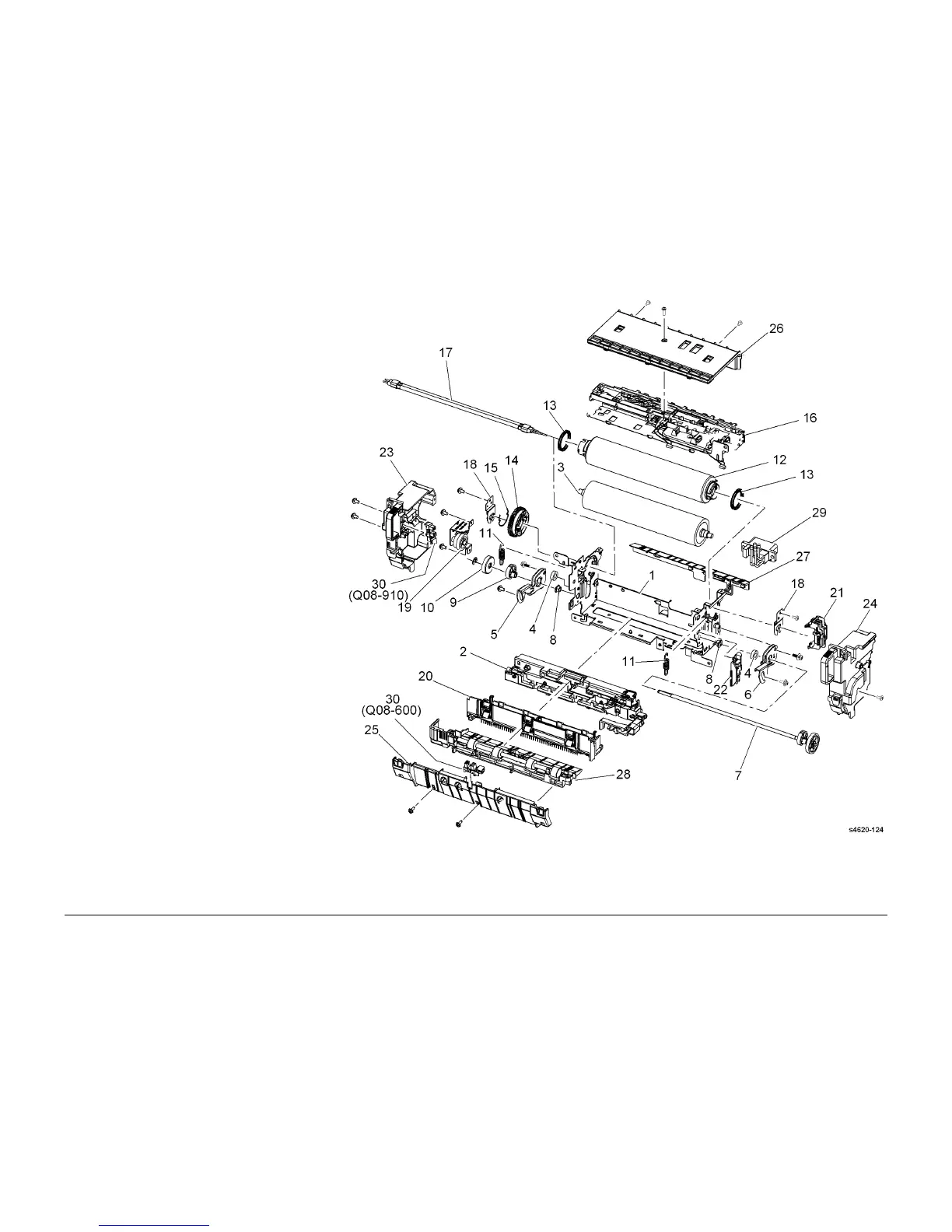

PL 10.11 Fuser Assembly (2 of 2)
Item Part Description
1 – Lower bracket (P/O PL 10.10 Item
1)
2 – Cleaning roller assembly (P/O PL
10.10 Item 1)
3 022N02476 Pressure roller (REP 10.16)
4 013N13847 Roller bearing
5 – Right bracket (P/O PL 10.10 Item 1)
6 – Left bracket (P/O PL 10.10 Item 1)
7 – Cam shaft assembly (P/O PL 10.10
Item 1)
8 – Bush (P/O PL 10.10 Item 1)
9 – Release cam (P/O PL 10.10 Item 1)
10 – Shaft holder (P/O PL 10.10 Item 1)
11 – Spring (P/O PL 10.10 Item 1)
12 022N02477 Heat roller (REP 10.15)
13 013N13929 Heat roller bearing (REP 10.15)
14 007N01657 Fuser gear (REP 10.14)
15 – Spring clamp (P/O PL 10.10 Item 1)
16 – Upper fuser bracket assembly
(REF: PL 10.15)
17 122N00290 Heat lamp (110V) (REP 10.13)
– 122N00291 Heat lamp (220V)
18 – Lamp bracket (P/O PL 10.10 Item
1)
19 – Gear bracket (P/O PL 10.10 Item 1)
20 – Upper exit guide (P/O PL 10.10
Item 1)
21 – AC harness holder (P/O PL 10.10
Item 1)
22 – Sub AC harness holder (P/O PL
10.10 Item 1)
23 – Right cover (P/O PL 10.10 Item 1)
24 – Left cover (P/O PL 10.10 Item 1)
25 – Duplex cover (P/O PL 10.10 Item 1)
26 – Upper cover (P/O PL 10.10 Item 1)
27 – Input guide (P/O PL 10.10 Item 1)
28 – Lower fuser exit guide assembly
(REF: PL 10.20)
29 – Connector (P/O PL 10.10 Item 1)
30 130N01628 Fuser exit sensor (Q08-600)/ Fuser
home sensor (Q10-910)
