Xerox Phaser 4620 - PL 10.20 Lower Fuser Exit Guide Assembly

5/2011
5-28
Phaser 4600/4620 Printer Service Manual
PL 10.20
Revision - Xerox Internal Use Only
Parts Lists

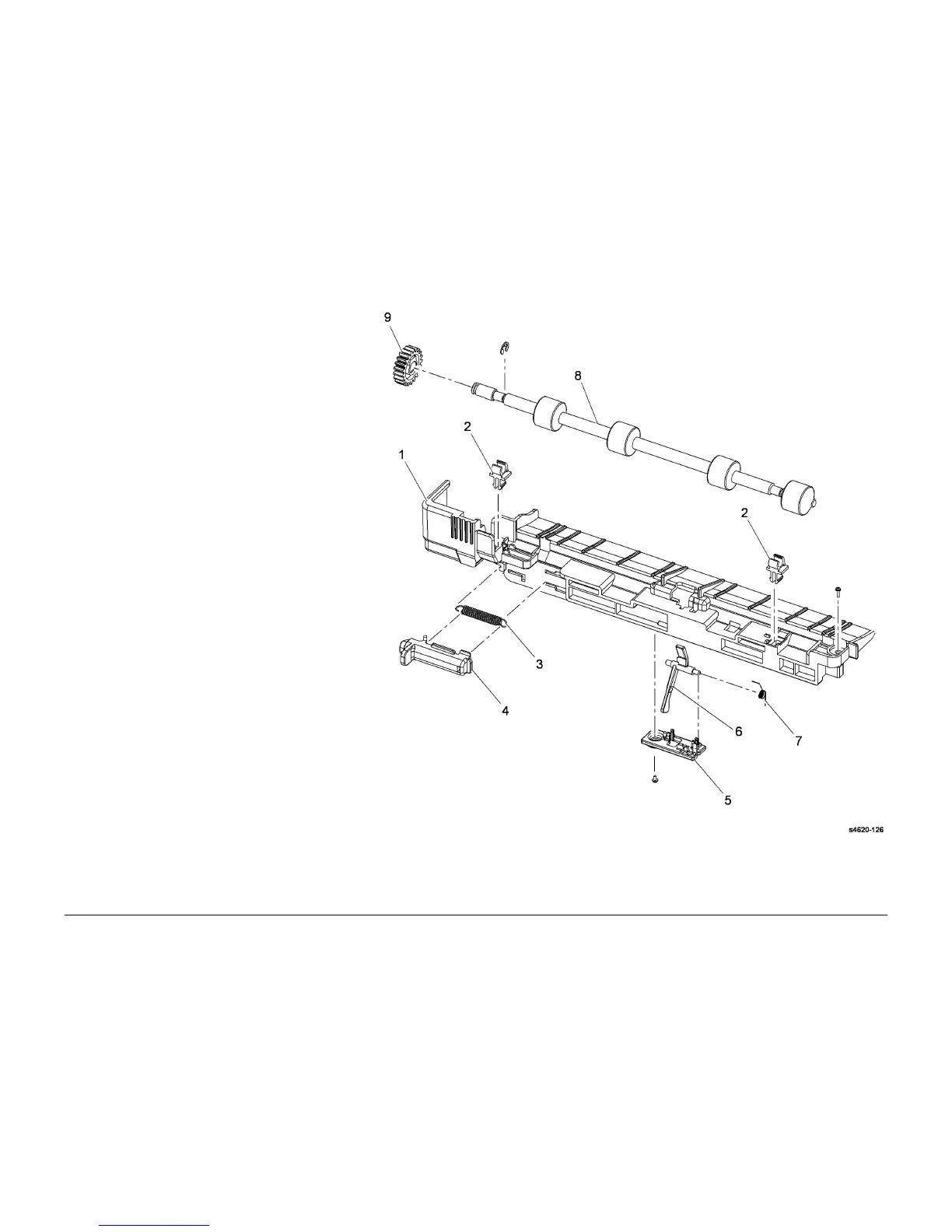

PL 10.20 Lower Fuser Exit Guide
Assembly
Item Part Description
1 – Lower exit guide (Not Spared)
2 – Clip (Not Spared)
3 – Spring (Not Spared)
4 – Rear lever (Not Spared)
5 – Actuator holder (Not Spared)
6 – Fuser exit sensor actuator (Not
Spared)
7 – Actuator spring (Not Spared)
8 – Upper fuser exit roller (Not Spared)
9 – Duplex exit gear (Not Spared)
