Phaser 4600/4620 Printer Service Manual
REP 28.4
Repairs
Revision - Xerox Internal Use Only
REP 28.4 Front Cover
Parts List on PL 28.10 Item 5
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove Tray 2.
2. Raise the Top Door.
3. Remove 2 screws that secure the front of the Top Cover.
4. Position the front of the printer at the edge of the work surface and tilt the cover outward
at the bottom, then lower the cover to release the bosses at the top, Figure 1.

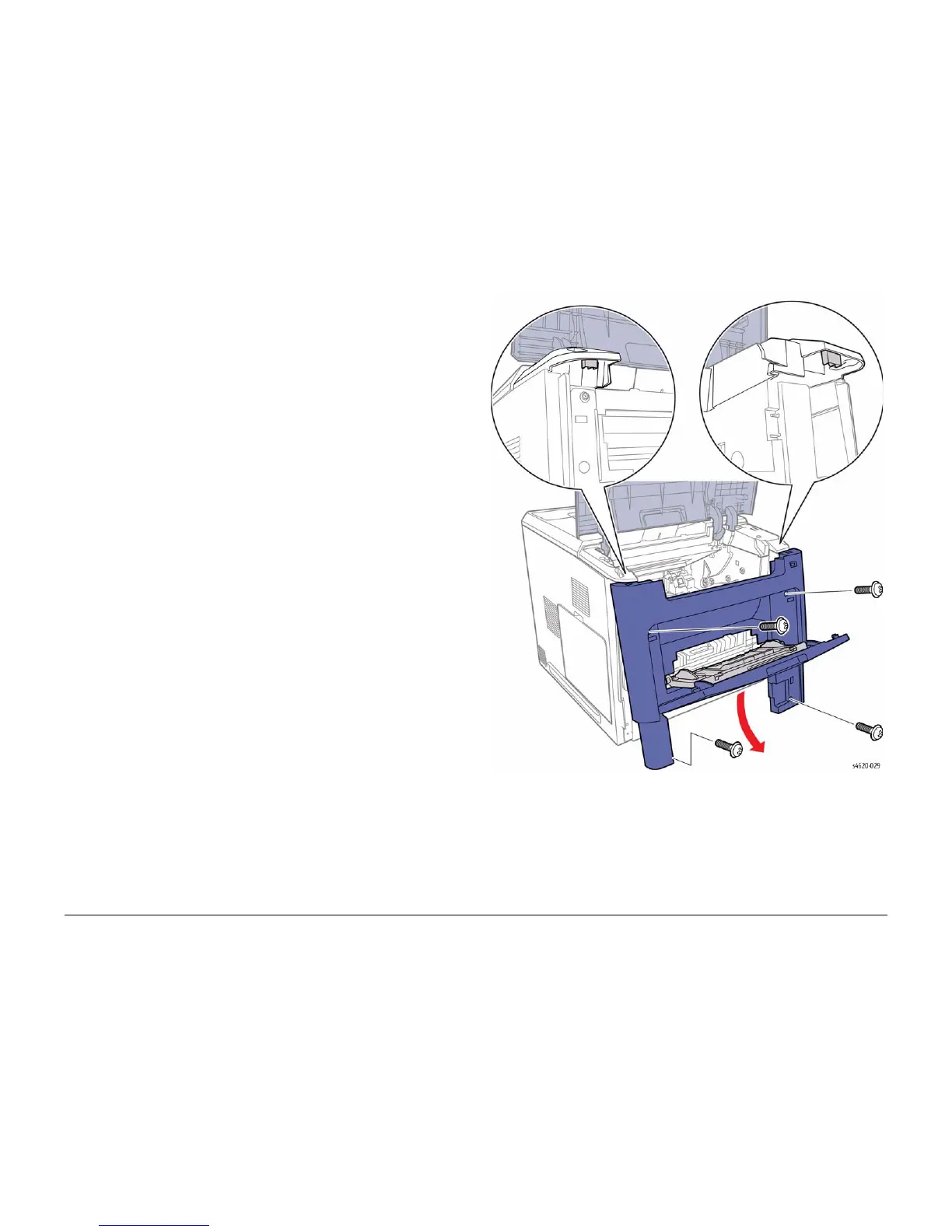

Figure 1 Remove the Front Cover
