Phaser 4600/4620 Printer Service Manual
REP 4.4
Repairs
Revision - Xerox Internal Use Only
REP 4.4 Feed Drive Assembly
Parts List on PL 4.10 Item 6
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the Duplex Unit, REP 10.1.
2. Remove the IP Board Cover, REP 28.1.
3. Remove the Right Cover, REP 28.2.
4. Remove the MCU Board, REP 3.4.
5. Remove the Registration Clutch, REP 4.3.
6. Remove the Feed Clutch, REP 4.2.
7. Disconnect P/J53 from the Feed Drive Assembly.
8. Remove 5 screws (Gold, metal) that secure the Feed Drive Assembly.

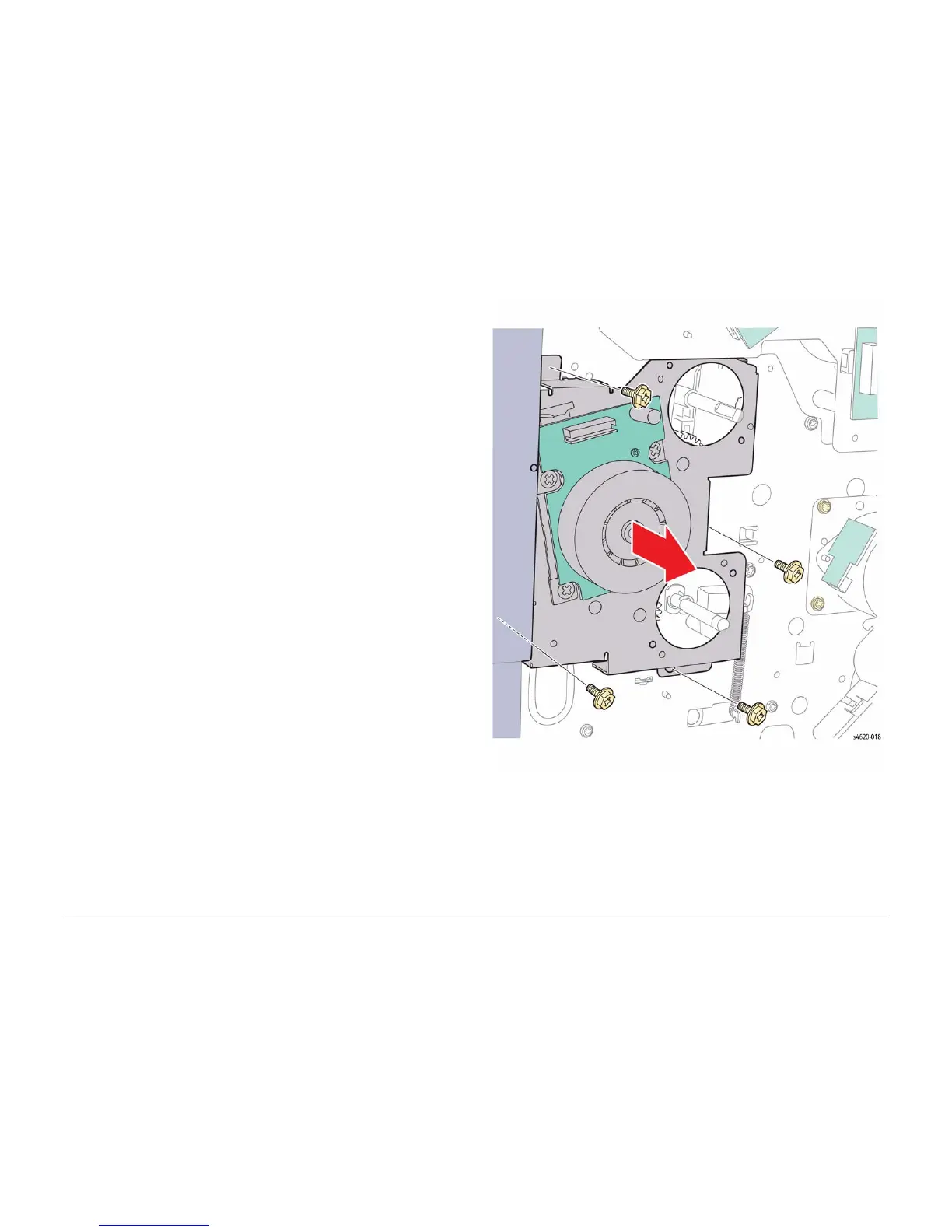

Figure 1 Remove the Feed Drive Assembly
