5/2011
4-28
Phaser 4600/4620 Printer Service Manual
REP 7.3, REP 7.5
Revision - Xerox Internal Use Only
Repairs

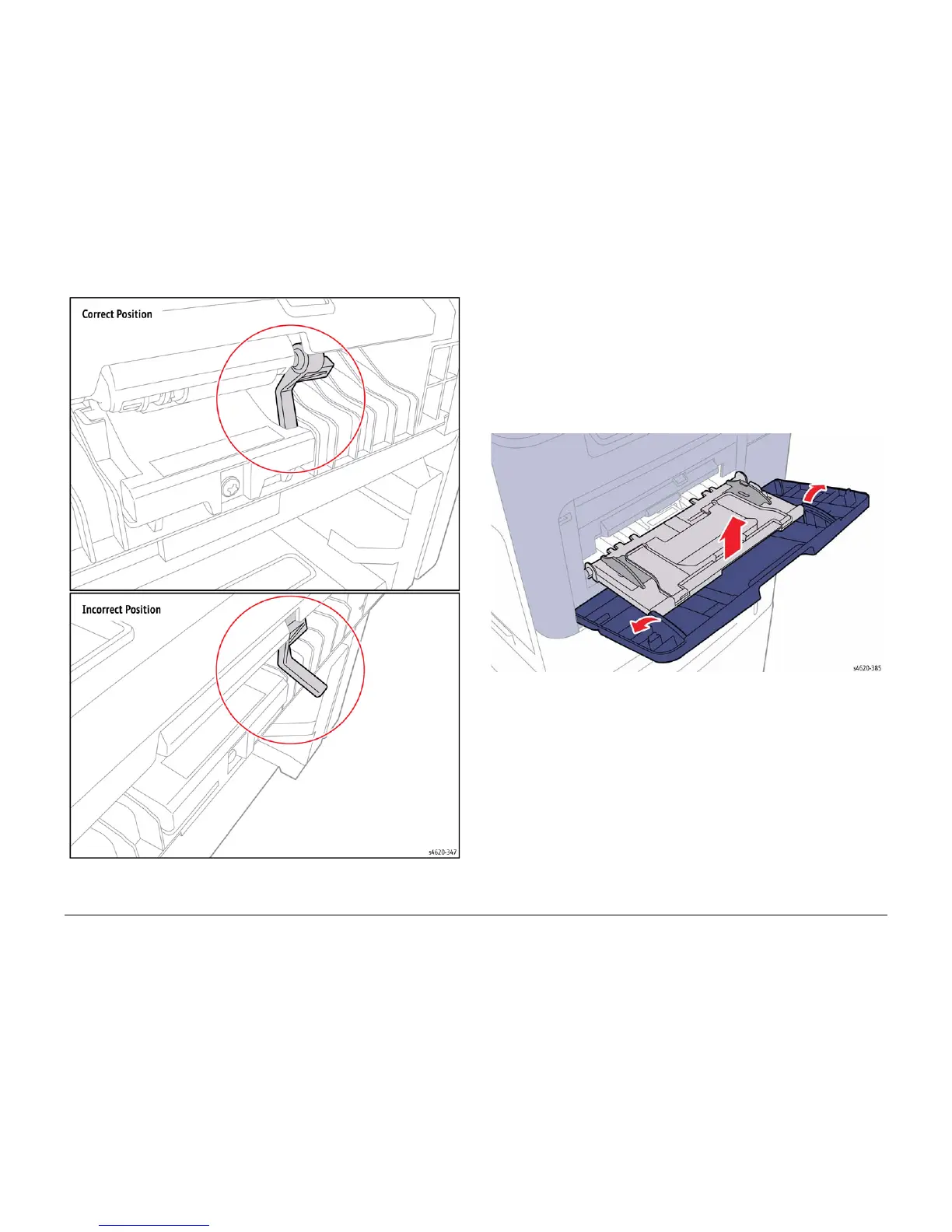

Figure 3 Tray 1 No Paper Sensor actuator position
REP 7.5 Tray 1 Separator Assembly
Parts List on PL 8.10 Item 4
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Open Tray 1.
2. Release the Tray 1 guide (PL 28.20 Item 4) pins from the Tray 1 cover, Figure 1.
Figure 1 Release the Tray 1 guide from the cover
3. Rotate the Tray 1 cover to horizontal to release the cover from the Front Cover, Figure 2.
To Next Page
