Xerox Phaser 4620 - PL 10.15 Upper Fuser Bracket Assembly

5/2011
5-27
Phaser 4600/4620 Printer Service Manual
PL 10.15
Parts Lists
Revision - Xerox Internal Use Only

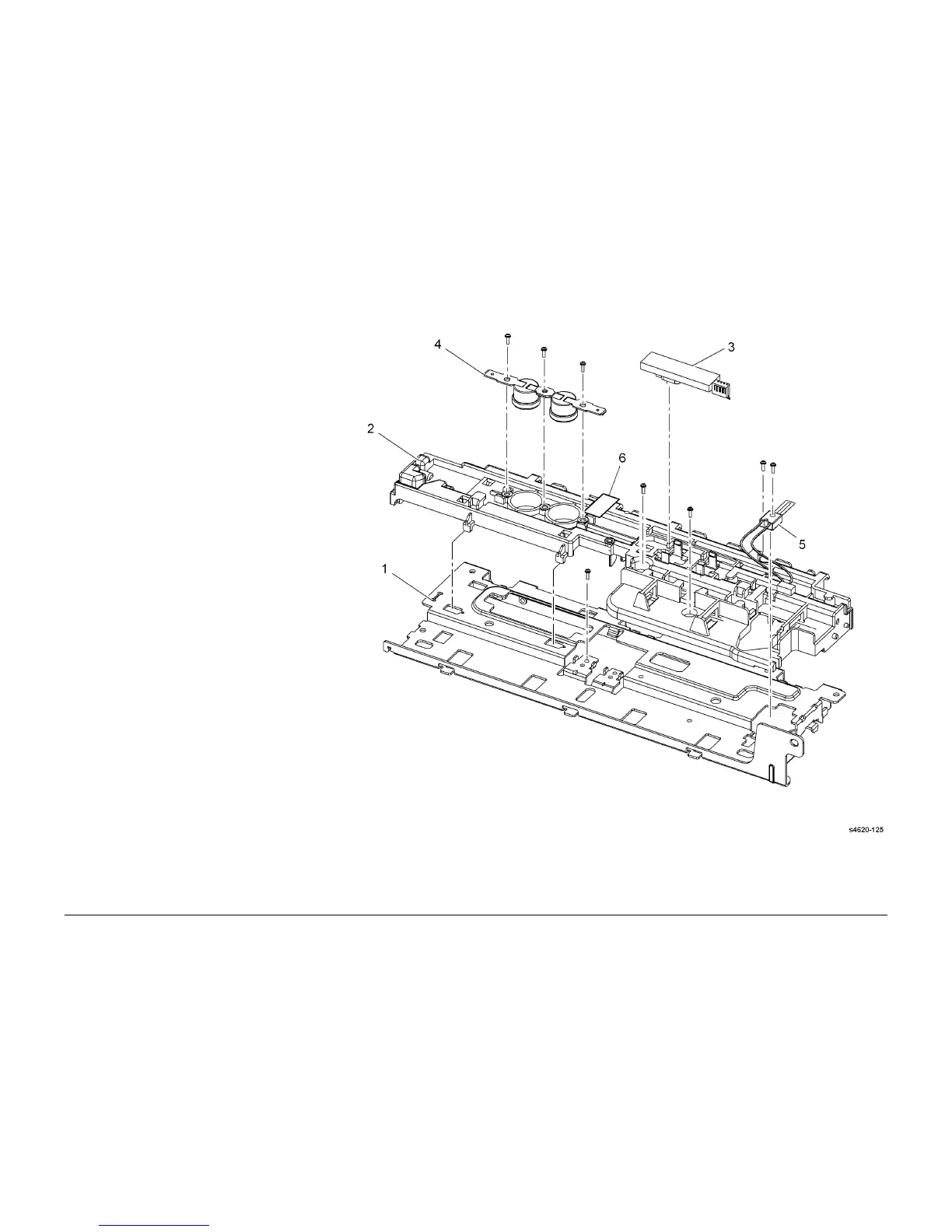

PL 10.15 Upper Fuser Bracket
Assembly
Item Part Description
1 – Upper bracket (Not Spared)
2 – Thermostat holder (Not Spared)
3 130N01531 Thermistor NTC (REP 10.11)
4 – Thermostat (Not Spared) (REP
10.12)
5 130N01615 Thermistor NTC (side)
6 130N01614 Thermistor NTC (center)
