5/2011
4-47
Phaser 4600/4620 Printer Service Manual
REP 7.32, REP 7.33
Repairs
Revision - Xerox Internal Use Only

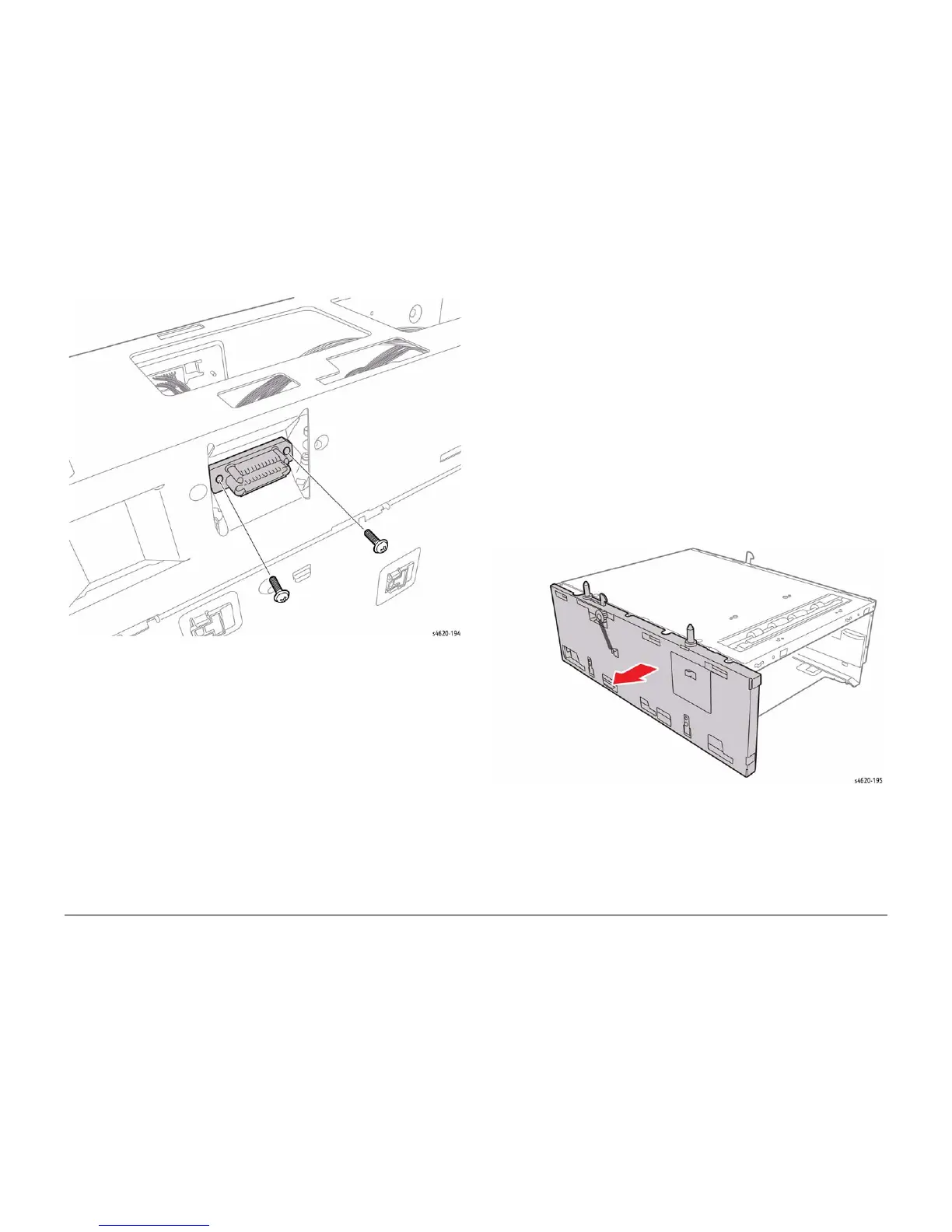

Figure 2 Remove the Upper Option Harness
REP 7.33 Left Side Frame
Parts List on PL 7.15 Item 2
Removal
WARNING
Use safe handling procedures when removing the module. Refer to GP 15. The module
is heavy.
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Separate the option feeder from the printer, GP 15.
2. Remove the Tray.
3. Remove the Front Cover, REP 7.24.
4. Remove the Right Cover, REP 7.25.
5. Remove the Rear Cover, REP 7.27.
6. Remove the safety latch spring.
7. Remove 7 screws (metal) that secure the left side frame to the chassis, Figure 1.
Figure 1 Remove the left side frame
To Next Page
