Xerox Phaser 4620 - PL 12.15 Finisher Control Board

5/2011
5-39
Phaser 4600/4620 Printer Service Manual
PL 12.15
Parts Lists
Revision - Xerox Internal Use Only

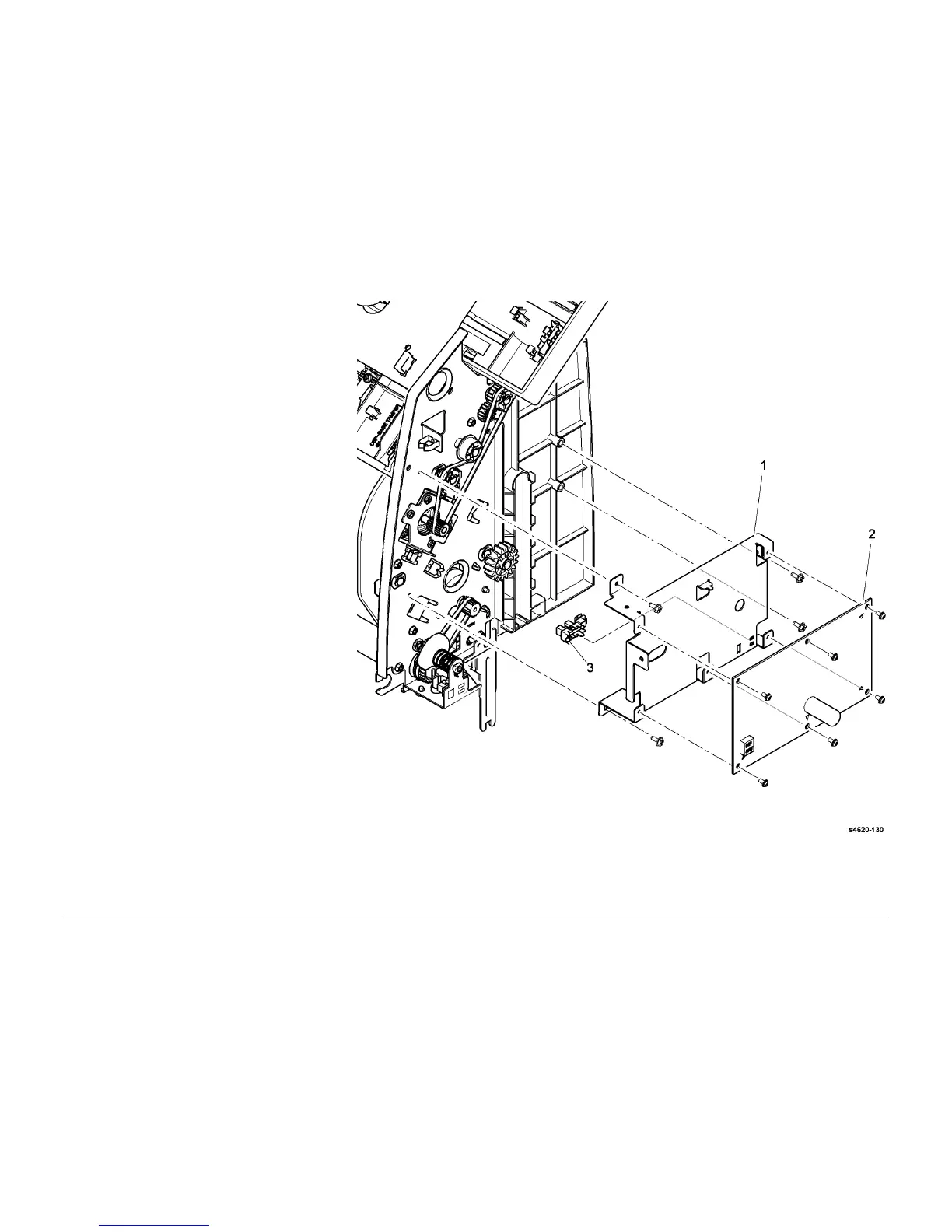

PL 12.15 Finisher Control Board
Item Part Description
1 – Control board bracket (Not Spared)
(REP 12.3)
2 140N63471 Control board (REP 12.2)
3 – Stacker full sensor (Q12-845) (Not
Spared) (REP 12.3)
