Xerox Phaser 4620 User Manual

5/2011
5-29
Phaser 4600/4620 Printer Service Manual
PL 10.25
Parts Lists
Revision - Xerox Internal Use Only

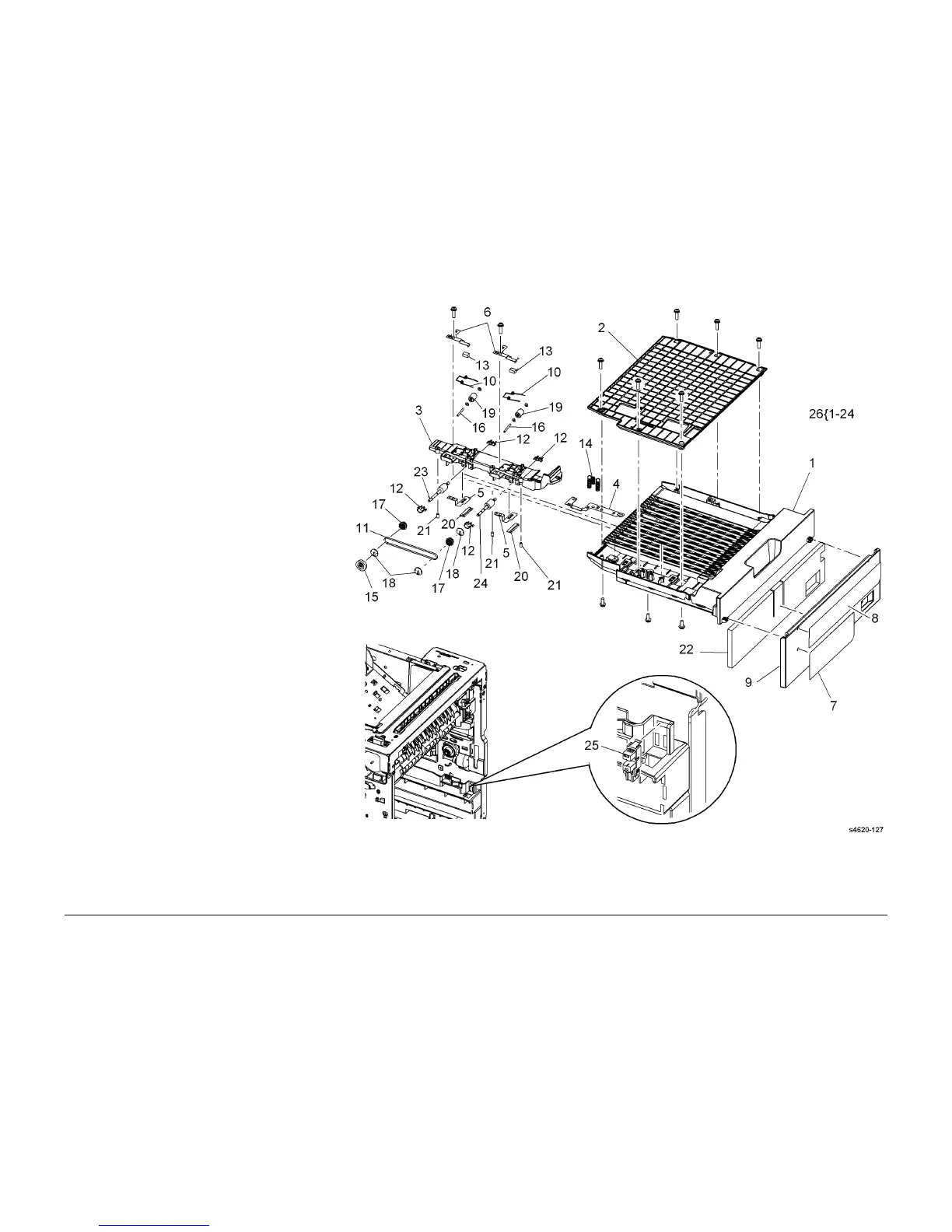

PL 10.25 Duplex Unit Assembly
Item Part Description
1 – Duplex lower frame (P/O PL 10.25
Item 26)
2 – Duplex upper frame (P/O PL 10.25
Item 26)
3 – Duplex align guide (P/O PL 10.25
Item 26)
4 – Bottom duplex ground (P/O PL
10.25 Item 26)
5 – Duplex feed brush ground (P/O PL
10.25 Item 26)
6 – Duplex gasket ground (P/O PL
10.25 Item 26)
7 – PTT label (P/O PL 10.25 Item 26)
8 – Information label (P/O PL 10.25
Item 26)
9 – Cassette cover (P/O PL 10.25 Item
26)
10 – Tension spring (P/O PL 10.25 Item
18)
11 023N01051 Timing belt (REP 10.19)
12 – M-feed bush (P/O PL 10.25 Item
26)
13 – Conductive gasket (P/O PL 10.25
Item 26)
14 – P terminal ground (P/O PL 10.25
Item 26)
15 – Exit F gear (P/O PL 10.25 Item 26)
16 – Idle roll shaft (P/O PL 10.25 Item
26)
17 – Pulley-18 (P/O PL 10.25 Item 26)
18 – Pulley-M-18-dummy (P/O PL 10.25
Item 26)
19 – Idle roller (P/O PL 10.25 Item 26)
20 – Static eliminator (P/O PL 10.25 Item
26)
21 – Paper guide stud (P/O PL 10.25
Item 26)
22 – Sponge cover (P/O PL 10.25 Item
26)
23 – ELA unit roller 1 (P/O PL 10.25 Item
26)
24 – ELA unit roller 2 (P/O PL 10.25 Item
26)
25 130N01628 Duplex unit detect sensor (REP
10.18)
26 022N02484 Duplex unit assembly (REP 10.1)

Xerox Phaser 4620 Specifications

General

Operating temperature (T-T)	50 - 90 °F
Operating relative humidity (H-H)	20 - 80 %
Color	No
I/O ports	10/100/1000 BaseT Ethernet, USB 2.0
Depth (min)	541 mm
Height (min)	420 mm
Minimum width	476 mm
Minimum weight	34.6 kg
Package length	698.49 mm
Print technology	Laser printing
Mac compatibility	Yes
Security features	Audit log, HTTPS, Image overwrite security, IP filtering, IPSec, Network authentication, SNMPv3, 802.1x
Storage drive type	Optional
Print memory (standard)	256 MB
Power consumption (active)	900 W
Minimum storage drive space	160 GB
Power consumption (standby)	93 W
Power consumption (PowerSave)	10 W
Storage media	HDD
Maximum internal memory	768 MB
Sound power level (standby)	39 dB
PCL fonts	93
Certification	Class 1 Laser Product, CE Marked, EMC Directive 89/336/EEC, EN 55022 Class B, EN 55024, FCC Part 15, Class B, Low Voltage Directive 73/23/EEC, RoHS Directive 2002/95/EC
Country of origin	China
Maximum duty cycle	275000 pages per month
Number of PostScript fonts	136
Number of print cartridges	1
Total input capacity	550 sheets
Total output capacity	500 sheets
Maximum input capacity	2000 sheets
Multi-Purpose tray input capacity	100 sheets
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	7.8 s
Print speed (black, normal quality, A4/US Letter)	65 ppm
Display	LCD
Package weight	40200 g
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Card stock, Labels, Pre-Printed, Recycled paper, Transparencies
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Export Control Classification Number (ECCN)	EAR99

Weight and Dimensions

Width	627.37 mm
Height	685.79 mm
Dimensions (WxDxH)	476 x 420 x 541 mm
