Xerox Phaser 4620 - PL 11.35 Mailbox Actuator Shield Assembly

5/2011
5-36
Phaser 4600/4620 Printer Service Manual
PL 11.35
Revision - Xerox Internal Use Only
Parts Lists

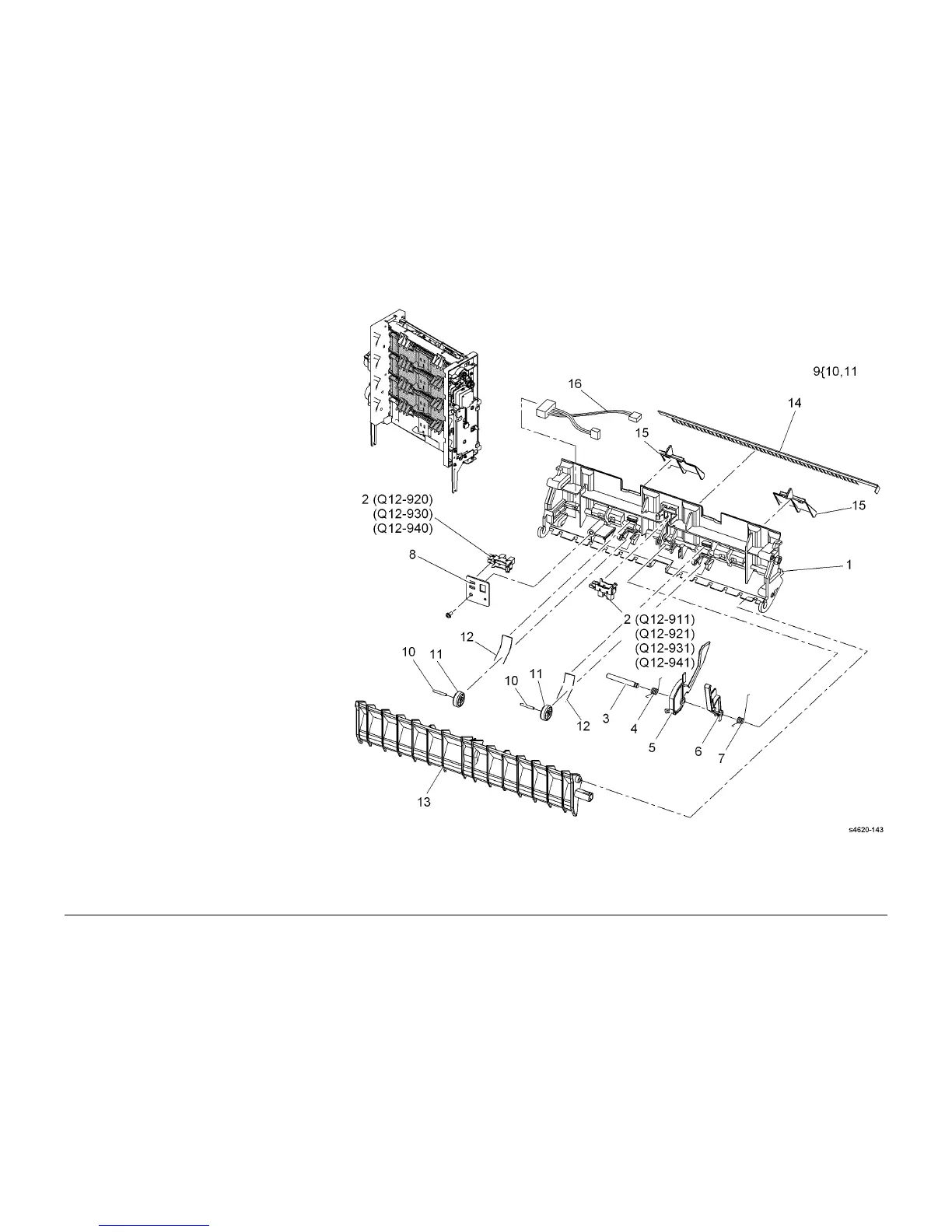

PL 11.35 Mailbox Actuator Shield
Assembly
Item Part Description
1 – Stacker shield (Not Spared)
2 – Tray 1 stacker empty sensor (Q12-
911), Tray 2 stacker empty sensor
(Q12-921), Tray 3 stacker empty
sensor (Q12-931), Tray 4 stacker
empty sensor (Q12-941)/Tray 2
stacker full sensor (Q12-920), Tray
3 stacker full sensor (Q12-930),
Tray 4 stacker full sensor (Q12-
940) (Not Spared)
3 – Actuator shaft (Not Spared)
4 – Spring (Not Spared)
5 – Stacker empty actuator (Not
Spared)
6 – Exit feed actuator (Not Spared)
7 – Spring (Not Spared)
8 – Stacker sensor bracket (Not
Spared)
9 – Idle feed roll assembly (Not Spared)
10 – Idle feed shaft (Not Spared)
11 – Idle feed roll (Not Spared)
12 – Spring guide (Not Spared)
13 – Feed guide (Not Spared)
14 – Static eliminator (Not Spared)
15 – Stacker full actuator (Not Spared)
16 – Harness (Not Spared)
