Phaser 4600/4620 Printer Service Manual
Printer Options
Introduction
Revision - Xerox Internal Use Only
Printer Options
Phaser 4600/4620 options include:
• Additional Memory (512 MB)
• Hard Disk
• Wireless network adaptor
• Printer stand
• 520-sheet Feeder
• 2000-sheet Feeder with casters
• Finisher with stapler, 500-sheet stacker.
• Mailbox, 4-bin, 400-sheets
Table 1 lists both Service and Sales part numbers for available options and accessories.
Hard Disk Drive
The Phaser 4600/4620 supports an internal 160 GB Hard Disk Drive mounted to the IP Board.
Features enabled by Hard Drive installation include:
• Secure Print
•Proof Print
• Save Print
• Disk Collation
Additional Memory
The Phaser 4600/4620 IP Board includes 1 slot for a 512 MB DDR2 DIMM, Figure 1. Memory
must meet these characteristics:
• 200 Pin DDR2 SODIMM
• Unbuffered, Non-parity
The printer’s Configuration page lists the amount of RAM installed in the printer.

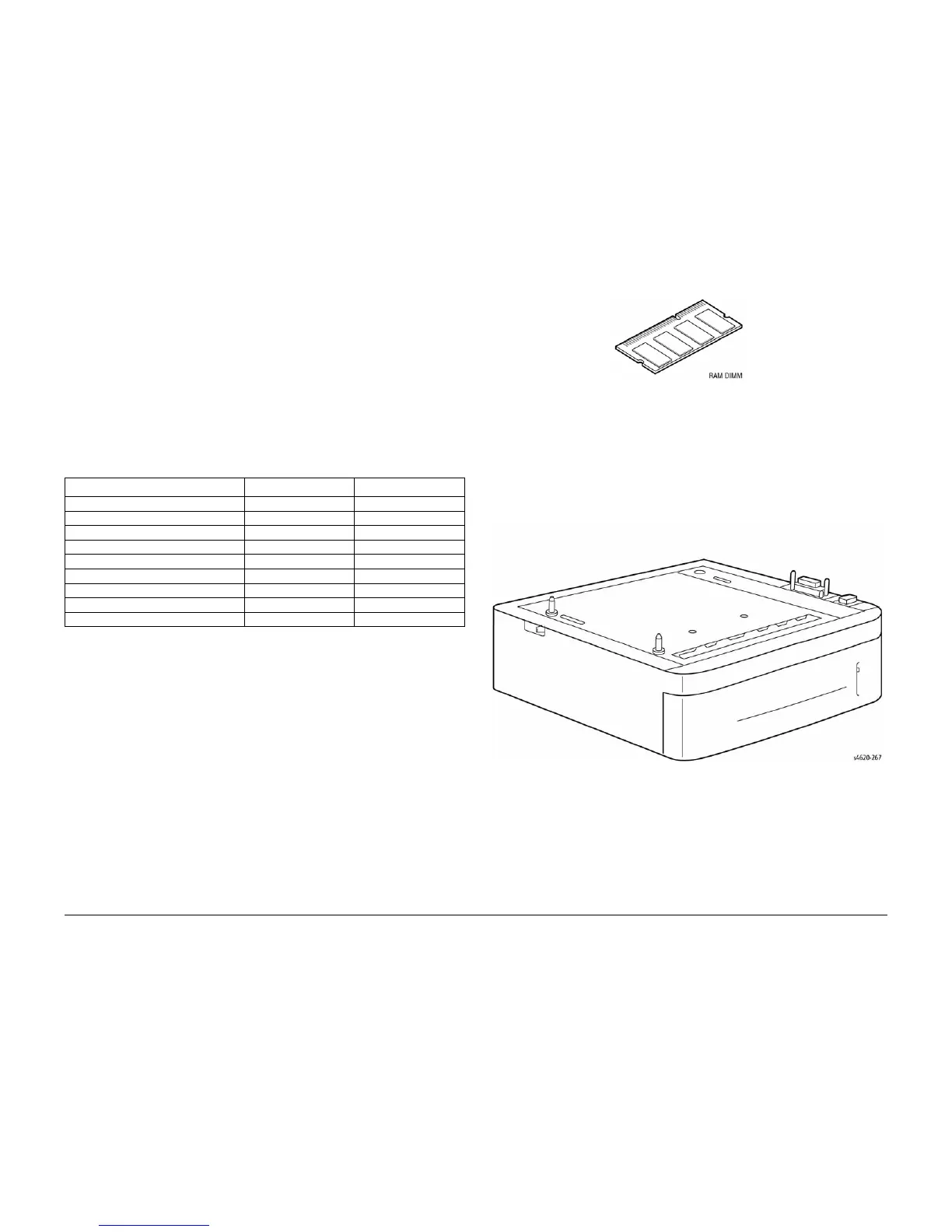

Figure 1 Optional memory
520-Sheet Feeder
The 520-sheet Feeder increases the input capacity of the printer and is attached to the printer
underneath Tray 2. These additional tray combinations are supported:
• One 520-Sheet Feeder (Tray 3)
• Up to 4, 520-Sheet Feeders (Trays 3, 4, 5, and 6)
Figure 2 520-Sheet Feeder
Table 1 Option and Accessory Part Numbers
Item Service Part Number Sales Part Number
520-Sheet Feeder 050K74180 097N01874
2000-Sheet Feeder 059K77920 097N01875
Finisher (500-sheet) 059K77910 097N01876
Mailbox (400-sheet) 050K74190 097N01877
Duplex Unit 022N02484 097N01923
Memory Upgrade 128K01770 097N01878
160MB Hard Disk 007N01651 097N01879
Wireless Network Adaptor 120K03640 097N01880
Stand 078K00870 097N01916

Xerox Phaser 4620 Specifications

General

Operating temperature (T-T)	50 - 90 °F
Operating relative humidity (H-H)	20 - 80 %
Color	No
I/O ports	10/100/1000 BaseT Ethernet, USB 2.0
Depth (min)	541 mm
Height (min)	420 mm
Minimum width	476 mm
Minimum weight	34.6 kg
Package length	698.49 mm
Print technology	Laser printing
Mac compatibility	Yes
Security features	Audit log, HTTPS, Image overwrite security, IP filtering, IPSec, Network authentication, SNMPv3, 802.1x
Storage drive type	Optional
Print memory (standard)	256 MB
Power consumption (active)	900 W
Minimum storage drive space	160 GB
Power consumption (standby)	93 W
Power consumption (PowerSave)	10 W
Storage media	HDD
Maximum internal memory	768 MB
Sound power level (standby)	39 dB
PCL fonts	93
Certification	Class 1 Laser Product, CE Marked, EMC Directive 89/336/EEC, EN 55022 Class B, EN 55024, FCC Part 15, Class B, Low Voltage Directive 73/23/EEC, RoHS Directive 2002/95/EC
Country of origin	China
Maximum duty cycle	275000 pages per month
Number of PostScript fonts	136
Number of print cartridges	1
Total input capacity	550 sheets
Total output capacity	500 sheets
Maximum input capacity	2000 sheets
Multi-Purpose tray input capacity	100 sheets
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	7.8 s
Print speed (black, normal quality, A4/US Letter)	65 ppm
Display	LCD
Package weight	40200 g
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Card stock, Labels, Pre-Printed, Recycled paper, Transparencies
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Export Control Classification Number (ECCN)	EAR99

Weight and Dimensions

Width	627.37 mm
Height	685.79 mm
Dimensions (WxDxH)	476 x 420 x 541 mm
