Phaser 4600/4620 Printer Service Manual
IQS 4, IQS 5
Image Quality
Revision - Xerox Internal Use Only
IQS 4 Transparencies
NOTE: Customer must use standard Transparency media (A4, Letter) designed exclusively for
Xerox 3R9023. Separate each page after printing.
Specifications
Refer to Table 1.
IQS 5 Image Area
Specifications

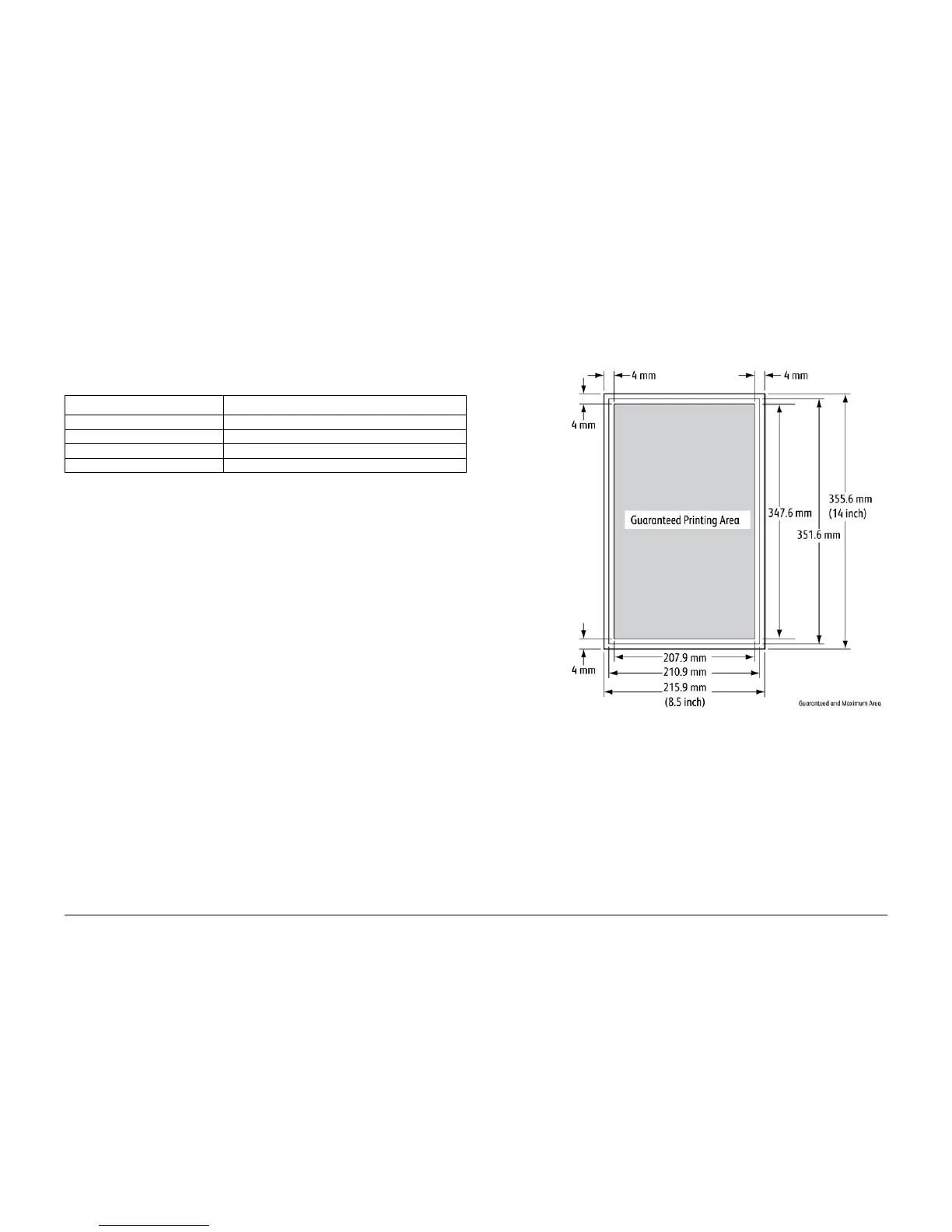

Refer to Figure 1.
Figure 1 Image area specifications
Table 1 Registration measurement
Registration Specification
Shearing Angle +/- 4 degrees
Thickness 0.114 +/- 0.01mm
Weight 138~146g/m2
Curl +/- 5 mm
