Phaser 4600/4620 Printer Service Manual
PL 8.35
Revision - Xerox Internal Use Only
Parts Lists

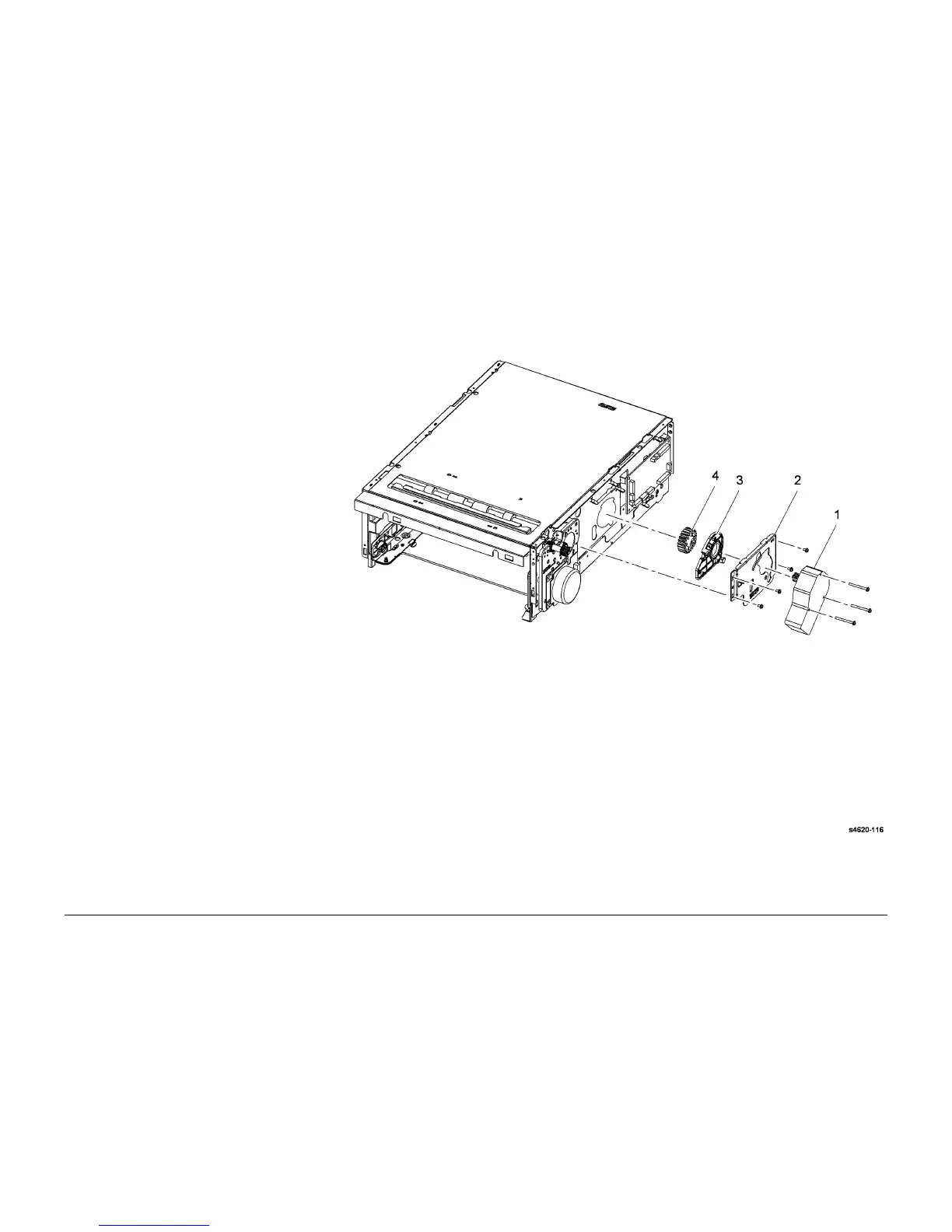

PL 8.35 Optional Feeder Lift
Assembly
Item Part Description
1 120N00537 Lift motor (REP 7.29) (see NOTE)
2 – Lift motor bracket (Not Spared)
3 – Swing housing (Not Spared)
4 – Lift gear (Not Spared)
NOTE: The component control codes are dependent on the
machine configuration.
